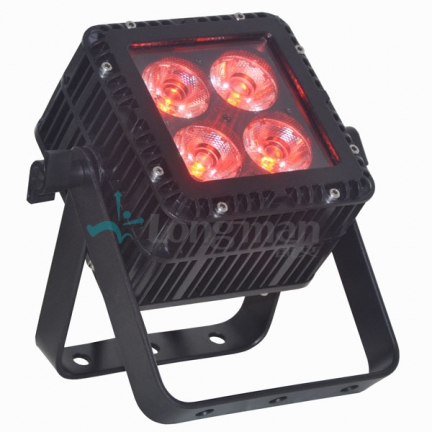

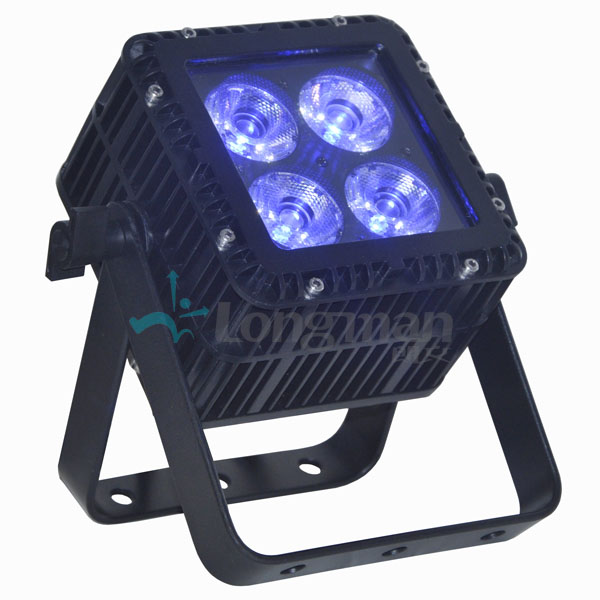

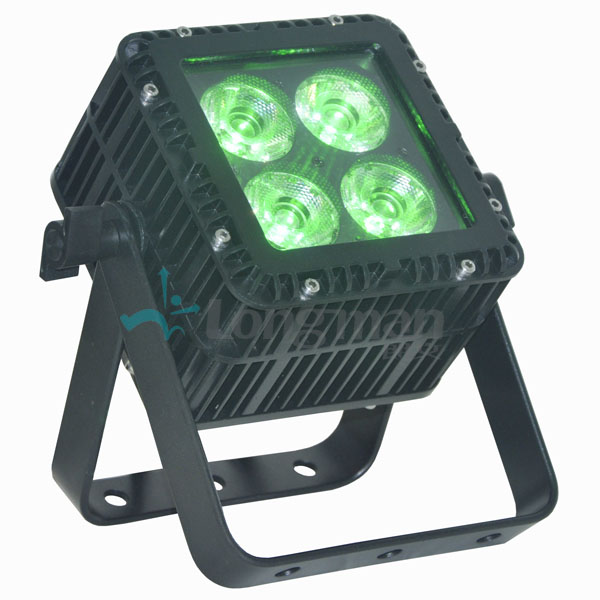

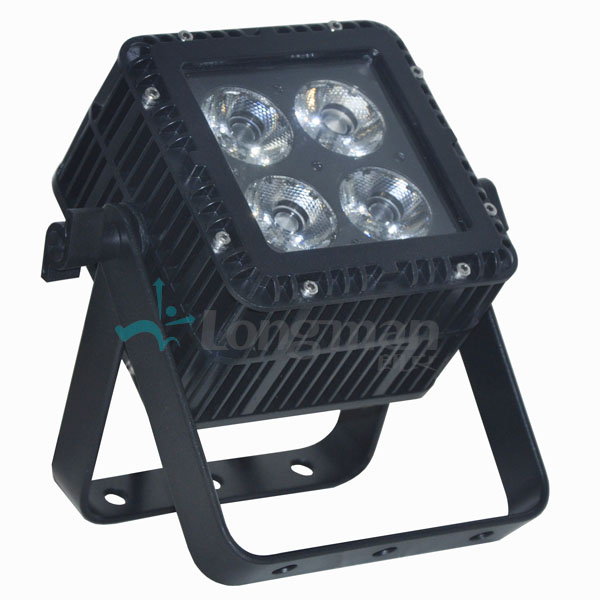

Eden Quad4 -narrow beam outdoor led par lighting

Brief description：
1. 4 PCS 15W Ostar FULL RGBW LED bulbs
2. 1920 lumens output
3. Field angle (10% intensity) 19 degree standard, even color mixing
4. Square appearance
5， led beam wash, narrow beam 8 degree

Size: 219*137*212 mm
Weight: 2.6KG

Inquiry

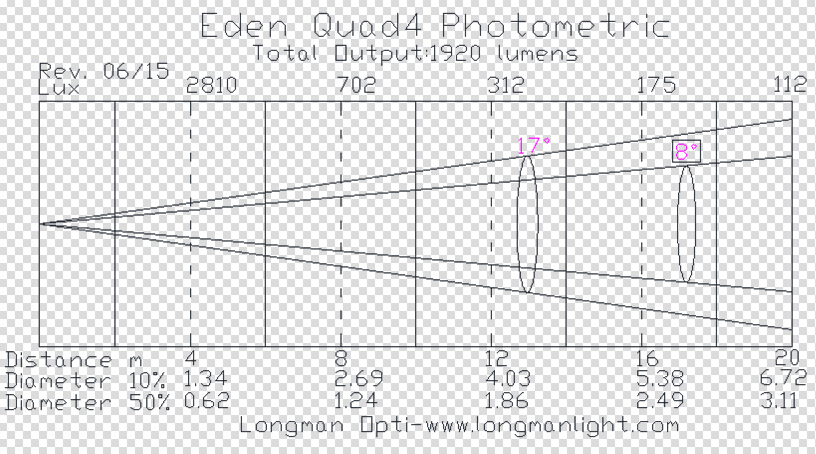

Specification Photometric User's document

Features:
narrow beam outdoor led par lighting， led beam wash light

Full load output could reach to 2000 lumens.
Field angle (10% intensity) standard 19 degree, even color mixing.
Square looking, support barn doors.
Whole housing of lamp can conduct heat, support heat sink 40W at 35℃ rise, built-in NTC protection.

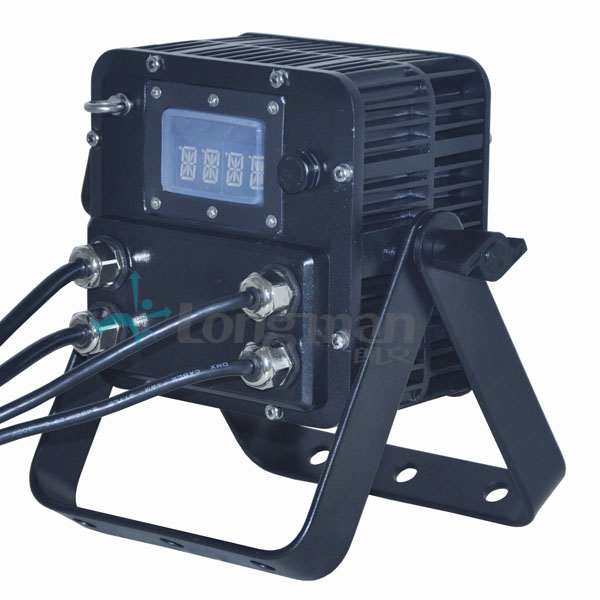

LED Display board shows DMX signal, offer dimming curve square law Dim4
Waterproof air valve for balancing inside and outside pressure, do not produce moisture on glass.

Specification:

Input Voltage	AC 100-240VAC, 47-63 Hz
Output Voltage	24V DC, power factor>0.7
Rated Power	50W, typical consumption 44.6W/220V
Light Source	4 PCS 15W Ostar FULL RGBW LED. Drive current for each chip 1A, total light output 1920 lumens, luminaire efficiency 43lm/W
Peak Intensity	35505 Cd (10%field angle 19 Degree)
LED Color	R=625nm, G=525nm, B=465nm, White=6000K
Color Rendering Index(CRI)	Pure White Ra>90, R9>50
Color Mixing Index	Standard deviation of chromaticity SDC<0.005
Control Signal	Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit precise dimming, smooth in low DMX value dimming, no vision shock
Channels	3CH, 4CH, 5CH, 8CH, 9CH
Display	Touch operation, LED display show DMX signal status and turn off when no operation
Dimming	with Dim0-Dim4, 5 dimming curves, smooth dimming
PWM Frequency	>1.5KHz, flash rate endurance full Load>12Hz, full load/void load flash
Beam Angles	9°, 15°, 18°, 45*15°, etc
Housing Material	Die cast aluminum, protection rate IP66
Cooling Method	Natural cooling
Thermal Protection	NTC overheat protection
Connectors and Cables	IP67 Male/Female connectors
Accessories	Barn door, Hook, safety cable, signal extension cable, power extension cable
Housing Color	Standard matte black, could customized with pumpkin color.
Soldering Technology	180℃ reflow soldering, 15000 hours life for SMPS and main board
Size	219137212 mm
Net Weight	2.6 Kg
Operating Temperature	-20℃ - +55℃
Certificates	CE, Rohs
