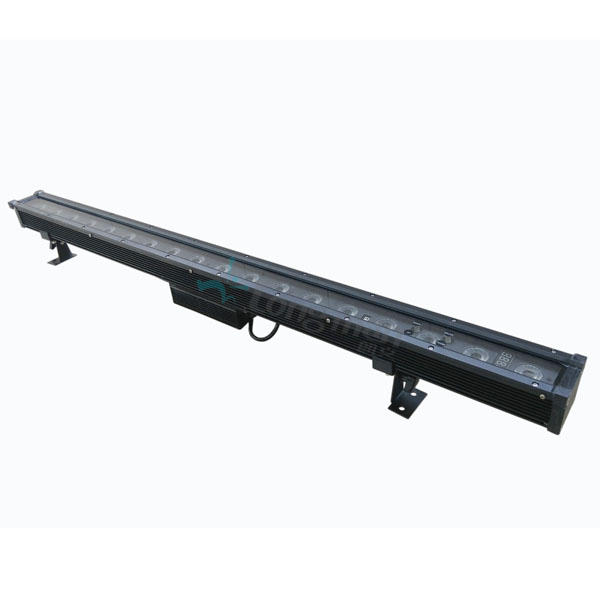

Excelsior 184FRGBW waterproof LED wall washer lighting

Excelsior 184FRGBW waterproof LED wall washer lighting

Brief description:
1.18pcs4W FULL RGBW LED
2.3228 Lumens output
3.Touch LED display,no easy broken buttons
4.With IR remote controller for easy use

Size and Weight: 1001*69*119mm /4.1KG

Inquiry
Features:
1. With IR remote controller for easy use
2. Recommend matchable SMPS,could also use Other DC input especially near fountain area Etc.
3. RGBW Color mixing to achieve even color and tunable white.
4. Well accommodate to stage use, with strobe, fade, color scroll, edit color and programming
5. 3228Lumens Output, output 90% Lumens within 10% Intensity.
6. Glass surface to accomodate display board,less water leakage risk.
7. Touch LED display, no easy broken buttons, 2 minutes no operation no display
8. LED Display board to shows DMX condiction, assure an easier cable testing.
9. Innner Glass surface is processed as condensation-free, also with waterproof air valve to balance pressure.
10. Use SMT and low temperature reflow soldering tech to make sure heat conduct and heat sink.



Specifications:
Voltage input Standard DC24V, comprehensive 21.6-25.2V
Iutput Power SMPS or Battery, Flash Rate Endurance>12Hz Full/void load
Rated power 80W(Typ.66.2W@24V)
Luminaire Efficiency 18pcs4W FULL RGBW 350mA Driving, Full on 3228Lumens, Effiacy >43.9lm/W
Color Eveness Performance Class, Standard deviation of Chromaticity SDC<0.005, Ra>90,R9>50
LED Color Red625nm,Green525nm,Blue460nm,White6000K
Field Angle(10%) Standard 30°, max intensity 26470Cd Full on, 42°,56°Available
Control signal Meet E1.11 - 2004 USITT DMX512-A/IR/could set and programm Color and beam angle on display board
Control Habit Variable Channel options,32 bit dimming, smooth in low DMX Value dimming, no vision shock
Dimming Curve Dim0-4 Curve optional, PWM>1500Hz, video flicker free
Display Touch operation, LED display show DMX situation and aotu turn off when no operation
Housing material AL6063 For Lampbody, ADC12 for Sidecover,standard Matte balck, could customized matt silver
Cooling Method Natural Heasink, Thermal protection:NTC overheat protection
Soukect IP67 Power connector 2C*1.5mm2 Male cable(VDE, CCC Etc), Signal with IP65 3XLR daisy chain
Soldering technology 180℃Reflow Soldering
Accessories DC Female adpator Cable as stadard, T type DC branch, frosted piece, Hook, Safty Cable available
Operate temperature -20~+55℃,Light board peak temperature 80℃
Safty Class III for electricity, Flame Rating V-1, Protect Rated IP65
Cerficated Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750

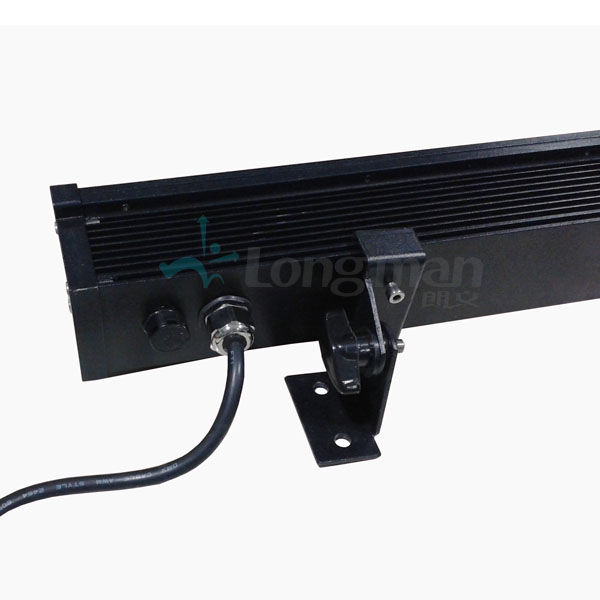

Weight 4.1 KG,with 2mm thick double bracket
Size L*W*H=1001*69*119mm(Vertical shine up)
