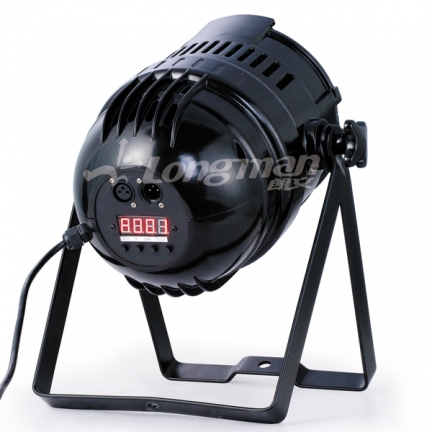

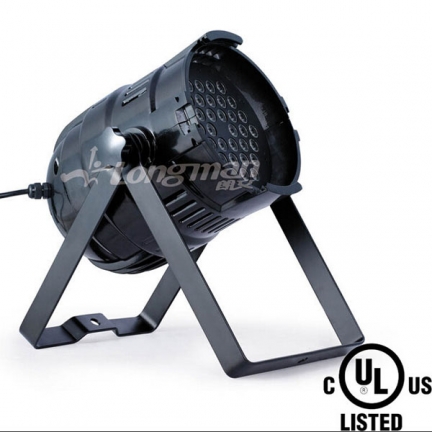

F 300- led indoor par light

Brief description:
1.36pcs3W FULL RGB LED
2.5140Lumens Output
3.New die cast model, similar size as traditional Par 64
4.Patent new lamp body is design to support heat sink

Net Weight: 4.7Kg
Size: 30*32*39CM

Inquiry
Picture&Video Specification Photometric Download

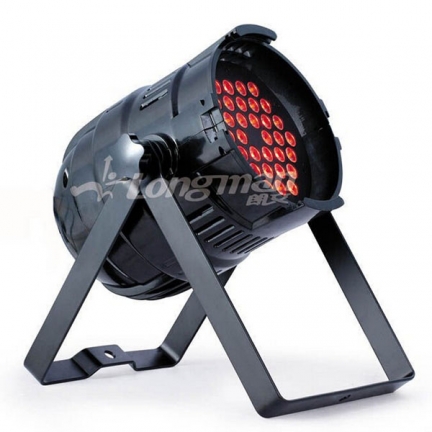

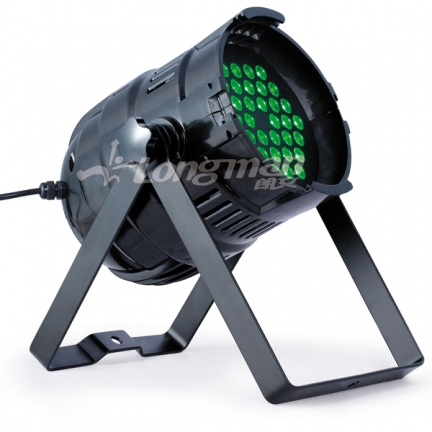

F300 LED indoor par lights effect
Features:

1.Structure: New die cast model, similar size as traditional Par 64, more stronger, good for rental application; Patent new lamp body is design to support heat sink, with better ventilation, no fans cooling, no noise!  Could customize white/ Black housing.
2.Optic Design: Good color saturation and brightness, R=625nm 340lm, G=525nm 480lm,  B=452nm 150lm, strict even color distribution, variegated aperture, white balance; Beam angle (10% intensity) 15 degree, 45 degree, Optional.
3.Electrical: AC 90~240V 47-63 Hz Input, 160 Watt max consumed, power factor 90%;
4.Control: DMX 6Channel as standard, Dimmer+RGB+Strobe+Macro; PWM driving, Frequency>7.8K Hz
5.More than 35000 Hours Longevity for SMPS and Main board.

Specifications:

Voltage input AC 90-240V 47-63Hz
Max power consumption 130W
PF 0.9
Light source 36pcs*3W FULL RGB LED, R=625nm, G=525nm, B=450nm,good saturation
Dimming F300UDMX for DMX Dimming, 9 Channel,with Dim0-Dim4 5 dimming curve More than 15000 Hours Longevity for SMPS
Light Output 5140 Lumens;
Life span 50 000 -100 000 hours
Beam Angle 15°、25°、45°、60° optional
Control signal DMX512
Control mode auto run/sound active/master slave/DMX
Channel 6CH
PWM Frequency >7.8KHz, flicker free
Cooling method Natural cooling
Net Weight 4.7Kg
Size 30x32x39CM
IP Rate IP 20



F300 lighting photometric graph
> F 300-FA18 Download
