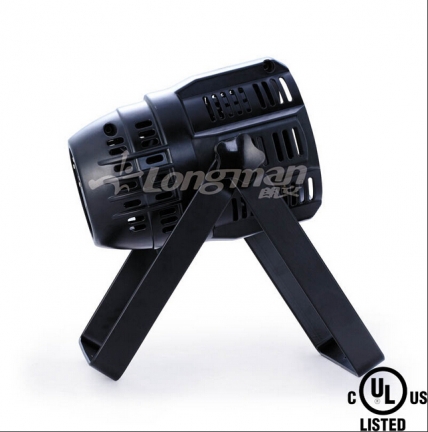

F resun 200B-led par stage lighting

Features:
1.Patent New die cast Lamp body, same size as traditional Par 56, direct heatsink, true silent, could customized white Lambody.
2.4000Lumens Output with multi-CCT to acheive Metal hilide light Rendering, 90% Lumens within 10% Intensity field angle.
3.New Full CCT Capsulation LED, Popular application in stage, studio room, concert, business exhibition and all rental projects.

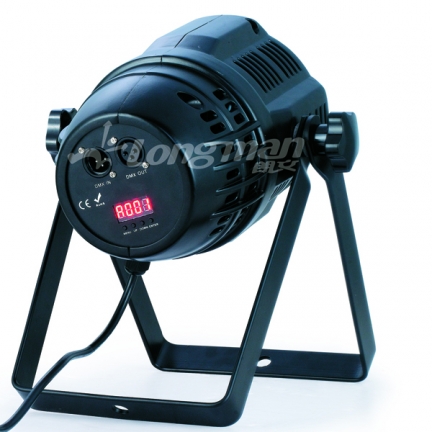

4.DMX512 signal control, 4 buttons address setting with LED screen.
5.Dim 4 Square law dimming for 0-100%, video flicker free, with strobe/gradual change/color change inbuilt programs;
6.Independent circuit driving, each 550mA，even ampere distribute.
7.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
8.Field Angle standard 30°，could choose other angle, and also frosted piece and 60*1° third optical piece.


---

Specification:

Voltage input	AC 90-240V 47-63Hz，PF>0.9
Volatage Output	24V, SMPS longevity 15000Hours
Rated Power	62W（@220V 50Hz）
Luminaire Efficiency	>0.9, Light Effiacy >66lm/W
Light source	12pcs*5W Full ACW LED，Amber 860lm, Cool white 1720lm, Warm white 1380lm, ACW mixing 4000lm
LED CCT	Amber=590nm, C=8000K.W=3300K, Offer multi-CCT conbination 1700-6500K, SDC<0.005, ACW=3010K, Ra>95
LED Life Span	50 000 – 100 000 hours
Beam Angle	standard 30 °（12000Cd/Klm）、45°、60°、60*1°Etc optional
Control signal	DMX512，32 bit Dim 4 square law dimming, PWM>400Hz, smooth dimming, no vision shock flicker free
Control mode	DMX1990/DMX512A/stand alone/master and slave
Channel	3/4/5/6/8 CH all inside menu
Housing material	Die cast aluminum ADC12，standard Matte balck, customized glossy White painting, barndoor available
Safty	Class II, 3C 1.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP20
Operate temperature	-20~+45℃，Light board peak temperature 80℃
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Net Weight	3.5Kg，with double yokes 3mm thick supporting bracket
Size	27*23*29CM
IP Rate	IP 20
