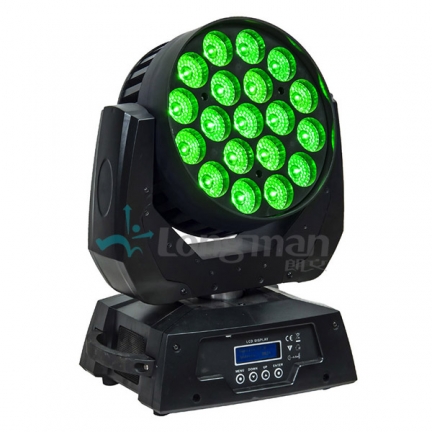

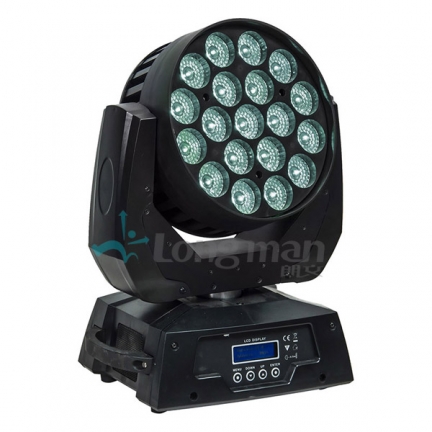

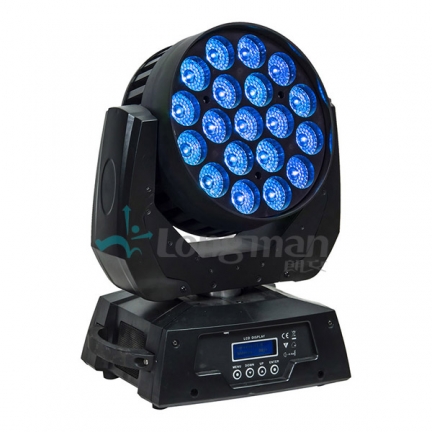

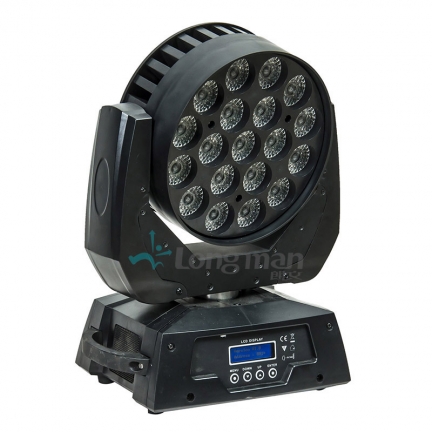

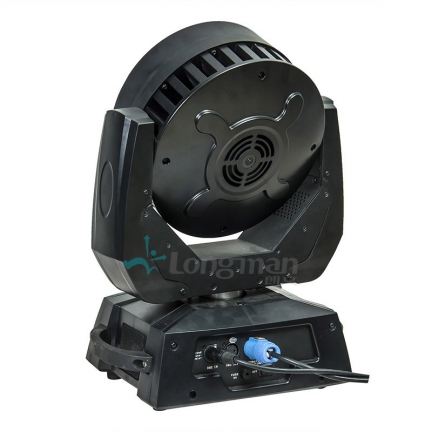

Pointy 600 ZOOM LED Zoom Moving Head Light

Brief description：
1. 19pcs 15W OSRAM RGBW 4-IN-1 LED
2. 3 pixel control
3. 8 to 62 degree zoom, strong beam
4. Lens imported from France

Size:320*254*398 mm
Weight: 15kg

Main Function:

Use high quality LED lighting source, low power consumption, high brightness, stable performance and long life.
Use the 32-bit ARM for dimming, with a 0-16666 class of PWM output and dimming frequencies up to 1.5K Hz.
Linear dimming from 0%-100%, with effects like strobe, gradual change, jumping change and so on.
DMX512 controller, 4 button set DMX ID address with LCD display.
Auto-run/ sound activated/ master and slave/ interconnected multi-units control.
Using power switch to protect the LED from overwhelming.
Pan is 540 degrees, tilt is 220 degrees, reset function.
Focusing angle varies from 8 to 52 degree.
DMX channels include 19CH, 23CH.
Five kinds of dimming modes, Dimmer1~4, turn off when not using. Dimming smooth without flicker from Dimmer1 to Dimmer4, smoothness from weak to strong respectively.

Specification:

Input Voltage	AC100V-240V/47-63HZ
Output Voltage	DC 24V
Consumption	320W
Lamp Spec	OSRAM RGBW 4-IN-1 LED (19pcs)
Constant Current Drive	1000mA (single color drive)
Refresh Rate	Above 600Hz
Life Span	Over 50000 hours
Control Signal	DMX512/sound activated/autorun
Control Mode	Stand alone, master and slaver
DMX Channels	23CH / 19CH
Function Effect	Dimmer, strobe, gradual change, sound activated
Pan 540 degree	Tilt 220 degree, reset
Pan fine and tilt fine	2.1 degree, 1.0 degree
Beam Angle	8º-52º
Color Effects	RGBW mixing
Protection Rating	IP20
Anti-electricity Intension	1.5KV
Insulation Resistance	> 2MΩ
Size	320254398 mm
Net Weight	15 Kg
