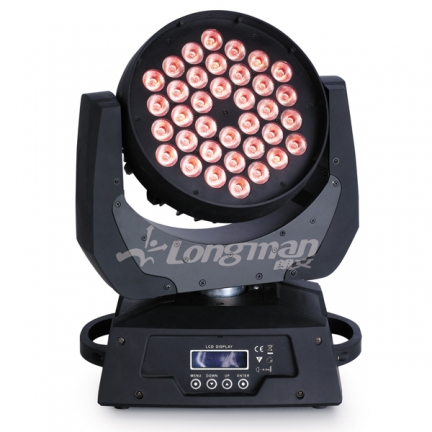

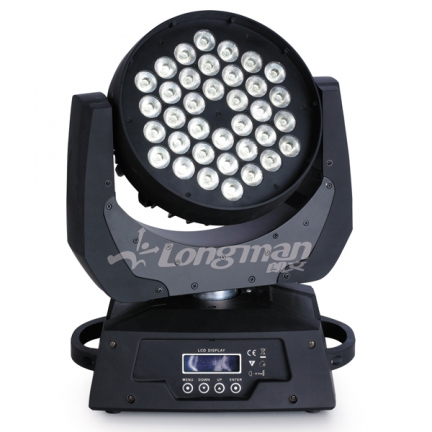

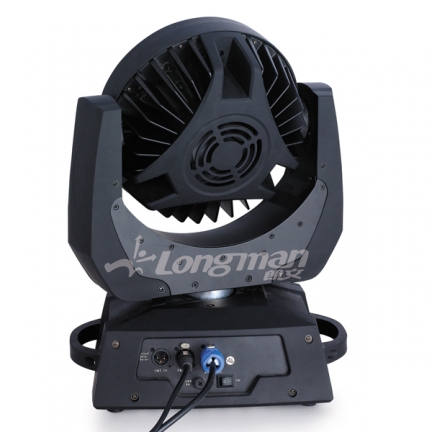

Brief description：
1. 36pcs 10W FULL RGBW LED
2. 13500 lumens output
3. High power light source, low consumption, high luminance, long life.
4. Linear dimming from 0-100%
Size: 320*242*385 mm
Weight: 9.5KG
| Voltage Input | AC 100V-240V/47-63HZ |
| Voltage Output | DC 24V |
| Max Power Consumption | 360(W) |
| Light Source | 36pcs 10W FULL RGBW LED, R=625nm, G=525nm, B=450nm, good saturation, White=6500K, Ra>85, perfect color rendering |
| Light Output | 13500 lumens |
| LED Drive Current | 500mA (single color drive) |
| Dimming Frequency | >400Hz |
| Life Time | >50000 hrs |
| Control Signal | DMX512, sound active, auto-run |
| Control Mode | Stand alone, master and slave |
| Channel | 14CH, 10CH |
| Colors | RGBW color mixing |
| Effects | dimming, strobe, gradual, sound active |
| Pan | 540°, tilt:270°, automatic correction |
| Pan Fine Tuning | 2.1°, tilt fine tuning:1.0° |
| Cooling Method | Air cooling |
| Beam Angle | 15°, 25°, 45° |
| Anti-electricity Strength | 1.5KV |
| Insulated Resistance | >2MΩ |
| Size | 320*242*385 mm |
| Weight | 9.5 Kg |
