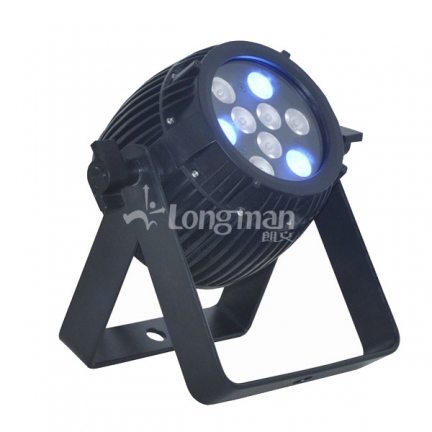

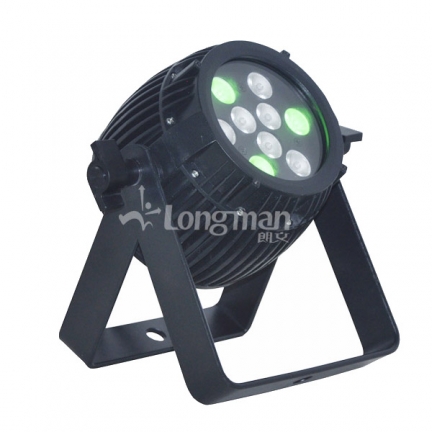

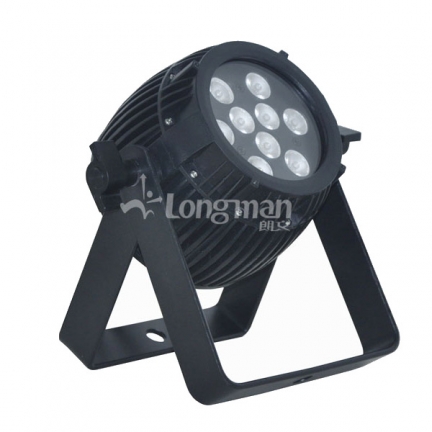

Bowerbird X9 Outdoor LED Par Lighting

Brief description：
1. 9PCS 3W RGB 700mA LED bulbs
2. Almost 1000 colorful lumens output, various light distributions
3. Appearance design patent, idea originated from Bowerbird, express the beauty of nature.

Size: 103*181*207 mm
Weight: 1KG, with 2 mm thick double bracket

Inquiry

Share This Products:

Specification Photometric Parts&Packaging Download

Features:

Appearance design idea originated from bowerbird, express the beauty of our nature.
Nearly 1000 colorful lumens outputs, various light distribution options.
Good color mixing, SDC<0.005, stable color among all fixtures.
Whole housing can conduct heat, support heat sink 30W at 30℃ rise, with NTC thermistor inside.
LED display could show DMX signal status, the screen will be turned off if no operations after 2 minutes.
5 dimming curve including Dim4 theatre standard strict smooth dimming.
With waterproof air valve to balance pressure, get rid of moisture on glass.

Specification:

Voltage Input	AC220V 47-63Hz, power factor > 0.95, could be customized for DC24V
Rated Power	30W (23W 220V full load)
Luminaire Efficiency	41lm/W, 9PCS 3W RGB 700mA driving current LED bulbs, 920 lumens
LED Color	R=625nm, G=525nm, B=450nm, offer multiple color mixing, SDC<0.005
Field Angle(10%)	standard 30 °(10800Cd on axis), 8°, 15°, 45°, 6119°, 7510°, 120*10°
Control Signal	Meet E1.11 - 2004 USITT DMX512-A standard, could be customized for constant voltage PWM dimming input
Dimming Curve	32 bit linear dimming, PWM>1500Hz, flicker free
Housing Material	ADC12 die cast, color is matte black, support other color and barn door.
Safety	Appliance Class III, 2 3*1mm VDE cable for input, shielded cable for signals, both are daisy chain, flammability rating UL 94 V-1, IP code IP65
Operate Temperature	-20~+45℃, light board peak temperature 30℃
Certificate	Product passes CE, RoHS.
Weight	1KG，with two 2mm thick bracket
Size	103181207 mm
