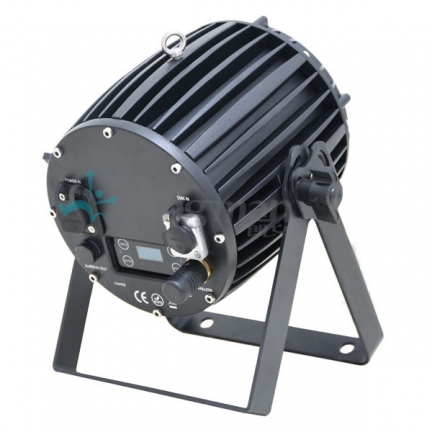

GEEK S600-Outdoor led zoom par lighting

Advantages:

Third generation optical desgin to mix SMS & TIR technology zooming
Wide zoom range, qualified for all stages rendering and rental service
Compatible with W-DMX and LM-DMXA1, choose on menu

---

Features:
GEEK S600-Outdoor led zoom par lighting
1. Round beam shape, even color mixing, SDC<0.01, Archteture rated.
2. Linear Mechanical Focus, 9-89 degree zoomable, widely zoomable angle available
3. Linear dimming for 0-100%, PWM>1500Hz, flicker free.
4. Worldwide AC input, with Same Powcon Yellow/Black soucket.
5. NTC function reduce the power output when LED working temperature is too high;

Specification:

Power input	AC 100-240V 47-63Hz, PF>0.9
Output	DC24V, longevity 15000Hours
Rated Power	60W(55.2@220V 50Hz)
Luminaire Efficiency	>0.8, Light Effiacy >29.2lm/WLED
LED Lumens	1PCS 60W RGBW LED, 4A driving, Full on Typ 1611Lumens(40Deg)
LED Color	R=625nm, G=525nm, B=460nm, W=6500K, good Color mixing, Standard Deveation of Chromaticity<0.005
Light Beam(10%)	9~89°mechanical zoomable, light beam shape between hexagon and round
Typical Intensity	9°(22565.0Cd), 89°(1128.2Cd)also beam between
Control signal	Meet E1.11 - 2004 USITT DMX512-A, Compatible with W-DMX and LM-DMXA1
DMX Chanel	Standard 9CH, HSI and other optional on menu
Zoom Moto	Designed with SMS &TIR technology, mechanical Linear zoom
Dimming	with linear dimming curves, PWM>1500Hz, video flicker free
Strobe ability	could be 0-20 F.P.S with asynchronous stroboscopic effect
Display	LCD turn off back light after 2 minutes no operation
Heat sink	neutrally and Light board is protected not higher than 65ºC
Housing material	ABS and QR235, standard Matte balck, with install bracket and fastdo screw
Soldering technology	180ºCReflow Soldering, 15000 hours Longevity for MCU mainboard, Moto board
Connectors	Same Powercon Yellow soucket, 3XLR Male Rated base
Safty	Class II, Endure 5ms 1.5KV shock, Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP65
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Size	234*183*250mm
Weight	3.3KG
Operating temperature	-20~+45ºC
