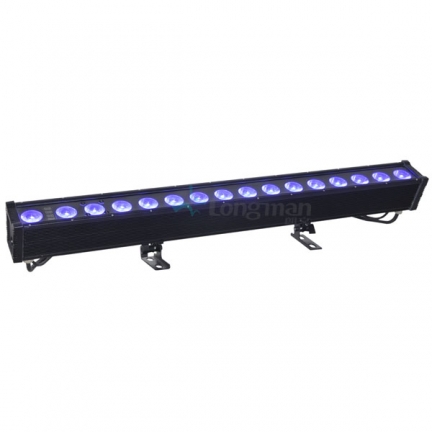

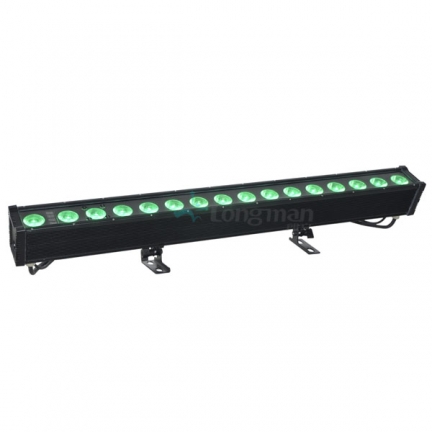

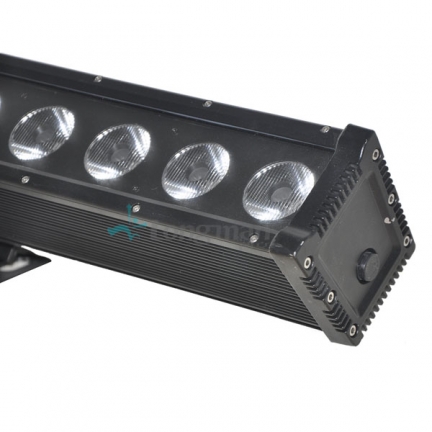

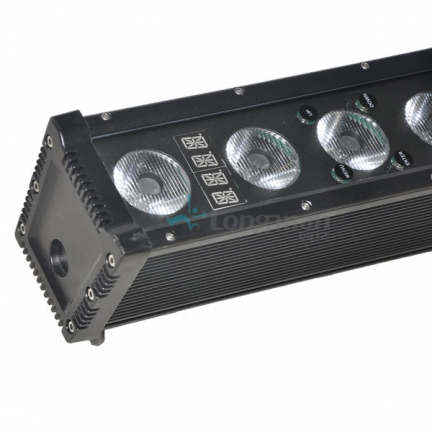

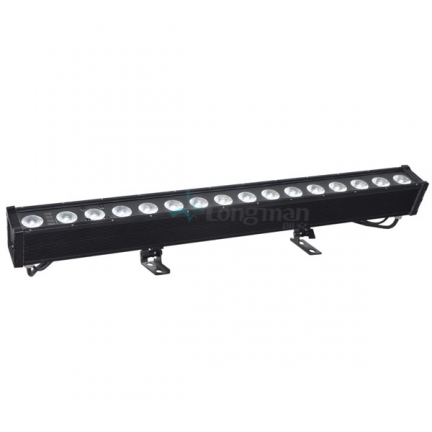

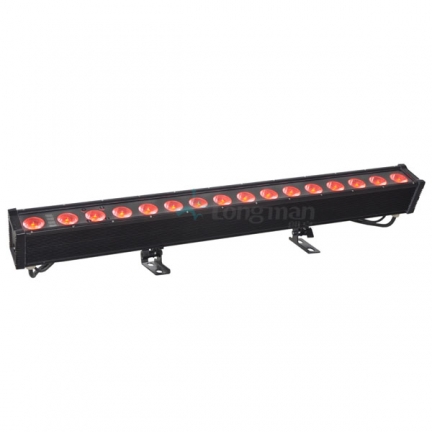

Brief description：
1.16pcs 15W RGBW LED
2.7670 Lumens output
3.Glass surface to accomodate display board，less water leakage risk
4.Touch LED display
Size and Weight: 999*95*184mm/6.5KG
| Voltage input | AC 90-240V 47-63Hz，PF>0.9 |
| Voltage output | DC24V，SMPS longevity 15000Hours |
| Rated power | 200W（Typ.175W@220V 50Hz），Flash Rate Endurance>12Hz Full/void load |
| Luminaire Efficiency | 16pcs 15W 1000mA Driving, Full on 7670Lumens, Effiacy >41.5lm/W |
| Color Eveness | Performance Class, Standard deviation of Chromaticity SDC<0.005, Ra>90，R9>50 |
| LED Color | Red625nm，Green525nm，Blue460nm，White6000K |
| Field Angle(10%) | 65X15°, max intensity 32243Cd Full on |
| Control Habit | Variable Channel options，32 bit dimming, smooth in low DMX Value dimming, no vision shock |
| Control mode | Meet E1.11 - 2004 USITT DMX512-A/Master could set Color and beam angle on display board |
| Dimming Curve | Dim0-4 Curve optional, PWM>1500Hz, video flicker free |
| Display | Touch operation, LED display show DMX situation and aotu turn off when no operation |
| Housing material | AL6063 For Lampbody, ADC12 for Sidecover，standard Matte balck, could customized matt silver |
| Cooling Method | Neutral Heatsink, Thermal protection：NTC overheat protection |
| Soukect | IP67 Power connector 3C*2.5mm2 cable(VDE, CCC Etc), Signal with IP65 3XLR, Both daisy chain |
| Soldering technology | 180℃Reflow Soldering, makesure 15000 hours Longevity for SMPS and mainboard |
| Accessories | Power adpator Cable as stadard, Frosted piece, Hook, Safty Cable available |
| Safty | Class II, Flame Rating V-1, Protect Rated IP65 |
| Operate temperature | -20~+55℃，Light board peak temperature 80℃, intelligent control |
| Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
| Weight | 6.5KG，with 180Deg. Rotatable supporting bracket |
| Size | L*W*H=999*95*184mm(Vertical shine up) |
