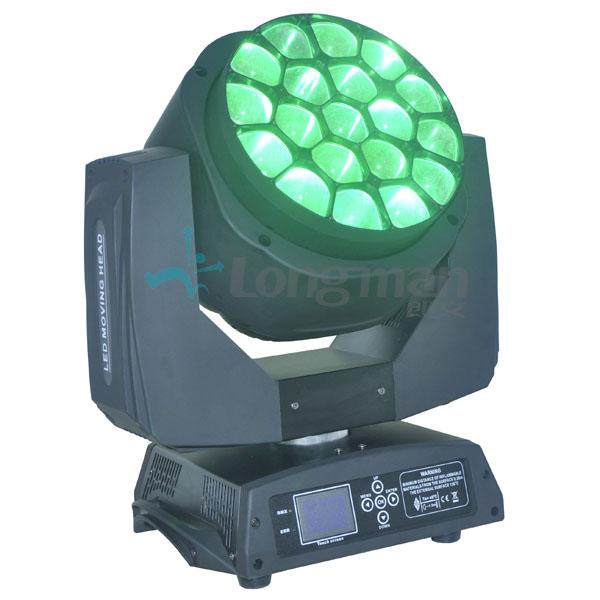

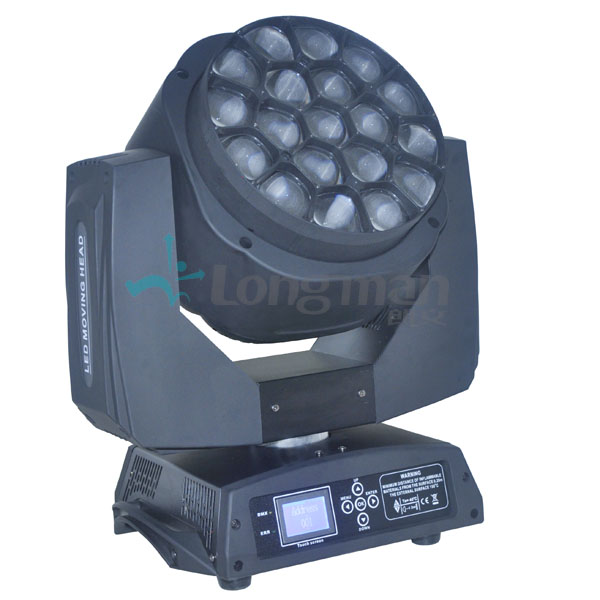

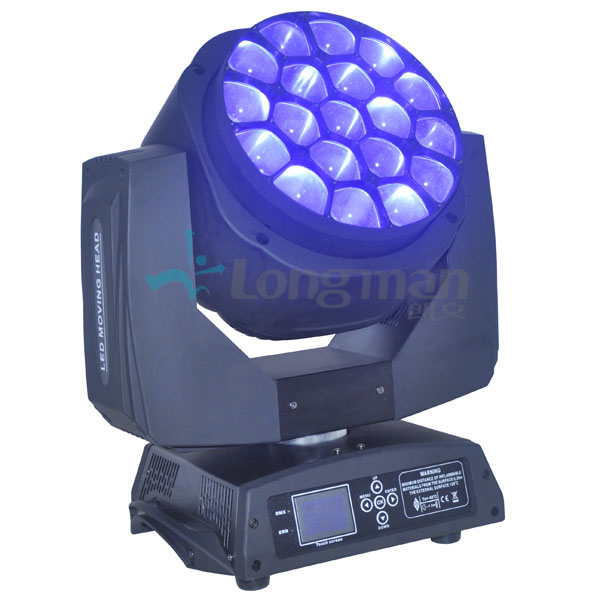

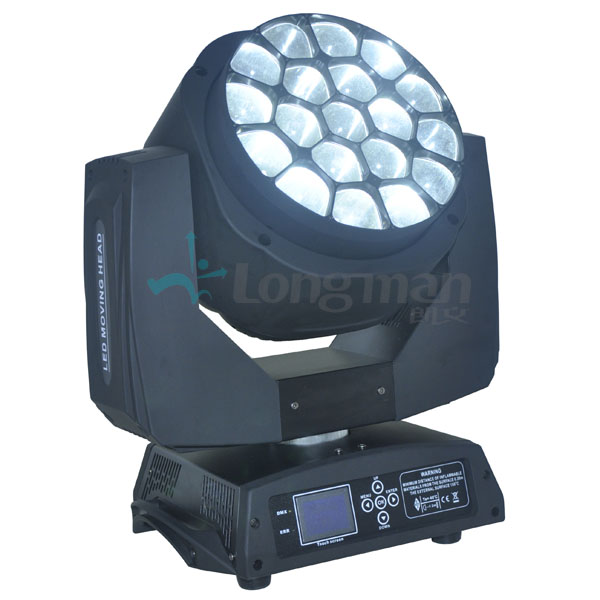

Lorentz Transform 19 LED Beam Eye Moving Head Light

Lorentz Transform 19 LED Beam Eye Moving Head Light (No: Lorentz Transform 19)

Brief description:
1. 19pcs 15W Ostar RGBW LED
2. Max 8980 lumens output
3. Third generation optical design

Packaging:Carton. if you want to pack by flight case, you can buy it additional
Size and Weight: 42*26*49 cm/15kg
Delivery time: within 15 days
List price:$729.00 Specials:$699.00
Quantity: - + (Stock:50pcs) Minimum Order:1pcs
Lorentz Transform 19 moving head light effect
Lorentz Transform 19 moving head stage effects

Features:
  • 19 pcs 15W Ostar RGBW LED.
  • Light beam shape is between hexagon and round, even color mixing,  SDC<0.005.
  • Linear mechanical focus, 8-56 degree zoom, could also be flower sharp beam.
  • Field angle 8 degree, 8660 Lux at 10 meter, wider zoomable angle available.
  • Linear dimming from 0-100%, PWM>1500Hz, flicker free.
  • LCD display could be set upside down for the convenience of hanging.
  • Worldwide AC input, with Powercon blue/white socket.
  • NTC function reduce the power output when LED working temperature is too high.
  • Reset precisely to right position, multiple fixtures' synchronous working is fine.
Specification:
Input Voltage AC 100-240V 47-63Hz, power factor>0.7
Output Voltage DC 24V
Rated Power 350W (316@220V 50Hz)
Luminaire Efficiency >0.7, luminaire efficacy >32.3 lm/W LED
LED Lumens 19pcs 15W Ostar LED, 1A driving, 19 pixels, full load 8980 lumens.
LED Color R=625nm, G=525nm, B=460nm, W=6500K, good color mixing, standard deviation of chromaticity<0.005.
Light Beam(1%) 8~56°mechanical zoomable, light beam shape between hexagon and round
Typical Intensity 8°(866053Cd), 30°(60570Cd), 56°(22790Cd)
Control Signal Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit precise dimming, smooth in low DMX value dimming, no vision shock
DMX Channels Standard 21CH, 35/78/92/97 are on menu as options.
XY Moto Pan 540°, pan fine 2.1/255, tilt 270°, tilt fine 1.0/255
Zoom Motor Designed with SMS technology and concaved lens, mechanical Linear zoom
Infinite Motor Blossom light effect depend on infinite rotate motor to have 19 pcs independent light beam.
Dimming Linear dimming curves, PWM>1500Hz, video flicker free
Strobe Ability Could be 0-20 F.P.S with asynchronous stroboscopic effect
Display LCD could be set upside down, turn off light after 2 minutes if no operations
Heat Sink Use fan fins to conduct and cool heat, low noise fans
Housing Material ABS and QR235, standard matte black, with brackets and screws.
Soldering Technology 180℃ reflow soldering, 15000 hours longevity for MCU motherboard and motor board

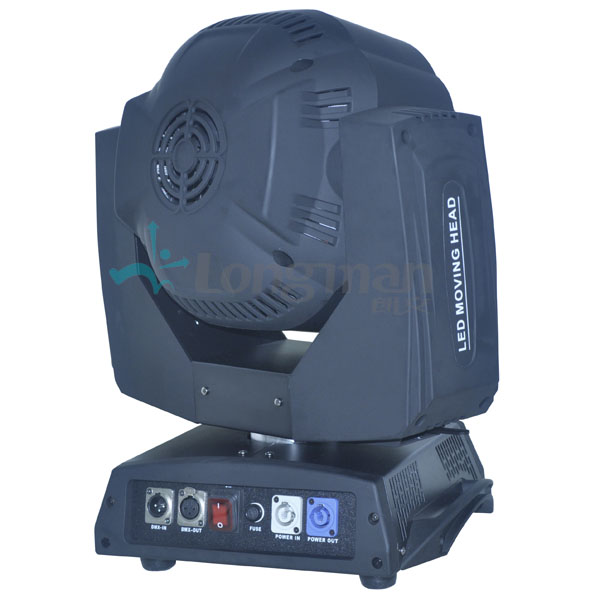

Connectors Powercon blue socket and 10A fuse, 3XLR/5XLR.
Safety Appliance Class II, endure 5ms 1.5KV shock, insulated resistance > 2MΩ flammability rating UL 94 V-1, protect rating IP20.
Operate Temperature -20~+45℃, light board peak temperature 80℃ with NTC protection
Certificate Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Size 42*26*49 cm
Weight 15KG
> Lorentz Transform 19 LED Beam Eye Moving Head Light-page download
