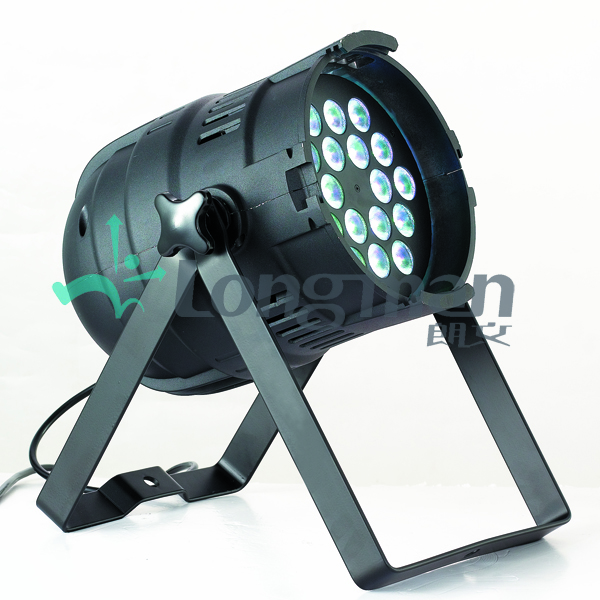

F500- led indoor par light

Brief description:
1.18pcs*10W FULL RGBW LED
2.6750Lumens Output
3.New die cast model, similar size as traditional Par 64
4.Patent new lamp body is design to support heat sink

Net Weight: 4.7Kg
Size: 30*32*39CM

Inquiry
Specification Photometric
Features:

1.Structure: New die cast model, similar size as traditional Par 64, more stronger, good for rental application; Patent new lamp body is design to support heat sink, with better ventilation, no fans cooling, no noise!  Could customize white/ Black housing.
2.Optic Design: Good color saturation and brightness, strict even color distribution, variegated aperture, white balance; Beam angle (10% intensity) 15 degree, 45 degree, Optional.
3.Electrical: AC 90~240V 47-63 Hz Input, 180 Watt max consumed, power factor 90%;
4.Control: DMX 3CH、4CH、5CH、8CH、9CH optional, buitd-in program, 32 bit linear dimming; PWM driving, Frequency>7.8K Hz
5.More than 35000 Hours Longevity for SMPS and Main board.

Specifications:

Voltage input AC 90-240V 47-63Hz
Max power consumption 180W
PF 0.9
Light source 18pcs*10W FULL RGBW LED, R=625nm, G=525nm, B=450nm,good saturation; White=6500K,Ra>85, Perfect color rendering
Light Output 6750 Lumens
Life span 50 000 -100 000 hours
Beam Angle 15°、25°、45°、60° optional
Control signal DMX512
Control mode auto run/sound active/master slave/DMX
Channel 3CH、4CH、5CH、8CH、9CH
PWM Frequency >7.8KHz, flicker free
Cooling method Natural cooling
Net Weight 4.7Kg
Size 30x32x39CM
IP Rate IP 20

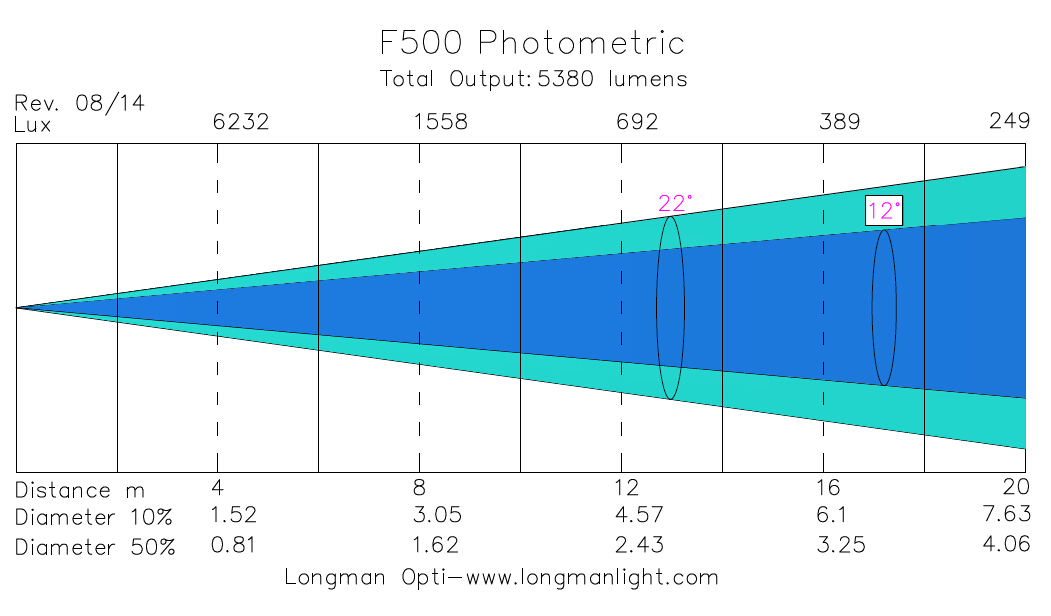

F500 indoor led par lights photometric graph
