Brief description：
1.12PCS 15W Ostar RGBW LED
2.5360Lumens output
3.light beam shape between hexagon and round
4.Wide zoom range,9~89° DMX zoom,qualified for all stages rendering and rental service
size: 351*189*349mm
weight: 11.3KG
| Power input | AC 100-240V 47-63Hz, PF>0.9 |
| Output | DC24V, longevity 15000Hours |
| Rated Power | 180W(171@220V 50Hz) |
| Luminaire Efficiency | >0.5, Light Effiacy >31.4lm/WLED |
| LED Lumens | 12PCS Ostar LED, 1A driving, Full on Typ 5360Lumens(40Deg) |
| LED Color | R=625nm, G=525nm, B=460nm, W=6500K, good Color mixing, Standard Deveation of Chromaticity<0.005 |
| Light Beam(10%) | 9~89°mechanical zoomable, light beam shape between hexagon and round |
| Typical Intensity | 9°(75040Cd), 89°(3752Cd)also beam between |
| DMX Channel | Standard 9CH, HSI and other optional on menu |
| Zoom Moto | Designed with SMS technology and concaved lens, mechanical Linear zoom |
| Control signal | Meet E1.11 - 2004 USITT DMX512-A, Compatible with W-DMX and LM-DMXA1 |
| Dimming Curve | with linear dimming curves, PWM>1500Hz, video flicker free |
| Display | LCD turn off back light after 2 minutes no operation |
| Housing material | ABS and QR235, standard Matte balck, with install bracket and fastdo screw |
| Strobe ability | could be 0-20 F.P.S with asynchronous stroboscopic effect |
| Heat sink | neutrally and Light board is protected not higher than 65ºC |
| Housing material | ABS and QR235, standard Matte balck, with install bracket and fastdo screw |
| Soldering technology | 180ºCReflow Soldering, 15000 hours Longevity for MCU mainboard, Moto board |

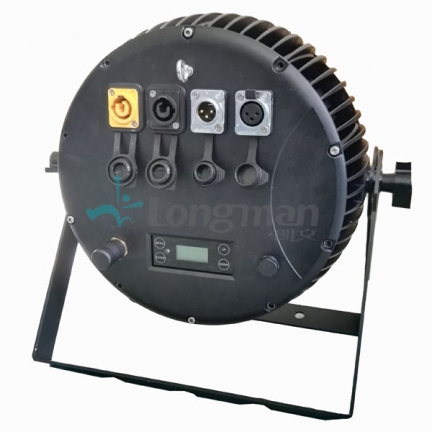

| Conectors | Same Powercon Yellow/Black soucket, 3XLR/5XLR IP Rated base |
| Safty | Class II, Endure 5ms 1.5KV shock, Insulated Resistance＞２MΩ Flame Rating V-1, Protect Rated IP65 |
| Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
| Weight | 11.3KG |
| size | 351*189*349mm |
| Operating temperature | -20~+45ºC |
