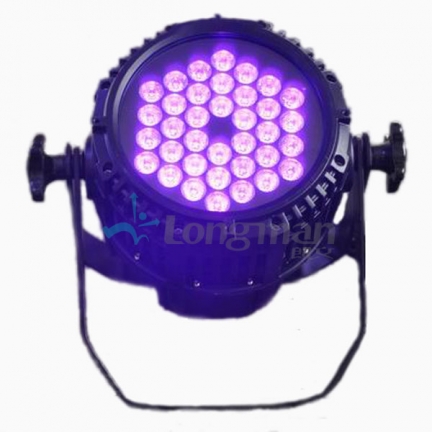

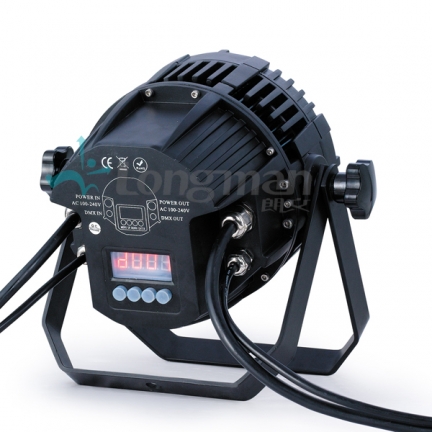

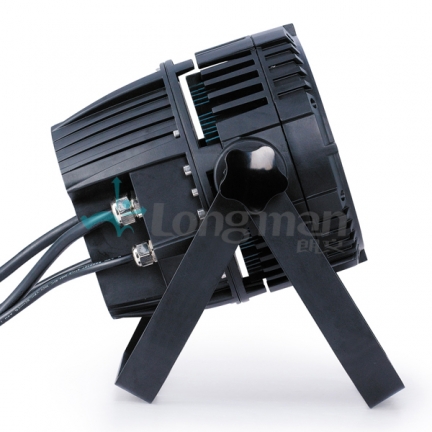

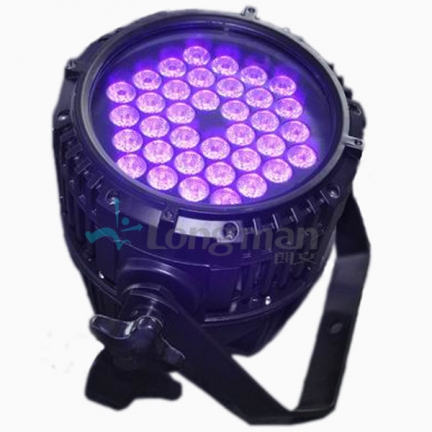

Proverbs R200UV Outdoor ultraviolet LED uv black Lights

Brief description：
1. 36pcs 3W Helio UV LED
2. Waterproof black light lamp
3. 27W ultraviolet radiation power output

Size: 30*32*39CM
Weight: 4.7KG

Features:
Proverbs R200UV Outdoor LED uv black Lights

27W UV radiometric power output, high efficiency light output 90% lumens within 10% intensity field angle.
Project energy from long distance to architecture with carbon chain polymer and fluorescence.
Offer recommended fluorescent powder mixing solutions and invisible colorful painting solutions, last for 3 years.
DMX512 signal control, 4 buttons address setting for LED screen.
Dim 4 square law dimming for 0-100%, video flicker free, with strobe/gradual change inbuilt programs.
Independent circuit driving, each 620mA, even ampere distribute, each LED circuit employs constant current and PWM dimming, ensure LED current does not overload.
Built-in NTC temperature control system, when overheated, intelligent reduce LED output power.
Field angle standard 30°, could choose other angles, frosted piece and 60*1° three times optical glass piece.
Solid die cast lamp housing, 15000 hrs using life.
With waterproof air valve to balance pressure, no moisture on the inner side of lens.

Specification:

Voltage Input	AC 90-240V 47-63Hz, PF>0.9
Voltage Output	24V, SMPS longevity 15000 hrs
Rated Power	90W(@220V 50Hz)
Luminaire Efficiency	>0.9, luminous efficacy >660 lm/W
LED Lumens	36pcs*3W Helio UV LED, total 27W radiometric power, about 11 lumens
LED Wavelength	380-405 nm
Field Angle(10%)	Standard 30 °, 8°, 15°, 45°, 60°, 60*1°
PWM Frequency	>1500Hz, video flicker free
Control Signal	DMX512, 32 bit Dim 4 square law dimming, smooth in low DMX value dimming, not jumping, no vision shock
Control Mode	DMX1990/DMX512A/stand alone/master and slave mode
Chanel Option	3CH, dimmer, strobe and dimming curve
Housing Material	Die cast aluminum ADC12, standard matte black, could be customized for glossy white painting
Safety	Appliance Class II, 3C 2.5mm2 VDE cable, flammability rating UL 94 V-1, IP65 rated
Operate Temperature	-20~+45℃, light board peak temperature 80℃
Certificate	CE, Rohs, CQC, UL
Weight	4.7Kg, with two yokes 3mm thick supporting bracket
Size	303239 CM
