Unicorn BM100 COB RGBW led stage light

Brief description：
1. 1pcs*100W FULL RGBW LED bulbs,4in1
2. 3302 lumens output
3. LED meets ZHAGA world standard
4. New design lamp appearance

Size: 265*209*286 mm
Weight: 5.2KG

Inquiry

Share This Products:

Picture&Video Specification Photometric Download

Features:
COB RGBW led stage light

New lamp body, effective depth housing to accommodate with COB reflector, offering perfect color mixing.
Touch LED display, no easy broken keyboard, 2 minutes no operation no display.
High power 100w full range RGB LED bulbs integrated and encapsulated together, 3302 lumens output.
Field Angle standard 97°, could choose other wider angles, support barn door.
Dim 4 Square law dimming for 0-100%, 1500Hz PWM video flicker free.
NTC temperature control system inside, MCU automatically reduce the power output when LED working temperature is too high.
Waterproof air valve installed to balance pressure, no moisture will be emerged on glass.

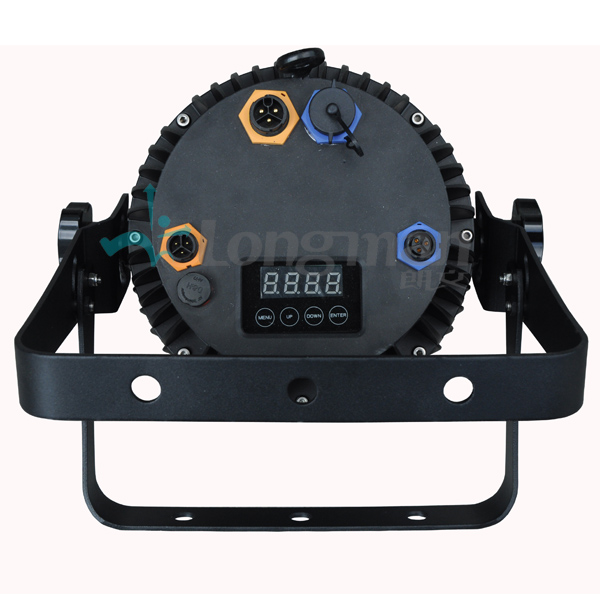

LED display board shows DMX signals, make installation more easier.

Specification:

Power Input	AC 100-240VAC, 47-63 Hz
Output	48V DC, Power Factor>0.7
Rated Power	100W, typical consumption 86W/220V
Light Source	1pcs*100W FULL RGBW LED meet ZHAGA standard, R=625nm, G=525nm, B=450nm, W=6500K
Light Output	3302 lumens, luminaire efficiency 38.7lm/W

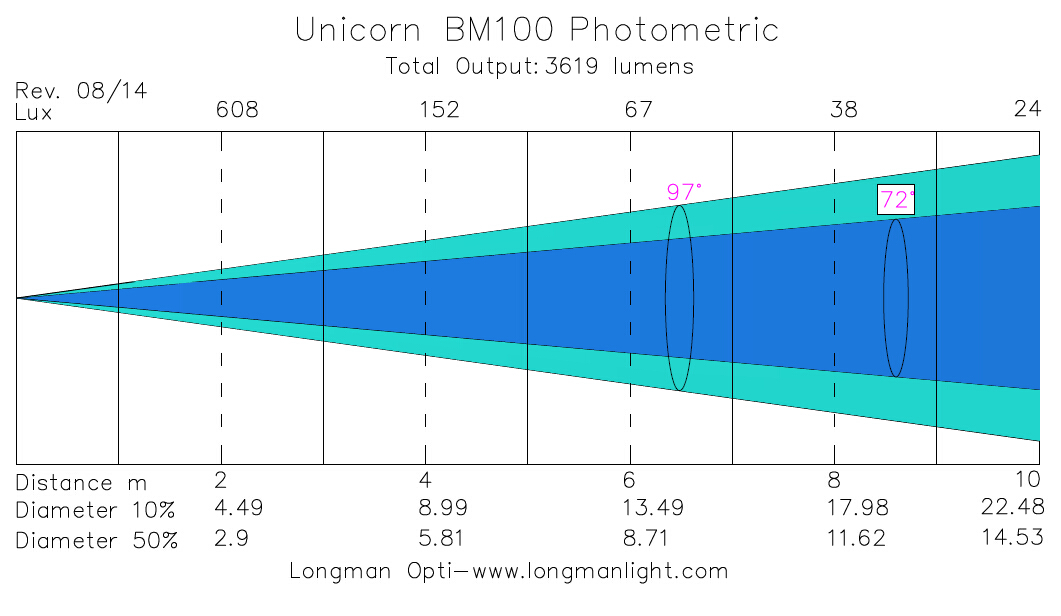

Field Angles(10%)	97°, Light beam(50%)70°, 2311Cd on axis, Optical available at 25°but less good color mixing
Color Mixing Index	Standard deviation of chromaticity SDC<0.005, good saturation, perfect color mixing
Control Signal	Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit precise dimming, Dim 4 smooth in low DMX value dimming, no vision shock
Control	Master and slave mode, DMX Channels 3CH, 4CH, 5CH, 8CH, 9CH
Display	Touch operation, LED display show DMX signal and turn off when no operation
Dimming	5 dimming curve with Dim0-Dim4, smooth dimming
PWM frequency	>1500Hz flicker free, Flash Rate Endurance Full Load:>12Hz Full load/void load flash
Cooling Method	Natural cooling, NTC overheat protection balance at light board 80℃
Housing Color	ADC12 Standard matte black, you can ask for others colors
Connectors and Cables	IP67 Male/Female connectors
Safety	Appliance Class II, 3C 2.5mm2 VDE cable, flammability rating UL 94 V-1, IP code IP66
Accessories	Barn door, hook, safety cable, signal extension cable, power extension cable
Soldering Technology	180℃ reflow soldering, 15000 hours working life of SMPS and motherboard
Size	265209286 mm
Weight	3.2KG, with double yoke
Operating Temperature	-20℃ - +55℃
Certificate	Product pass CE, RoHS, SMPS pass CQC or UL60950, UL8750
