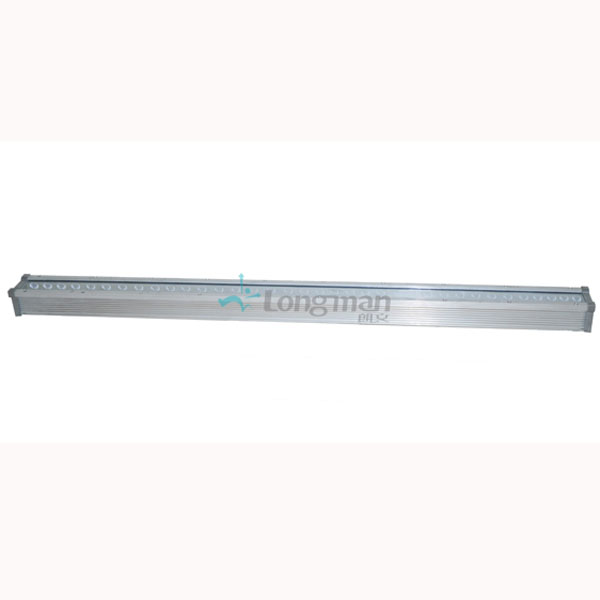

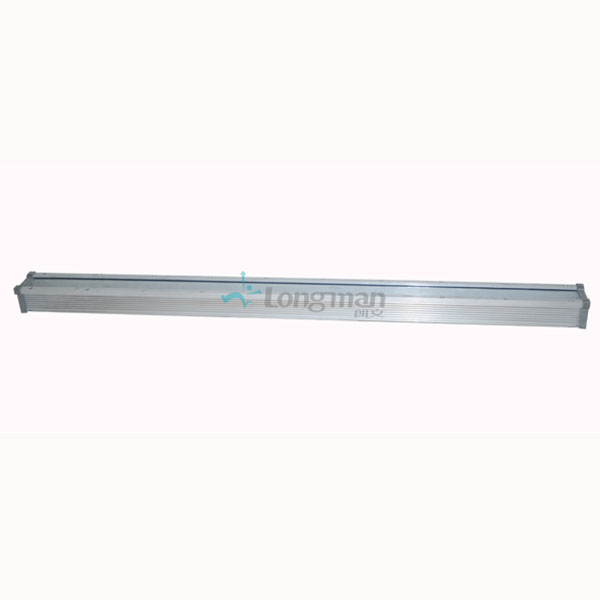

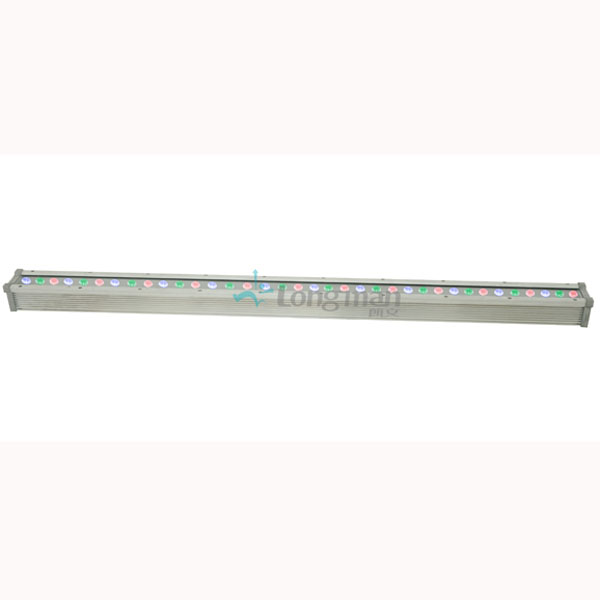

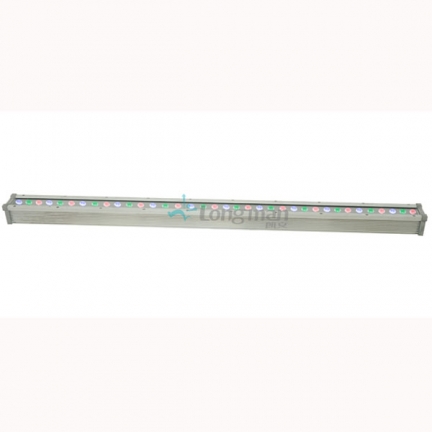

Excelsior 361RGB-rgb linear LED wall washing lights

Brief description：
1.36pcs*1W RGB LED
2.1980 Lumens output
3.1 D-D-R3 controller could support 10 PCS fixtures
4. better light distribution, could offer light beam 65*15 degree

Size and Weight: 1001*69*119mm/2.5KG

Inquiry

Specification User's document

Features:
rgb linear LED wall washing lights
1)3 circuits pubilc positive cable Constant PWM dimming, could connects with 4 cables V+ 4mm, 3*V- 2.5mm.
2)1 D-D-R3 controller could support 10 PCS fixtures.
3)each fuxture with 1 D-D-R3A could controll independently
4)36 PCS LED in one layer, better light distribution, could offer light beam 65*15 degree.
5)1980Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle.
6)Good color mixing, SDC<0.005, wash wall with no sawtooth.
7) Could work with third party CV PWM controller, any signal it work is OK, DMX, SPI, Differential, 10V
8)Field Angle standard 30°, could choose other angle, and also frosted piece and third optical piece.
9)With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.

Specifications:

Voltage input	DC24V, PF>0.95
Rated Power	36W(33.8W@24V Full on)
Luminaire Efficiency	>58.2lm/W with high brightness Green Color
LED Lumens	36pcs*1W RGB LED each 12PCS, 350mA driving total 1980 Lumens output
LED Color	R=625nm, G=525nm, B=460nm, offer multi-Color mixing, SDC<0.005
Field Angle(10%)	standard 30 °(13400Cd on axis), 8°, 15°, 45°, 6119°, 7510°Etc optional
Control signal	Constant Voltage PWM Dimming, public positive Cable 3 circuits
Dimming Curve	8 bit linear diming, PWM>400Hz, fliker free
Housing material	Extrusion 6063, anodized Matte silver, customized other color and barndoor
Safty	Class III, 4C*0.75mm2 VDE cable, Flame Rating V-1, Protect Rated IP66
Operate temperature	-20~+45℃, Light board peak temperature 60℃
Cerficated	CE/RoHs/UL/CQC
Weight	2.5 KG, with 2mm thick double bracket
Size	100169119mm
