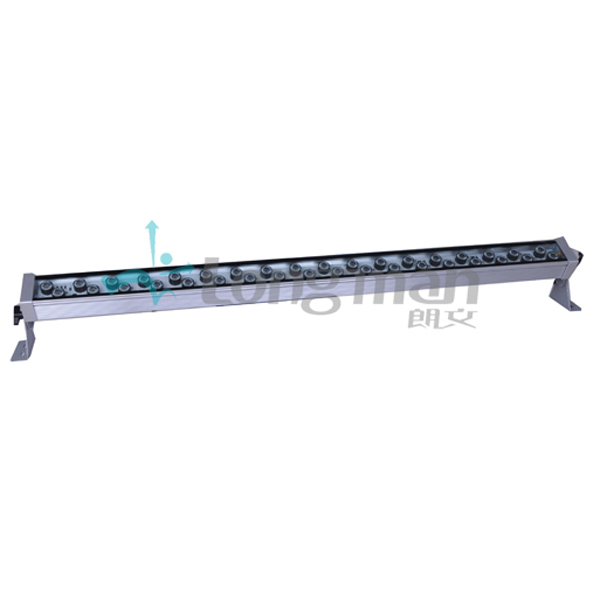

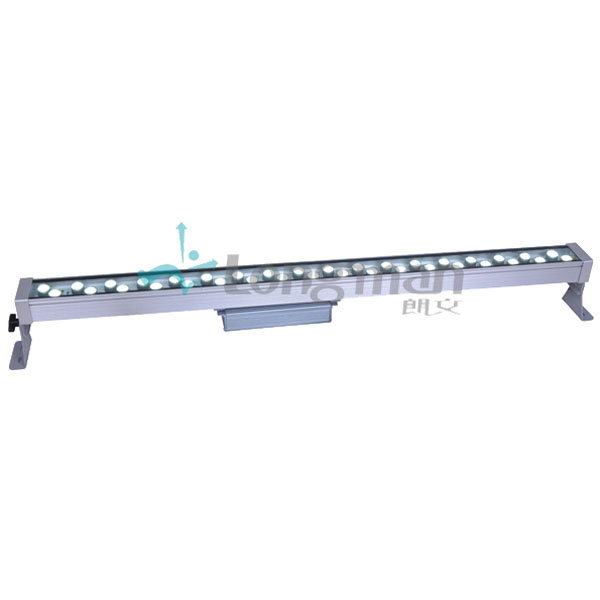

Excelsior 363AC-outdoor wall washer led

Excelsior 363AC-outdoor wall washer led

Brief description:
1.36pcs*3W Cree XPE white LED
2.5140 Lumens output
3.Sivewave dimming, no affect to Grid net when dimming
4. DC cable connect with power supply through side cover

Size and Weight: 1045*122*71mm/5KG

Inquiry
Features:
1)Sivewave dimming, no affect to Grid net when dimming.
2)SMPS inout and output with both Male/Female waterproof connector, easy replace, could connect 30 PCS fixture as daisy train.
3)DC cable connect with power supply through side cover, by 2 chips Male/Female waterproof connector
4)Could choose sidecover bracket or slide bracket for installation
5)5140Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle.
6)Stable color performance, Ra>85.
7)Cree XPE/XPG LED, less comsume, longer longevity, precise optical design
8)Independent circuit driving, each 1000mA,even ampere distribute.
9)Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece.
10)Lampbody enough for LED heatsink, heat-seperated driving part design make sure more than 10000 Hours Longevity for SMPS and Main board.
11)Side cover With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface.

Specifications:

Voltage input AC 40-240V 47-63Hz,PF>0.9
Volatage Output DC64V, 1000mA driving, Sivewave dimming
Rated Power 64W(@220V 50Hz)
Luminaire Efficiency >0.9, Light Effiacy >80lm/W
LED Lumens 36pcs*3W Cree XPE or 18 PCS XPG White LED, total 5140 Lumens
LED CCT 28000K-8000K optional, standard 3200K
Field Angle(10%) standard 30 °(61680Cd on axis)、8°、15°、45°、60°、60*1°Etc optional
Control mode Sivewave dimming, DimmerPack DSP1220 controlled by DMX
PWM frequency PWM>7.8KHz, video flcker free
Housing material  Extrusion 6063, anodized Matte silver, customized other color and barndoor
Safty Class II, 3C 2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP65
Operate temperature -20~+45℃,Light board peak temperature rise 25℃
Cerficated Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Weight 5KG,with double yokes or slide bracket
Size 1045*122*71m
