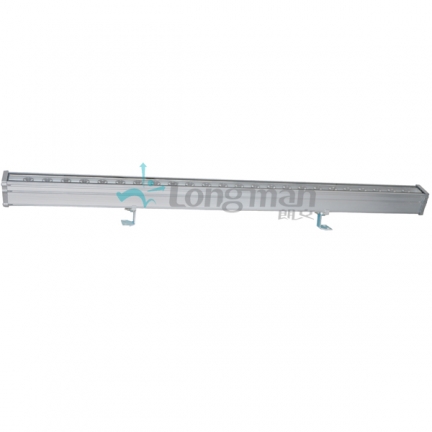

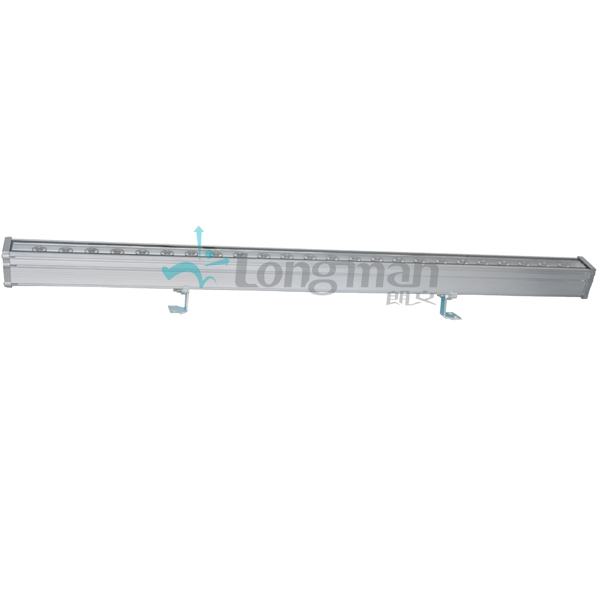

Vpower 241-outdoor led wash lights

Vpower 241-outdoor led wash lights

Brief description:
1.24pcs*1W RGB LED
2.1120 Lumens output
3.auto distribute Address to reduce install headache
4. could use 60*15°beam, wash wall with no sawtooth

Size and Weight: 996*57*100mm/2KG

Inquiry
Vpower 241 outdoor led wash lights products
Features:
1. No display board, no need button to set address, auto distribute Address to reduce install headache.
2. 1120Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle.
3. Good color mixing, SDC<0.005,could use 60*15°beam, wash wall with no sawtooth.
4. DMX512 signal control, or first light act as master.
5. Dim 0 linear dimming for 0-100%, video flicker free
6. Independent circuit driving, even ampere distribute.
7. NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
8. Field Angle standard 30°,could choose other angle and 60*15°
9. 6063 Aluminium body, fast heatsink, make sure more than 15000 Hours Longevity for SMPS and Main board.
10. With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface.

Specifications:

Voltage input AC 40-240V 47-63Hz,PF>0.9
Volatage Output 28V, SMPS longevity 15000Hours
Rated Power 24W(@220V 50Hz)
Luminaire Efficiency >0.9, Light Effiacy >46lm/W
LED Lumens 24pcs*1W RGB LED each 8PCS, 350mA driving total 1120 Lumens output
LED Color R=625nm,G=525nm,B=460nm,offer multi-Color mixing,SDC<0.005
Field Angle(10%) standard 30 °(13400Cd on axis)、8°、15°、45°、60°、60*15°Etc optional
Control signal Meet E1.11 - 2004 USITT DMX512-A,auto distribute DMX address, maximun connect 170 PCS fixtures, could add signal amplifier
Control mode Controller send DMX signal/no outside signal all fixtures controled by first fixture, fading color
Dimming Curve Dim0 linear dimming, PWM>400Hz, fliker free
Housing material  Extrusion 6063, anodized Matte silver, customized other color and barndoor
Safty Class II, 3C 0.75mm2 VDE cable, Flame Rating V-1, Protect Rated IP65
Operate temperature -20~+45℃,Light board peak temperature 80℃
Cerficated Product pass CE, Rohs Etc
Weight 2KG,with double yokes or slide bracket
Size 996*57*100mm
