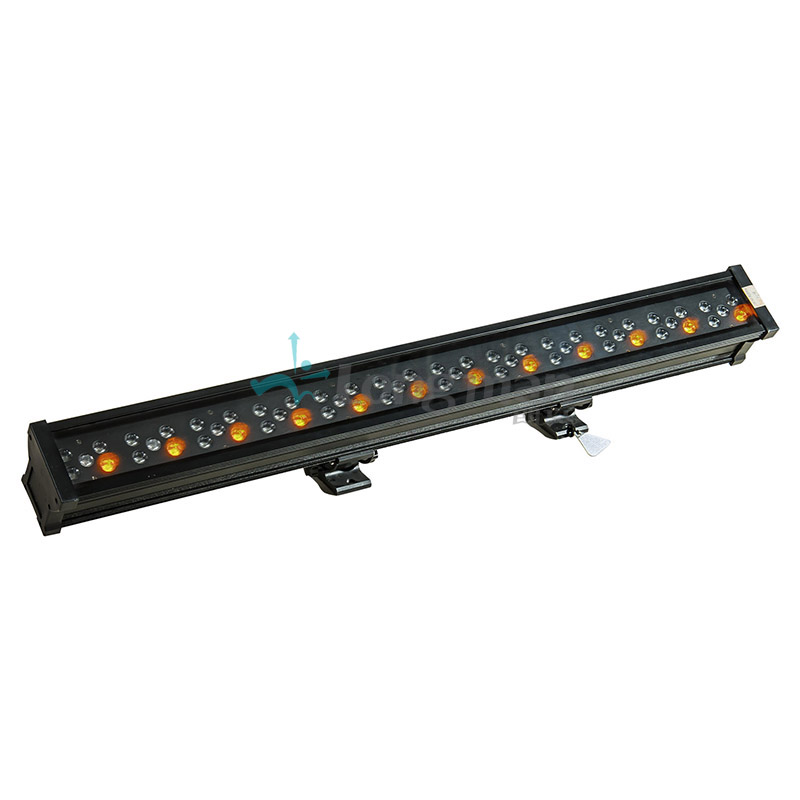

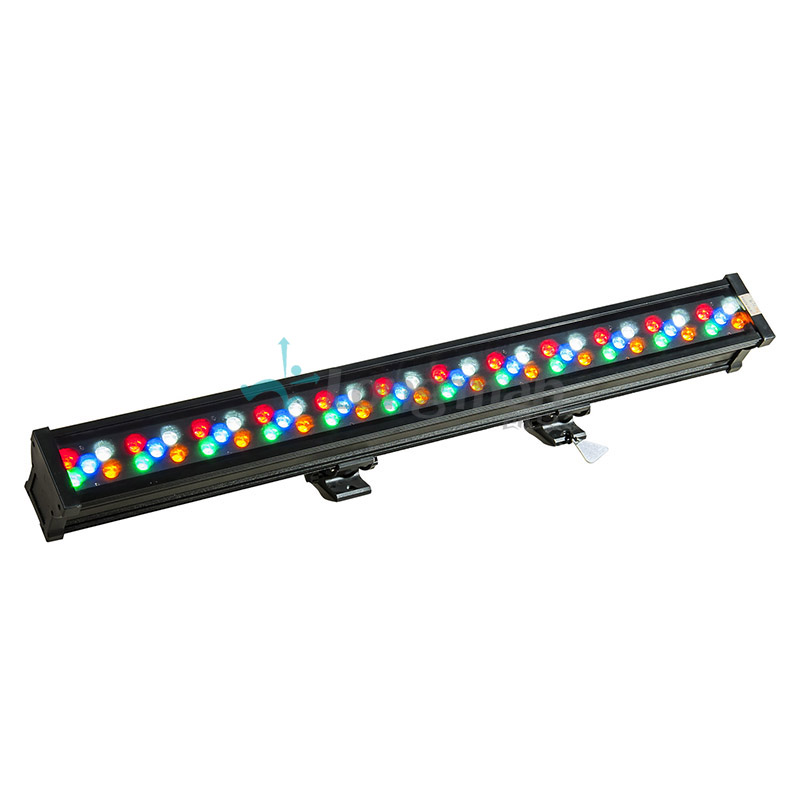

Vpower 603B-outdoor LED wall washers

Brief description：
1.60pcs*3W RGBAW LED
2.3700 Lumens output
3.better color mixing,SDC<0.005
4.NTC temperature control system inside

Size and Weight: 1002*110*170MM/6KG

Inquiry

Specification User's document

Features:
1. 3700Lumens Output，hight effieciency light output 90% Lumens within 10% Intensity field angle.
2. RGBAW Color mixing，better color mixing, SDC<0.005，could acheive halogen color.
3. Adopt 32 Bit MCU, Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
4. LED Display and 4 buttons setting showing infomation and signal condition turn off when no operation.
5. Independent circuit driving, each 700mA，even ampere distribute.
6. NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
7. 6063 Aluminium body, fast heatsink, make sure more than 15000 Hours Longevity for SMPS and Main board.
8. Field Angle standard 30°，could choose other angle, and also 60*15°
9. With waterproof air valve to balance pressure，get rid of mosuisture on glass innerface.

Specifications:

Voltage input	AC 90-240V 47-63Hz，PF>0.9
Voltage output	24V, SMPS longevity 15000Hours
Rated power	150W（@220V 50Hz）
Luminaire Efficiency	>0.9, Light Effiacy >25lm/W
Light source	60pcs*3W RGBAW LED each 12PCS, 700mA driving total 3700 Lumens output
LED CCT	R=625nm，G=525nm，B=460nm，A=590nm，W=6500K，offer multi-Color and many white color，SDC<0.005
Field Angle(10%)	standard 30 °（44400Cd on axis）、8°、15°、45°、60°、60*15°Etc optional
Control signal	Meet E1.11 - 2004 USITT DMX512-A，32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock，PWM>600Hz，Flicker free
Control mode	DMX1990/DMX512A/stand alone/master and slave
Chanel option	8/10/23 CH all inside menu
Housing material	Extrusion 6063, anodized Matte balck, customized other color, signle side barndoor
Safty	Class II, 3C 2.5mm2 VDE cable, Signal shield cable, Flame Rating V-1, Protect Rated IP65
Operate temperature	-20~+45℃，Light board peak temperature 80℃ with NTC protection
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Weight	6KG，with double brackets
Size	1002110170MM
