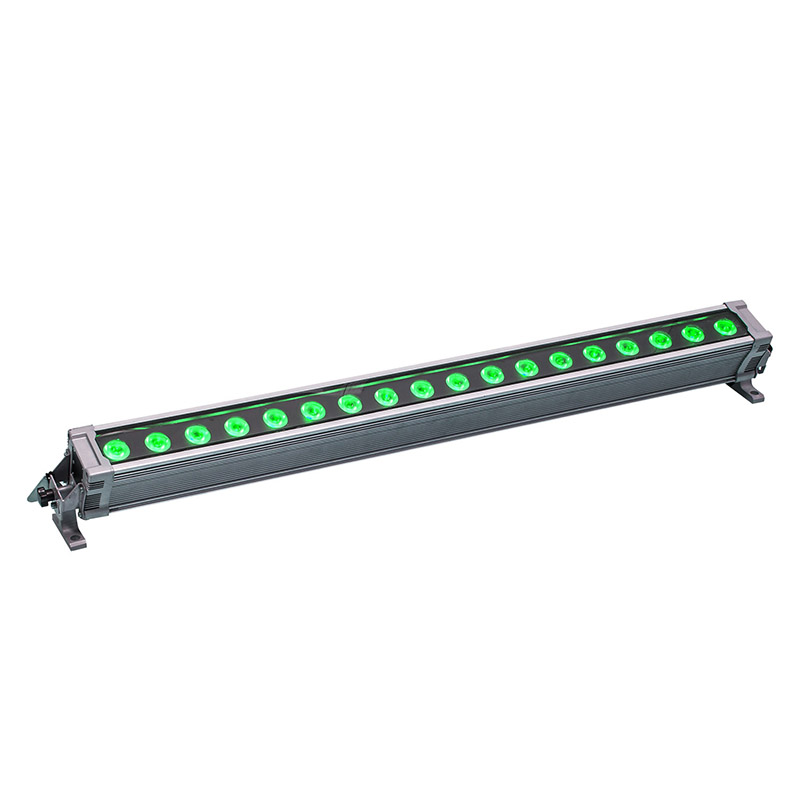

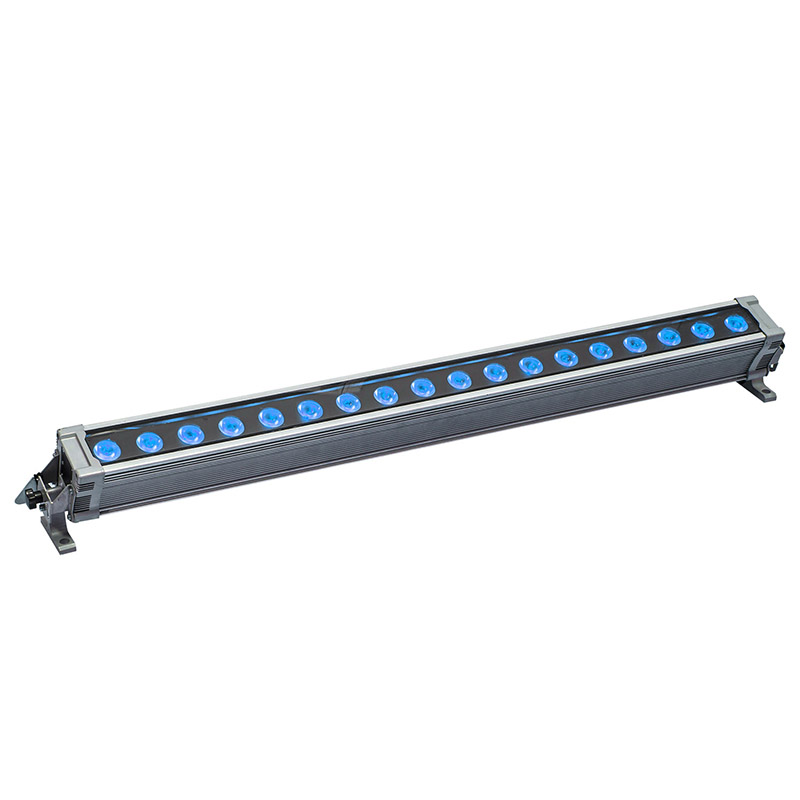

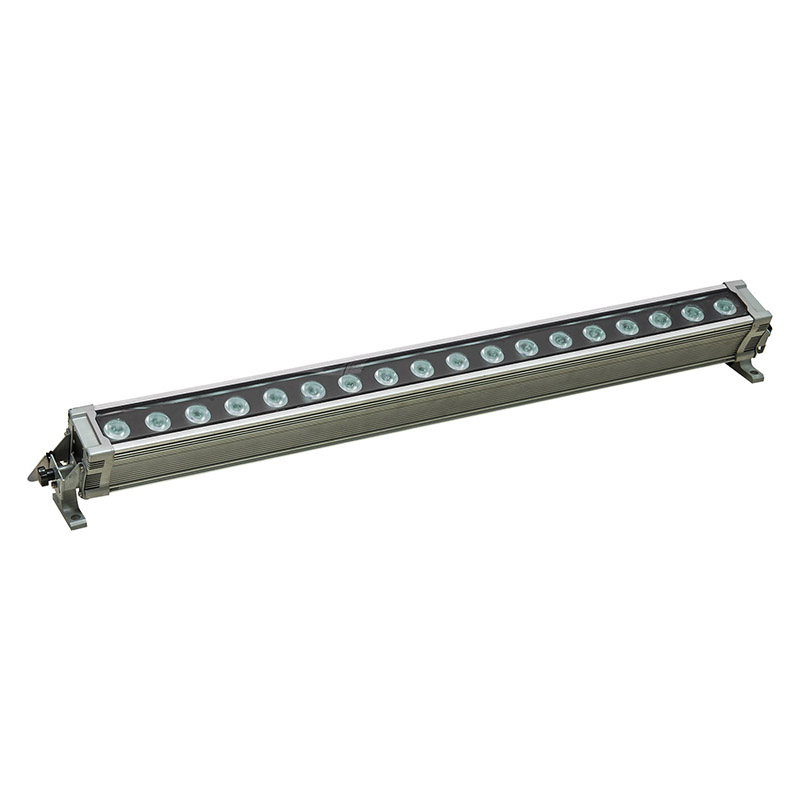

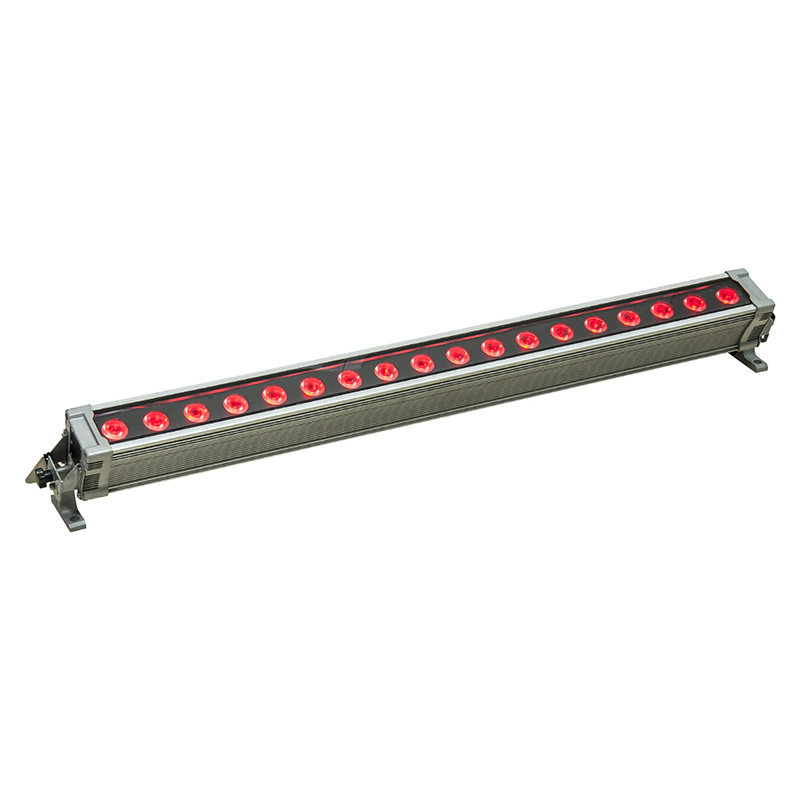

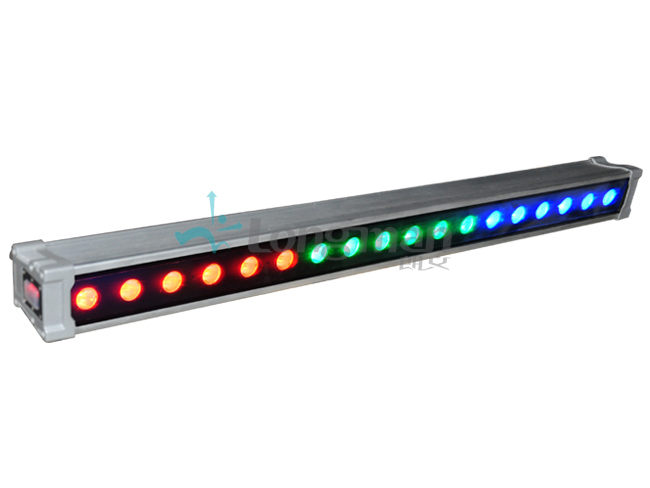

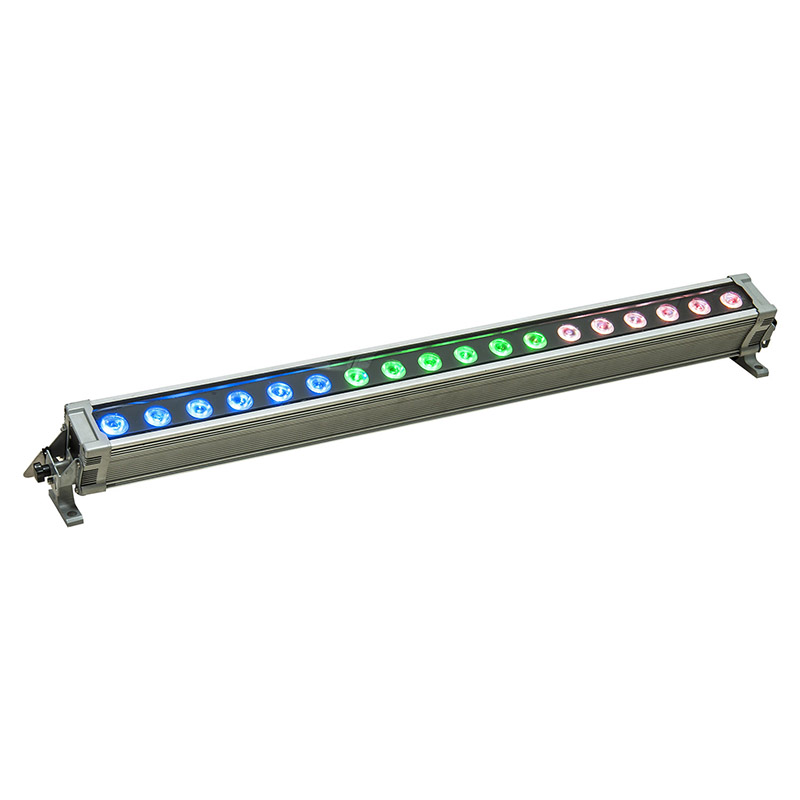

Vpower L450-outdoor LED wall washer

Features:
1.High power leds 12w each 5-in-1 RGBAW better color mixing, SDC<0.005.
2.7460Lumens Output，hight effieciency light output 90% Lumens within 10% Intensity field angle.
3.Adopt 32 Bit MCU, Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
4.4 bit digital display DMX address code, show DMX signal condition for debugging.
5.Independent circuit driving, each 500mA，even ampere distribute.
6.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
7.Field Angle standard 50°，could choose other angle, and also frosted piece and 25 x 65° third optical piece.
8.With waterproof air valve to balance pressure，get rid of mosuisture on glass innerface.

---

Specifications:


Voltage input	AC 100V-240V  47-63Hz PF:>0.9
Voltage output	DC24V，SMPS longevity 15000Hours
Maximum power consumption	150W（@220V 50Hz）
Luminaire Efficiency	>0.9, Light Effiacy >50lm/W
Light source	18pcs*12W FULL RGBAW LED, 500mA driving total 7460Lumens output
LED Color	R=625nm，G=525nm，B=460nm，A=590nm，W=6500K，offer multi-Color and many white color，SDC<0.005
Field Angle(10%)	standard 50 °（26670Cd On axis)30°、25 x 65°Etc optional
Control signal	DMX512，32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock，PWM>400Hz，Flicker free
Control mode	DMX1990/DMX512A/stand alone/master and slave
Chanel option	5/9/17/22CH all inside menu
Housing material	Extrusion 6063，anodized Matte balck, customized other color and barndoor
Safty	Class II, 3C 2.5mm2 VDE cable, Endure 5ms 1.5KV shock, Insulated Resistance＞２MΩ Flame Rating V-1, Protect Rated IP65
Operate temperature	-20~+45℃，Light board peak temperature 80℃ with NTC protection
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Weight	5.7KG, with Slide bracket
Size	1099*85.4*135.7mm
