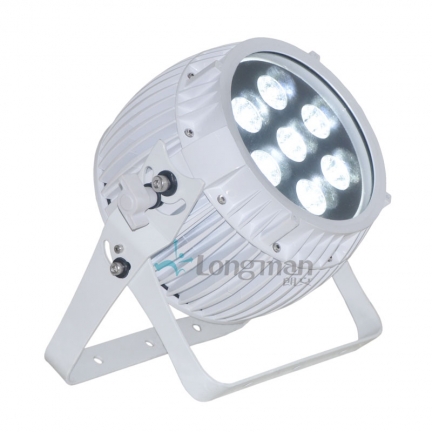

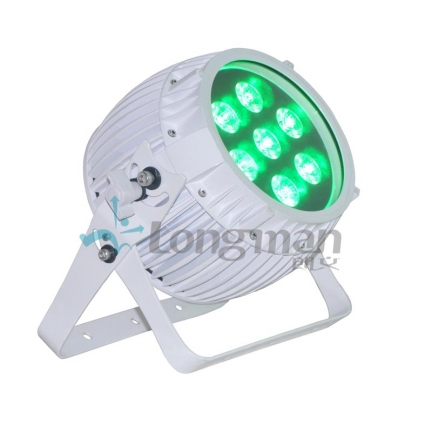

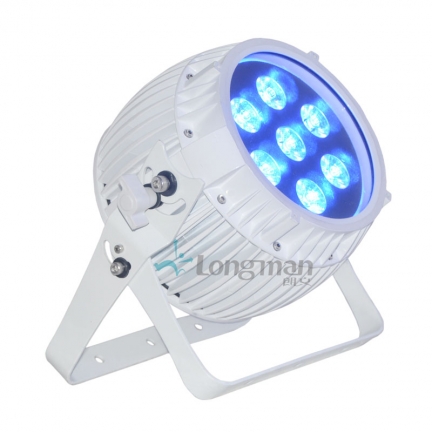

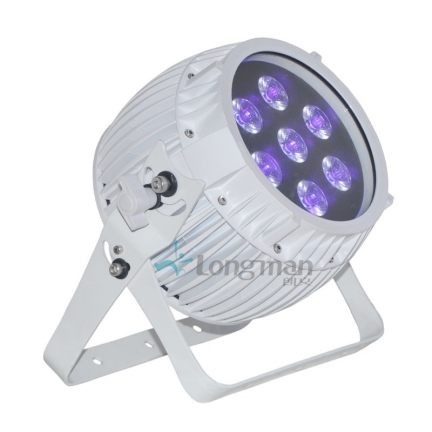

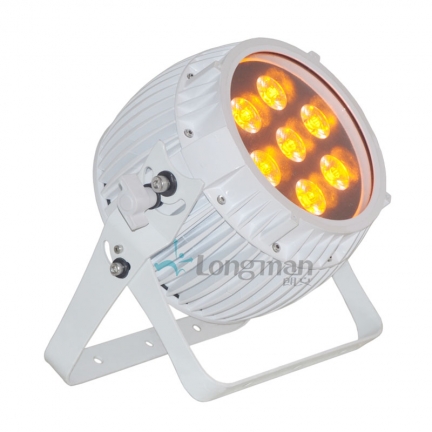

Brief description:
1.7 PCS 14W Full RGBAWUV
2.2.4GHz Wireless DMX solution
3.2335 Lumens Output
4.IP65 lampbody design
Size and Weight: 270*166*284mm / 5.72KG
Input | AC100-240VAC, 47-63 Hz Rated 100W |
Output | DC29.4V 8AH, 75W |
LED source | 7 PCS 14W Full RGBAWUV |
Protocal | WH/T 32—2008 DMX512-A E1.11 - 2004 USITT DMX512-A |
Wireless | LM-DMXA0 2.4GHz,7 DMX Univers,Diameter 300M |
MCU | 32Bit Arm Cocred |
Dimming Curve | Dim0 Linear, DIM4 Square Law |
PWM Refresh Rate | >1.5KHz,Flicker Free |

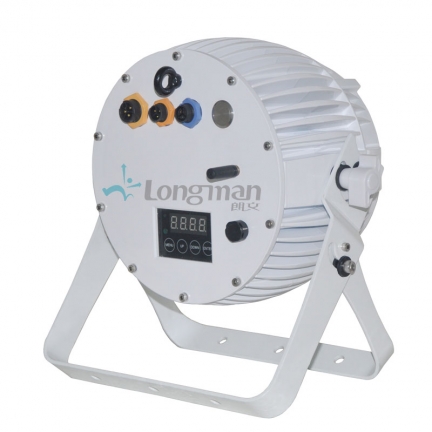

Menu | All easy reading English Menu |
Display and Button | Touch activated Screen |
IP and Fire Rating | IP65,V-1 |
Lampbody | ADC12 |
Finish | Standard Matt Black, Could customized as Matt white, PANTONE 150U |
Size | L*W*H=270*166*284mm |
Net Weight | 5.72 Kg |
Tem/Humidity | -20℃ ~ +55℃,RH0%-95%. |
Certificated | CE, Rohs,FCC,UN38.3 |
Acceories | Frosted piece, Bandoor, Hook and safety cable |
Connectors | With IP65 Yellow/Blue connector |
Soldering | 150~180℃ Low temperature reflow soldering |
