Brief description：
1. 1pcs*20W FULL RGBL LED bulbs,4in1
2. New design lamp appearance
Size: 100*100*113.5mm

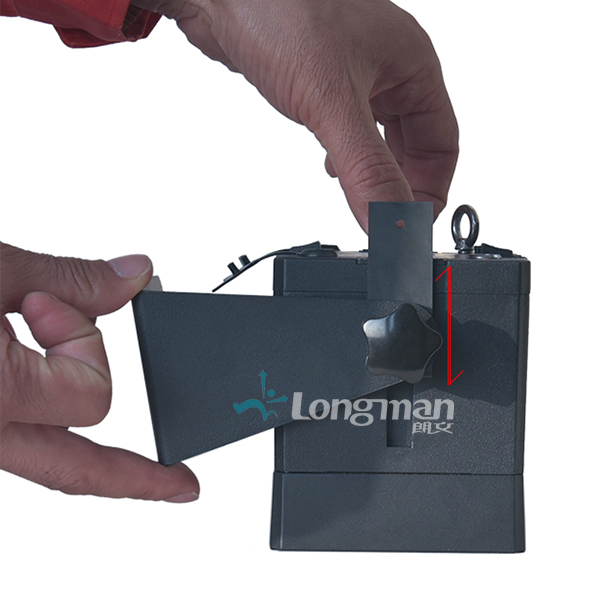

Weight: 1.5Kg (with bracket 1.6Kg)
| Model | Nexus Hexa20 | Nexus Hexa20 |
| Input voltage | DC 8.4V | DC 8.4V |
| Power consumption | 23W | 16W |
| Lamp Type | 20W LED 4-IN-1 R, G, B, L(1PCS) | 20W LED 6-in-1 R, G, B, A, L, C(1PCS) |
| Life span | 50000~100000hours | 50000~100000hours |
| PWM Dimmer | 1200HZ/2400HZ/4000HZ/12000HZ/16000HZ/20000HZ | 1200HZ/2400HZ/4000HZ/12000HZ/16000HZ/20000HZ |
| Control Signal | DMX512/ 2.4G/ RDM | DMX512/ 2.4G/ RDM |
| Angle | 15°, 25°, 45° Optional | 15°, 25°, 45° Optional |
| Channel | 10CH、6CH、4CH | 12CH、8CH、6CH |
| Function Effect | dimmer, strobe, gradual change | dimmer, strobe, gradual change |
| Touch buttons, automatic lock key | Touch buttons, automatic lock key | |

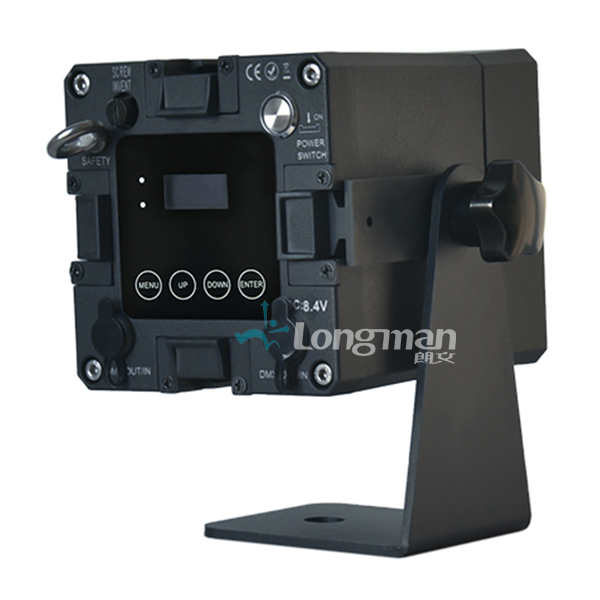

| 4 button touch control panel | 4 button touch control panel | |
| Built-in temperature control system, overheat protection | ||
| Built-in 18650 large capacity lithium battery, compatible Swedish wireless DMX module | ||
| Battery capacity | 8.4V/7.5A/55.5W | 8.4V/7.5A/55.5W |
| Charger | 8.4V*2A | 8.4V*2A |
| Charging time | About 5 hours | About 5 hours |
| Discharge time | Full bright ≥2.5 hours | Full bright ≥2.5 hours, Single color≥13 hours， 2 Colors≥5 hours，3 Colors≥4 hours |
| Cooling mode | Natural Convection | Natural Convection |
| Anti-electricity intension | 1.5KV | 1.5KV |
| Insulation Resistance | >2MΩ | >2MΩ |
| Protection | IP65 | IP65 |
| Size | 100*100*113.5mm | 100*100*113.5mm |
| Net weight | 1.5Kg (With Stand 1.6Kg) | 1.5Kg (With Stand 1.6Kg) |
