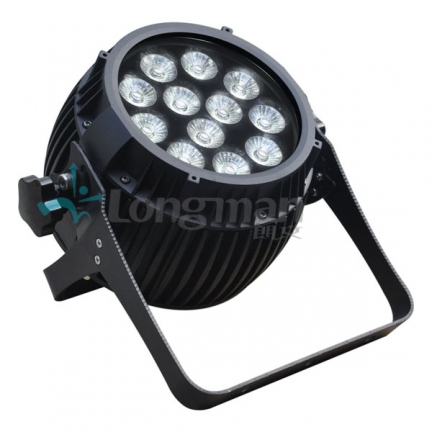

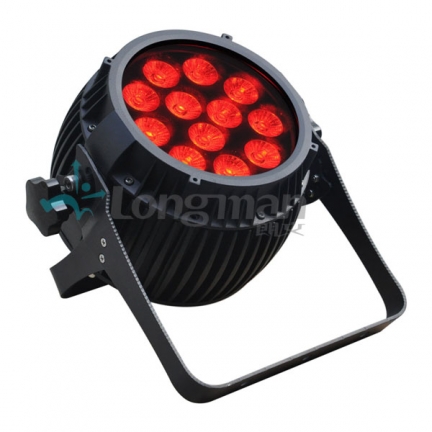

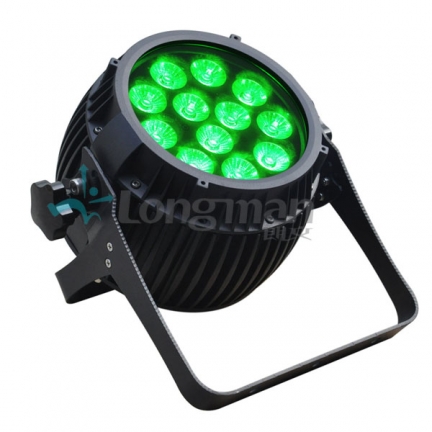

Parco R500 Outdoor LED Spot Light

Brief description:
1. 12 pcs 12W Full RGBAW
2. 5940 lumens output
3. New design lamp body with own patent
4. Touch LED display, no easy broken buttons

Size: 270*166*284 mm
Weight: 5.2KG

Inquiry
Specification Photometric Download
Features:
  • Outputs nearly 6000 lumens when full loaded, light rendering same as metal-halide lamp.
  • Field angle (10% intensity) is standard 51 degree, optional 37 degree.
  • New design pumpkin appearance, for the meaning of nature.
  • Whole lamp body fully used as heat sink, support heat dissipation 120W at 35℃ rise, built-in high temperature protection, lower output intensity from full to 70%-80% when overheated.

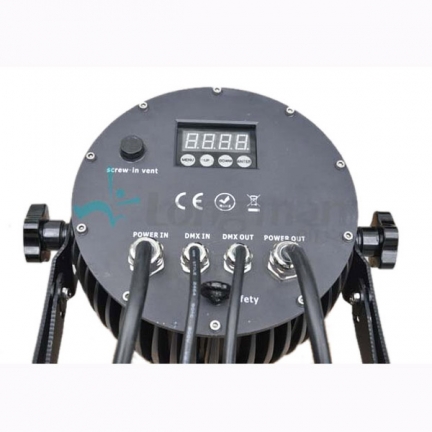

  • Touch LED display, no easy broken buttons, after 2 minutes if no operations at all, the screen will turn off by itself.
  • LED display board shows DMX signal, offering dimming curve from Dim0 to Dim4.
  • With waterproof air valve to balance pressure, get rid of moisture on glass.

Specification:
Input Voltage AC 100V-240V/47-63HZ
Output Voltage DC 24V
Rated Power 120W
Lamp Spec LED 5-in-1 12W FULL RGBAW total 12 LED
Light Output 5940 lumens
PWM Dimmer >400HZ(16666 grades)
Life Span 50000~100000 hrs
Control Signal DMX512, 32 bit precise dimming, smooth in low DMX value dimming, not jumping, no vision shock
Channels 4CH, 8CH, 9CH, 10CH
Color Mixing Index Standard deviation of chromaticity SDC<0.005
Lighting Effects dimmer, strobe, gradual change, sound activated
Beam Angle 37°, 51°
Cooling Mode Natural Convection
IP Rating IP65
Housing Material Die cast aluminum
Operating Temperature -20℃ - +55℃
Size 270*166*284 mm
Net Weight 5.2 Kg
Certificate CE, UL, RoHS
Parco R500 par light photometric graph
> Parco R500-FA42 Download
> catalog & page design Download
