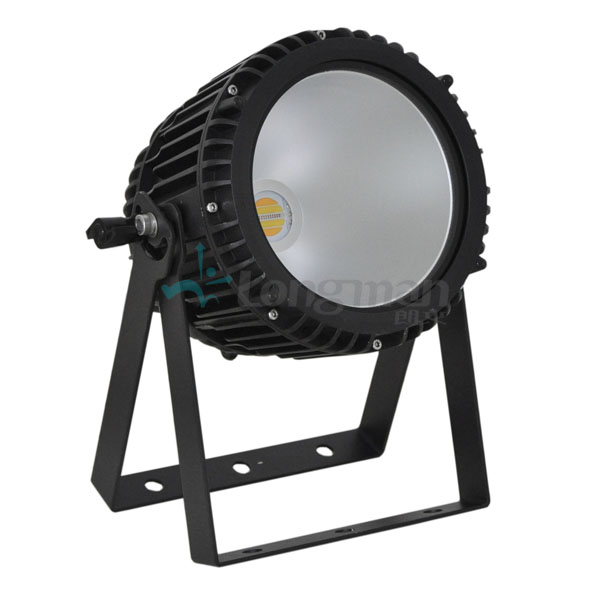

Unicorn BM100 COB ACW LED par can lights

Brief description：
1. 1pcs*100W FULL ACW LED bulbs,4in1
2. 3302 lumens output
3. LED meets ZHAGA world standard
4. New design lamp appearance

Size: 265*209*286 mm
Weight: 5.2KG

Inquiry

Share This Products:

Picture&Video Specification Photometric

Features:
COB ACW led stage light
1.Offer white balance solution
2.Offer high color rendering Both Ra and R9
3.Touch LED display, no easy broken buttons, 2minutes no operation no display
4.Could wash flood and keep 90Lux at 10M on axis, offer even color by SDC<0.005.
5.Dim 4 Square law dimming for 0-100%, 1500Hz PWM video flicker free
6.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
7.With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.
8.LED Display board shows DMX signal, LED Display turn off 2 minutes no operation.

Specification:

Power input	AC 100-240VAC, 47-63 Hz, Power Factor>0.7
Rated Power	100W(Typical Consumption 92W/220V)
Light Source	1pcs*100W FULL ACW LED meet ZHAGA standard, A=590nm, C=6500K, W=3200K
Light Output	4910 Lumens, Luminaire Efficiency 53.6lm/W
Color mixing index	Ra>90, R9>90, Standard deviation of Chromaticity SDC<0.005;, Perfect color mixing
Field Angles(10%)	Field angle97°Beam angle72°, 854Cd/Klm, 4190Cd on axis, Optical accesories available to zoom in
Control signal	Meet E1.11 - 2004 USITT DMX512-A, 32 bit precise dimming, Dim 4 smooth in low DMX Value dimming, no vision shock
Control	Master and slave, DMX Channels 3CH, 4CH, 8CH
Display	Touch operation, LED display show DMX situation and aotu turn off when no operation
Dimming	with Dim0-Dim4 5 dimming curve, smooth dimming
PWM frequency	>1.5KHz flicker free, Flash Rate Endurance Full Load:>12Hz Full load/void load flash
Cooling Method	Natural Convection and IP65
Housing color	ADC12 Standard Matte Black, could customized others
Thermal protection	NTC overheat protection balance at light board 80ºC
Connectors and Cables	IP67 Male/Female for Power, IP65 3XLR/5XLR for DMX
Safty	Class II, 3C 2.5mm2 VDE cable, Flame Rating V-1
Accessories	Barndoor, Hook, Safty Cable, Signal Extesion Cable, Power Extesion Cable
Soldering technology	180ºCReflow Soldering, makesure 15000 hours Longevity for SMPS and mainboard
Size	265209286mm
Weight	5.2KG, with double yoke
Operating temperature	-20ºC - +45ºC, with NTC, Max Light board Tem 80ºC
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
