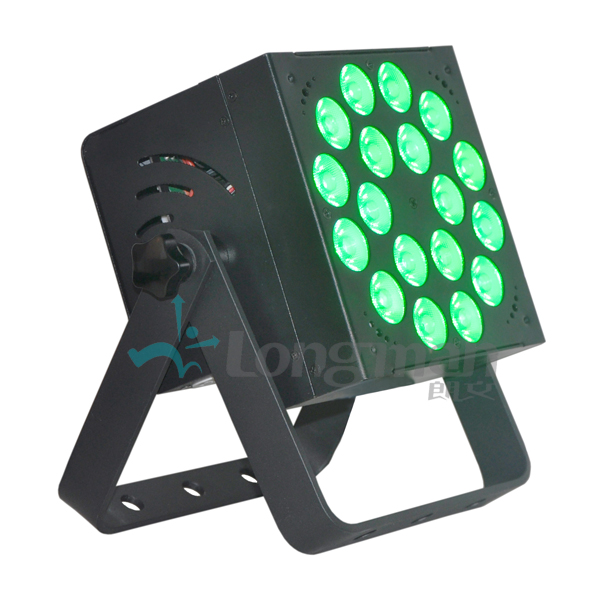

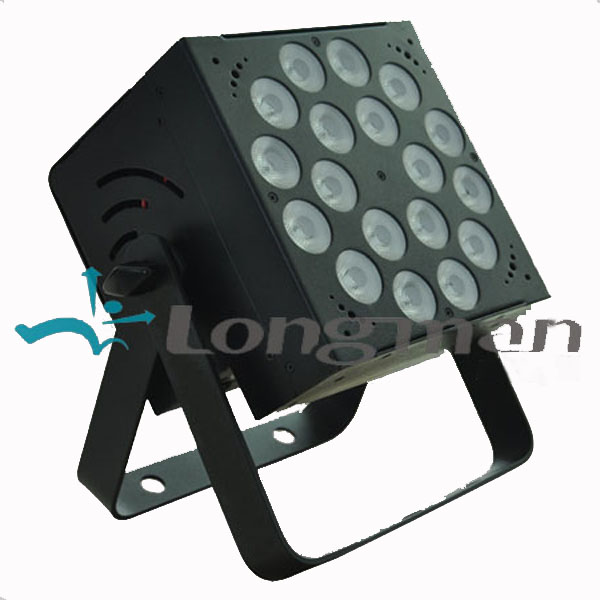

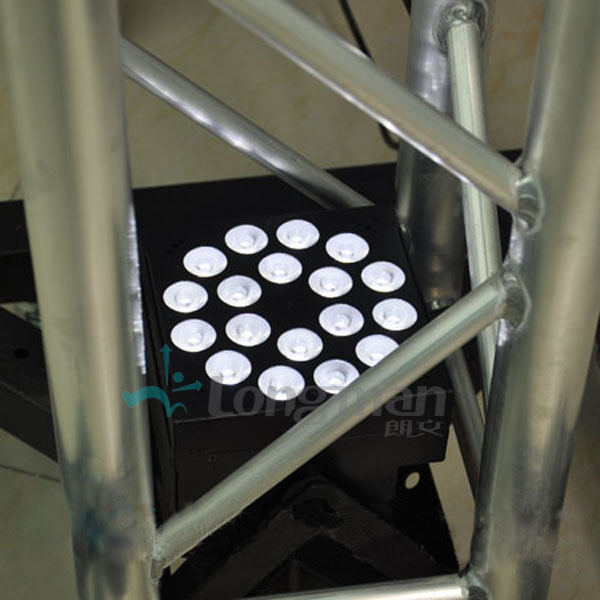

Products introduction
This product has a light body and fashion design. It uses high power 4-in-1 LED, which means each LED is made of R, G, B, W LED chips. Long life span, low power consumption, good color mixing effect and high brightness are the most
prominent features. Each kind of LED can be independently dimmed. The built-in program includes dimming, strobe, gradual change, fading and so on. It uses power switch, performs low weight and consumption, stable capability and long life. International standard DMX 512 signal is requested.
Main Function
high quality LED: low consumption, High brightness, stable capability and long life
each color of LED with 32-bit, 16666 grades dimming. RGBW can make over 16.7 million colors
dim 0%-100%, Strobe、gradual change、jumping change

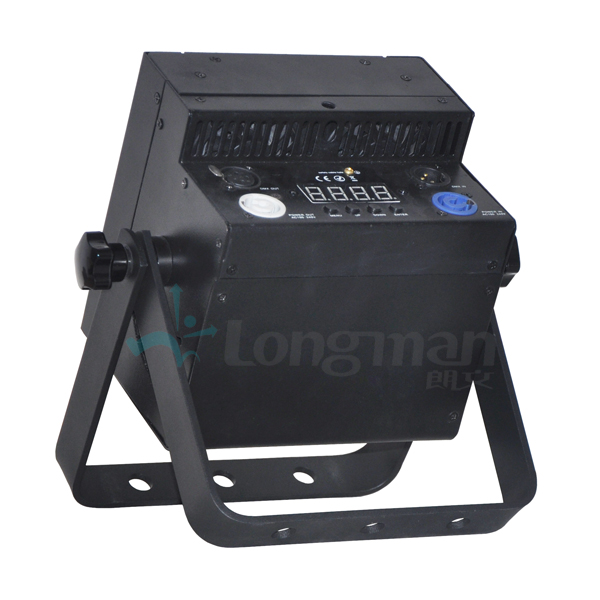

DMX512 Controller，4 button set DMX ID address with led display
auto run /sound activated/master slave/interconnected multi-machine control
using switching power supply to protect the LED to work well
lens degree: 25º、45º optional
3、4、5、8、9 CH DMX control channel optional
Specification:
| Voltage input |
AC 100V-264V/47-63HZ |
| Output voltage |
DC24V |
| Consume |
160W |
| Lamp Type |
High Power LED(10W) |
| Lamp Spec |
4-in-1LED (18PCS) |
| Constant current driver |
500MA |
| LED Life Span |
50 000 – 100 000 hours |

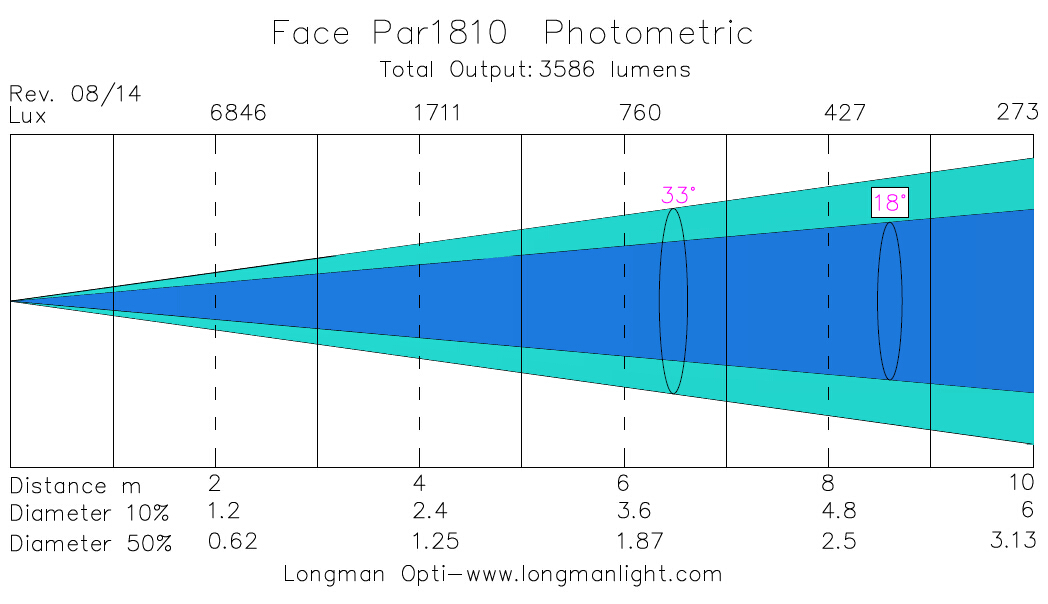

| Beam Angle |
25°, 45° |
| PWM Dimmer |
>400HZ(16666 steps) |
| Control Signal |
DMX512, sound activeted, auto run |
| Control mode |
stand alone/ sound activeted |
| Channel |
3CH、4CH、5CH、8CH、9CH |
| Color effect |
RGBW mixing |
| Function Effect |
dimmer, strobe, eotic, gradual change, sound activeted |
| Cooling method |
fan |
| Anti-electricity intension |
1.5KV |
| Net Weight |
3.3 Kg |
| Size |
229*165*228mm |
| Insulation Resistance |
＞２MΩ |
