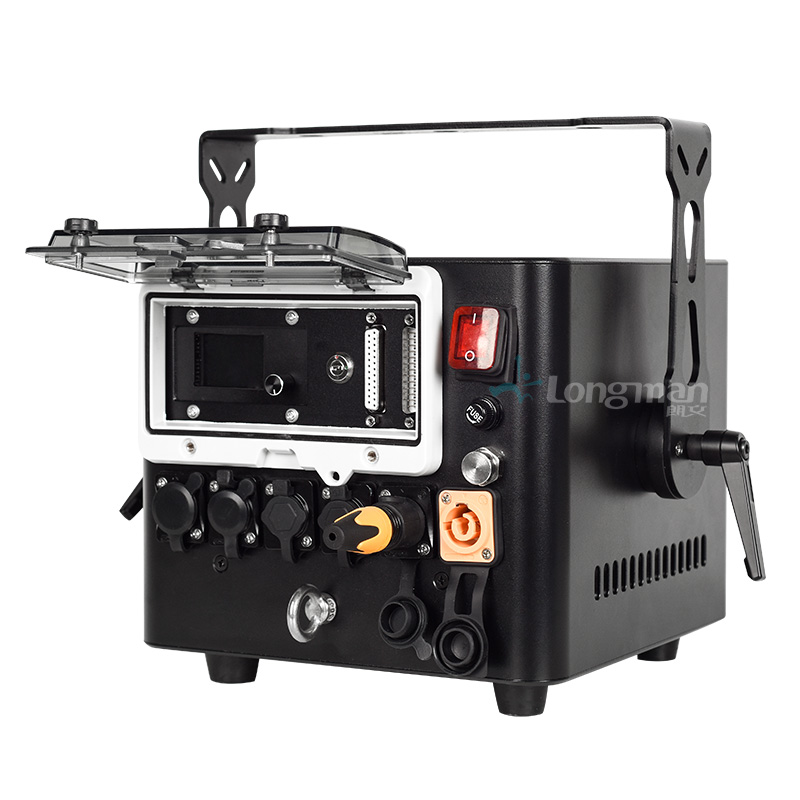

virtuoso AP5

Brief description：
Input Voltage: AC100~240V/50~60Hz
Rated Power: 250W
Fuse: 6A
Red: 638nm/1W; Green: 520nm/2W; Blue: 445nm/2W
Scanning Speed: 20Kpps
Galvo Speed: 20Kpps
Scanning Angle: 60°

Built-in Programs:
Geometric Patterns: 255
Animated Patterns: 255
Sound-activated Program Duration: 30 minutes
Stand-alone Program Duration: 30 minutes

Inquiry

Pictures and video Specification User's document

Input Voltage: AC100~240V/50~60Hz
Rated Power: 250W
Fuse: 6A

Red: 638nm/1W; Green: 520nm/2W; Blue: 445nm/2W
Scanning Speed: 20Kpps
Galvo Speed: 20Kpps
Scanning Angle: 60°

Output Colors:
Red, Green, Blue, Yellow, Cyan, Purple, White, True Color (255255255=16, 581, 375 colors)

Working Modes:

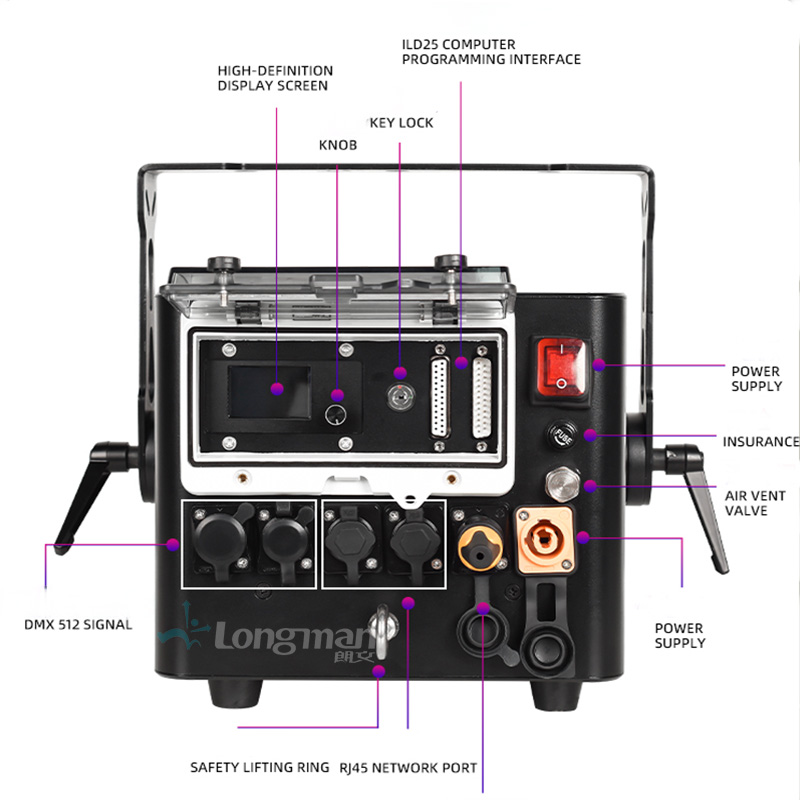

Stand-alone, SD Card Playback, DMX Console, Master-slave Synchronization, Computer Software Control

DMX Channels: 34 Channels

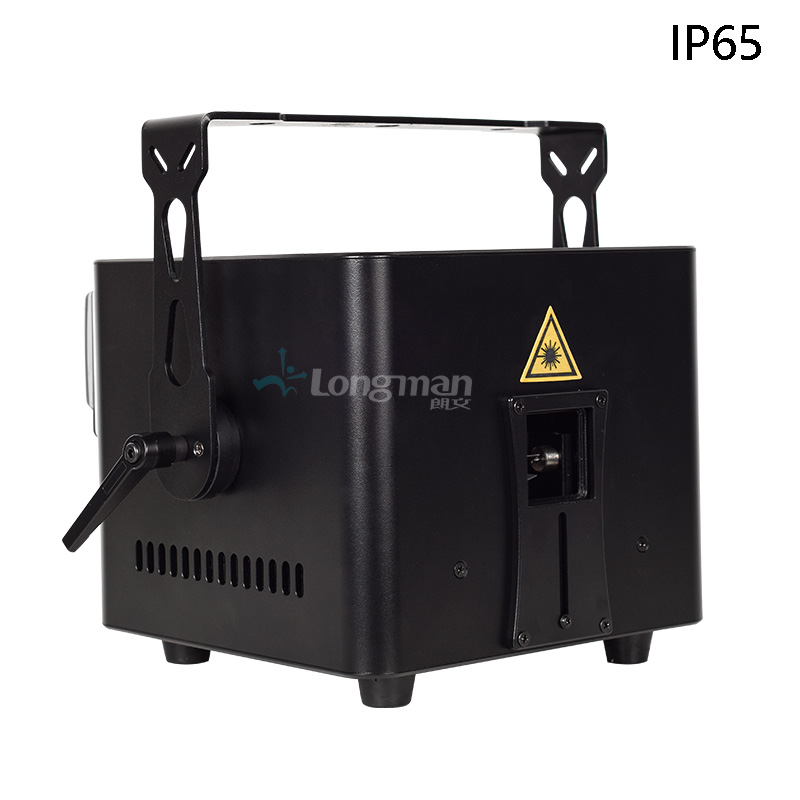

Ingress Protection Rating: IP65

Built-in Programs:
Geometric Patterns: 255
Animated Patterns: 255
Sound-activated Program Duration: 30 minutes
Stand-alone Program Duration: 30 minutes

Memory Card Capacity: 1~8GB
Supported Animations: 255

Fixture Dimension: 350mm (Length) × 210mm (Width) × 200mm (Height)
