Voltage: AC90-240V 50/60Hz
Rated Power: 750W
Control Mode: Sound Control, Auto Run, DMX512, Built-in Programs
Light Source: OSRAM SIRIUS HRI 420W
Beam Angle: 0-1.2°
Color Temperature: 7600K
CRI (Color Rendering Index): 85±5
Average Lifespan: ≥1500 hours

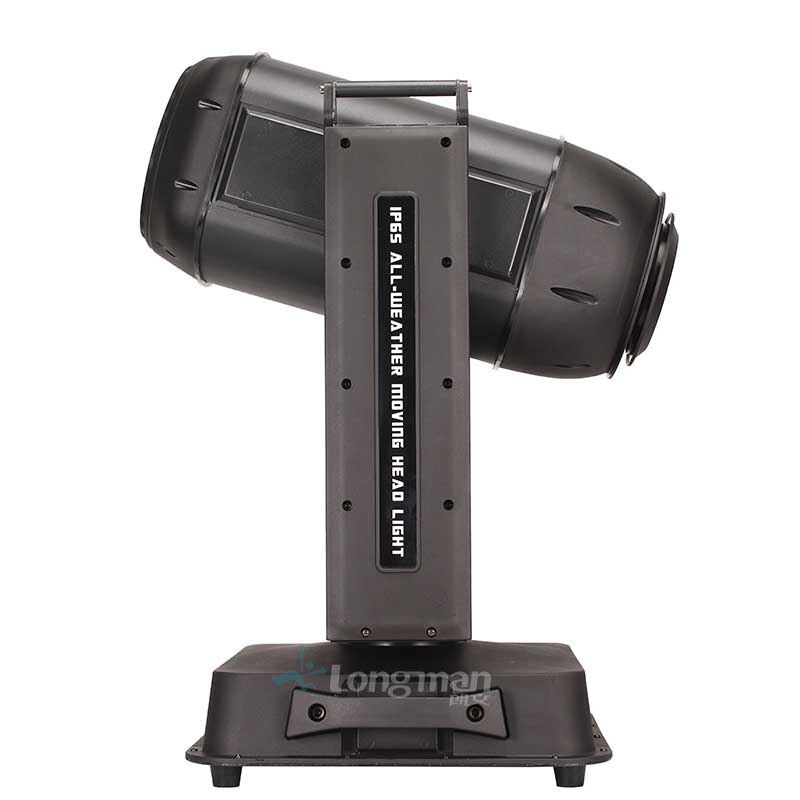

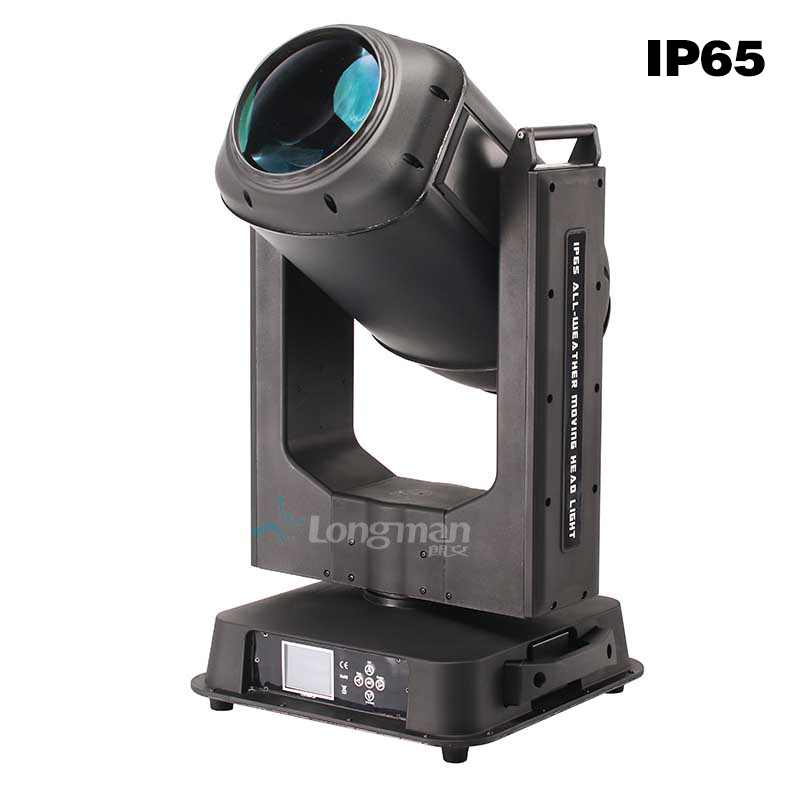

Protection Class: IP65
Housing Material: Die-cast Aluminum Alloy and Engineering PVC
Power Factor: ≥0.95
Color Wheel: High CCT Taiwanese color filters, 14 color segments + white, with split-color & bidirectional rainbow effects
Gobo Wheel: 14 pattern segments + white, bidirectional rotation capability
Prism: 8-facet prism (8 mono-color beams + 8 rainbow beams), bidirectional slow/fast rotation
Rainbow Prism: Taiwanese rainbow filter for single-beam rainbow projection
Frost: Independent frost effect for soft beam diffusion
Strobe: Dual-motor strobe (0.5-20Hz), adjustable speed
Control & Mechanics
Dimming: 0-100% mechanical dimming, flicker-free output
Lens: Imported multi-coated lens assembly, Ø200mm output aperture

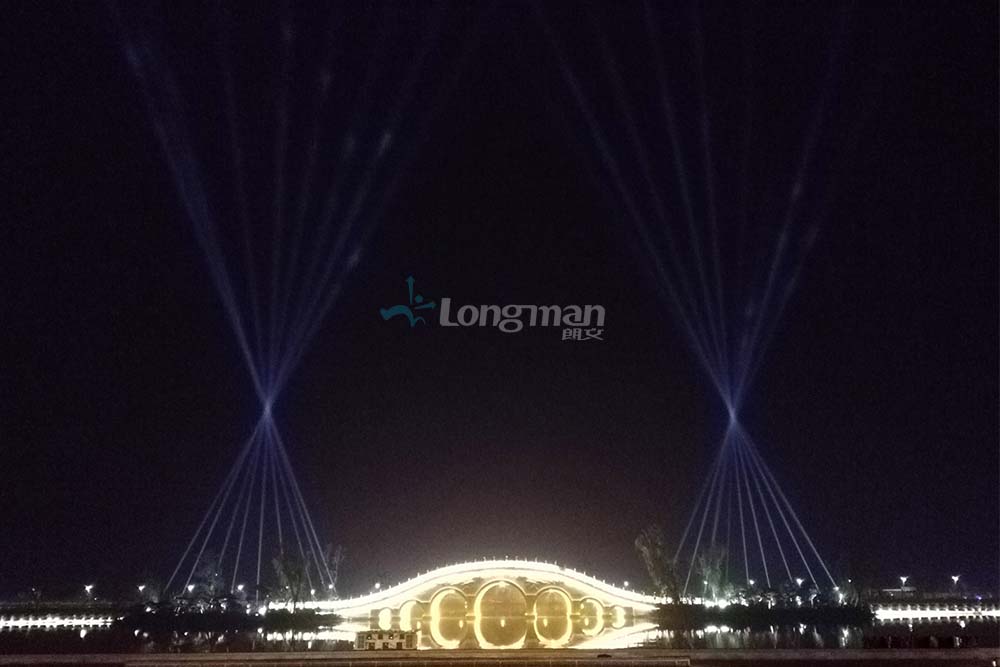

Throw Distance: Parallel beam projection up to 3km
Control Protocol: DMX512 with RDM (remote addressing via console)
Channels: 14/18 modes
Display: 2.8" full-color LCD (180° invertible)
Lamp Control: Remote lamp on/off function
Pan/Tilt: Three-phase stepper motors (auto-calibration, 8/16bit resolution)
Pan: 540° rotation with micro-adjustment
Tilt: 270° rotation with micro-adjustment
Physical Specifications
Parameter Value
Cooling Japanese fans + chip-controlled airflow + optimized thermal structure
Net Weight 32kg
Gross Weight 35.5kg

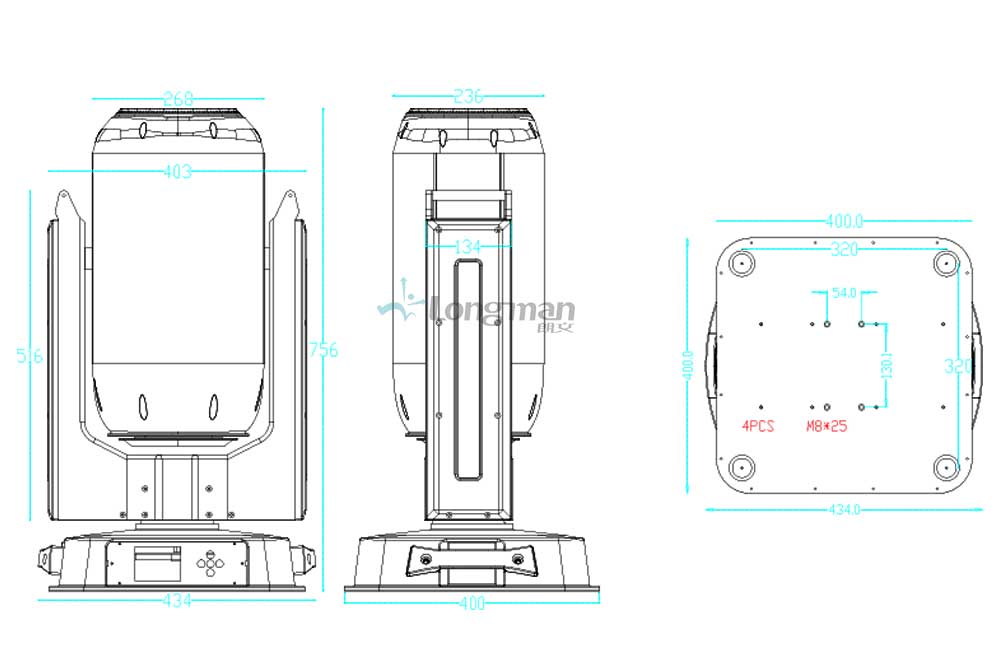

Fixture Size 430(L)×400(W)×780(H) mm
Case Size 570(L)×500(W)×930(H) mm
Key Terminology Verification
Bidirectional Rainbow: Industry standard for color wheel effects
RDM Protocol: Remote device management over DMX512
Three-phase Stepper Motors: Precision movement standard
Feature Highlight
Standalone Programming & Master/Slave Sync:
Capable of creating custom effects via the fixture's onboard display, enabling synchronized master/slave operation
without external controllers.
