Input voltage: AC110V-220V/50-60HZ
Rated power: 480W
Light source specification: 400W white light LED engine module
Light output of source: over 15000 lumens
Light source life: 50, 000 hours
Color temperature of light source: 8000K
Color rendering index: over 75
Lumen illuminance: 5 meters 80000 lx
Zoom angle: 4°-35° degrees
Channel mode: 20 channels
Horizontal scanning: 540 degrees (16bit precision scanning) electronic error correction
Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment
Focus adjustment system: linear adjustment from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, the light spot is soft and natural
High-speed strobe: 0-30 times/second. ADJUSTABLE SPEED FLASHING EFFECT. Strobe macro function
Color: 8 colors + white light. Color half-color function
Color system: independent CMY+CTO color mixing system.
Fixed patterns: 12 fixed patterns + white light
Rotating pattern: 7 glass patterns, each glass pattern can be reversed independently
Prism system: standard with a single 6-row prism and 8 prisms, each prism can be reversed independently.
Macro function: control desk reset function, self-propelled mode, master-slave mode
Control signal: international standard DMX512. With RDM function, you can upgrade the software online and dial the address code.
Cooling method: use axial fans to strengthen cooling
Safety device: with electronic temperature control overheating protection, electronic temperature control automatic power-off protection when the overheating system fails
Appearance material: high-temperature resistant plastic
Protection IP rate: IP20
Working environment: -20 degrees, 40 degrees
Net weight of the product: 22.5KG
Size: 38*27*65CM (L*W*H)

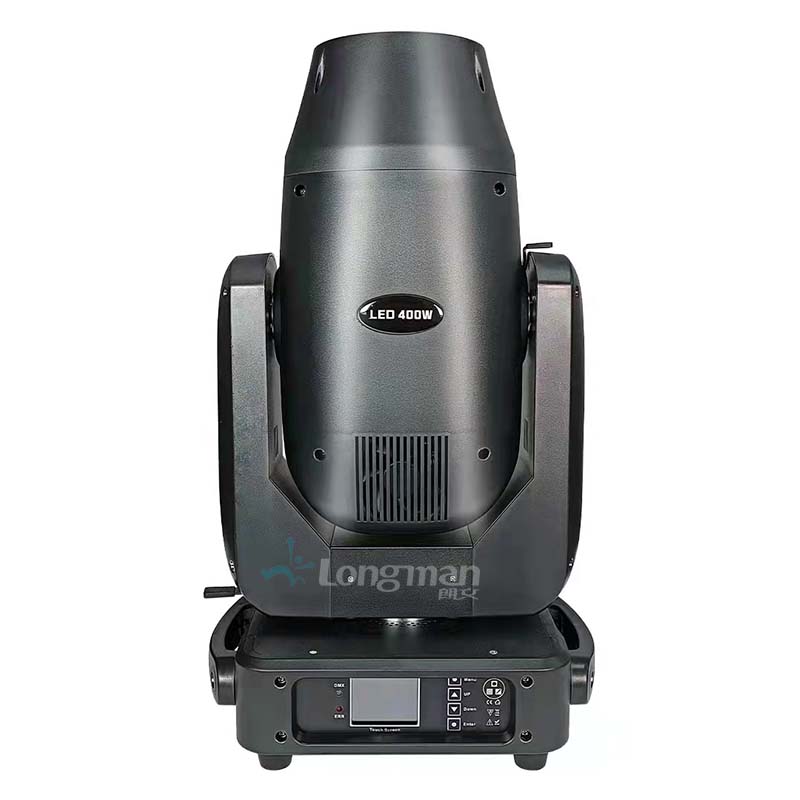

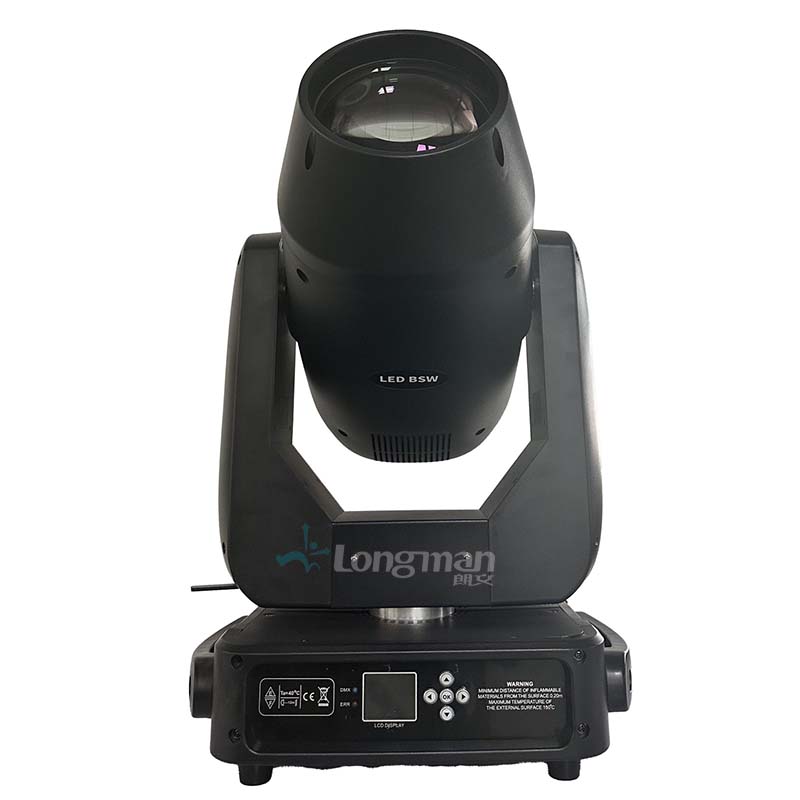

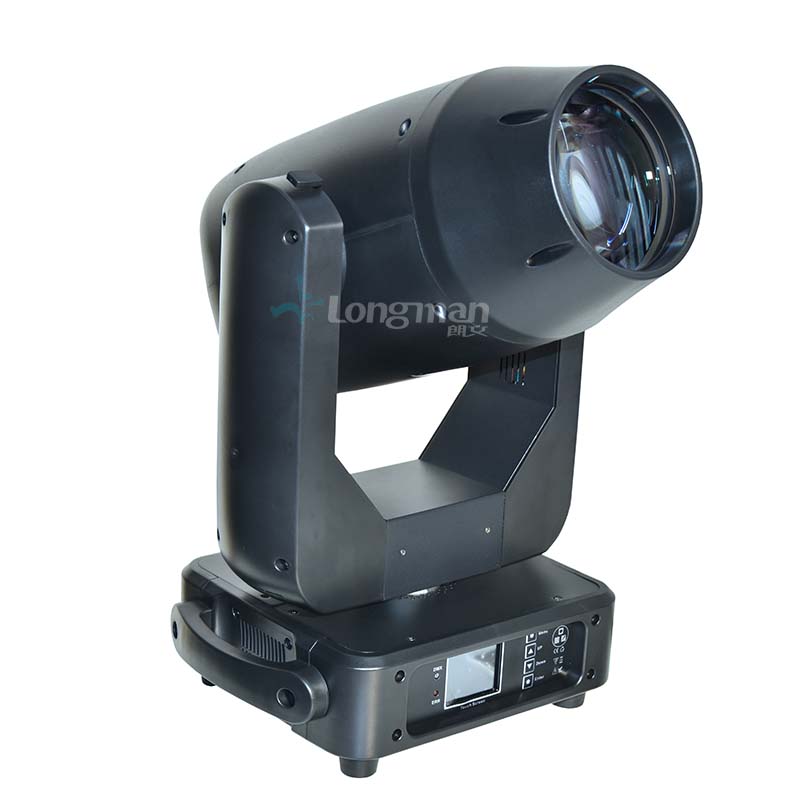

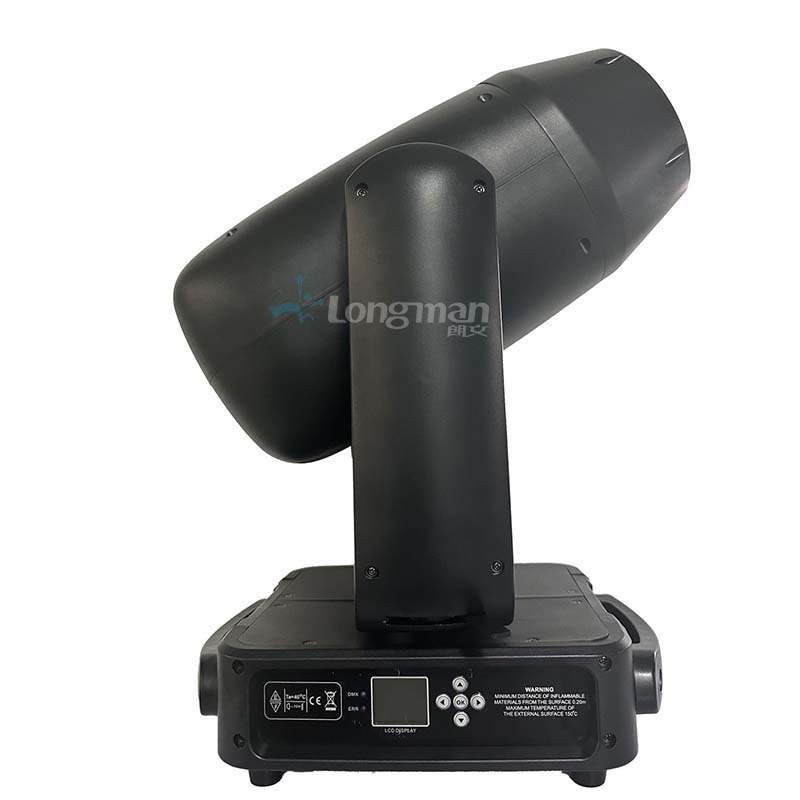

Fugue HQ860 – High-Powered Moving Head LED Profile Light with BSW Hybrid Capabilities
The
Fugue HQ860 from Longman redefines professional stage lighting by delivering a powerful, precise, and versatile lighting experience in a remarkably compact form. Designed for indoor and outdoor stage productions, concerts, and visual shows, this
moving head light LED profile light combines innovative features with next-generation LED performance.
A Breakthrough in LED Moving Head Technology
As the first true
LED alternative to traditional 700W/800W HID discharge fixtures, the Fugue HQ860 stands out with its 400W white LED engine, delivering over 15, 000 lumens of output. It offers a
flat field, razor-sharp imaging, and high contrast—making it ideal for both surface projection and aerial effects.
The advanced
BSW hybrid functionality (Beam, Spot, Wash) ensures seamless versatility across various lighting scenarios, eliminating the need for multiple fixture types. Its performance rivals high-output discharge fixtures while providing the
efficiency and reliability of modern LED systems.
Superior Optics and Zoom Capabilities
Equipped with Longman’s precision-engineered optical system, the HQ860 boasts a
zoom range of 4° to 35°, enabling both narrow beam effects and wide wash coverage. The optical clarity is supported by Longman’s industry-leading design, ensuring consistent photometric performance with no light loss or distortion.

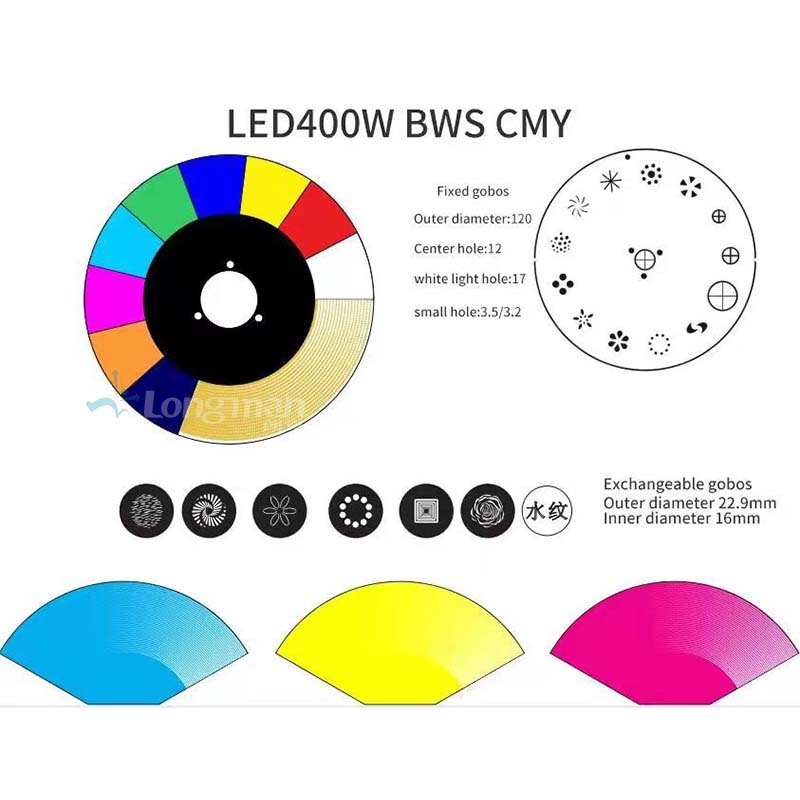

Dynamic Color and Gobo Effects
With a
fast CMY color mixing system and a
linear CTO channel, users can achieve both deep, saturated hues and precise white color temperatures. The unit’s native 8000K LED source avoids the metallic white tone common in other fixtures, offering a more natural lighting palette. An
8-color wheel with an enhancement filter expands creative possibilities, while the

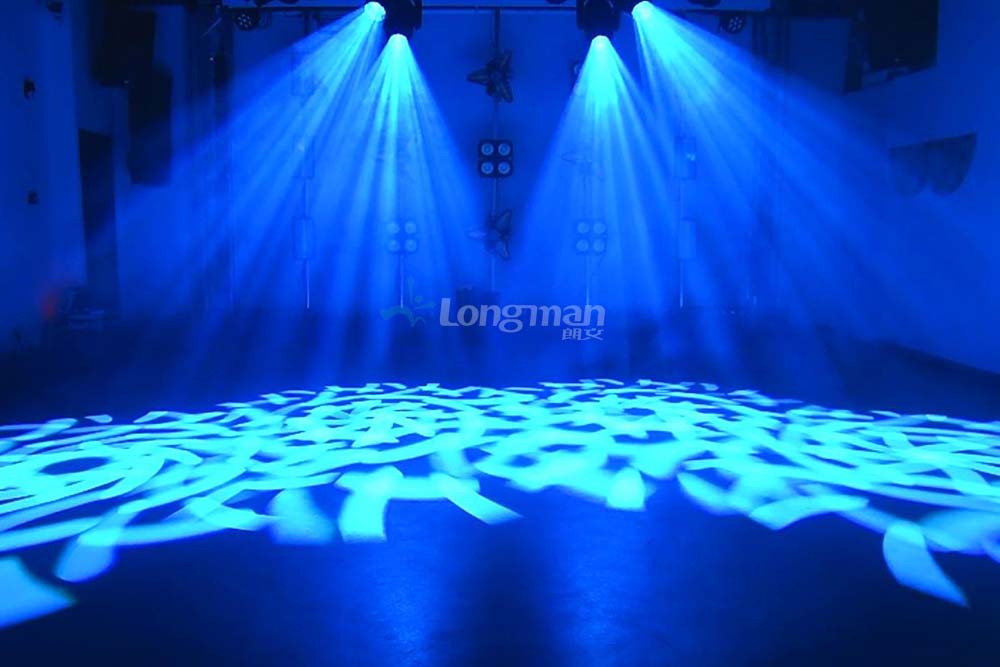

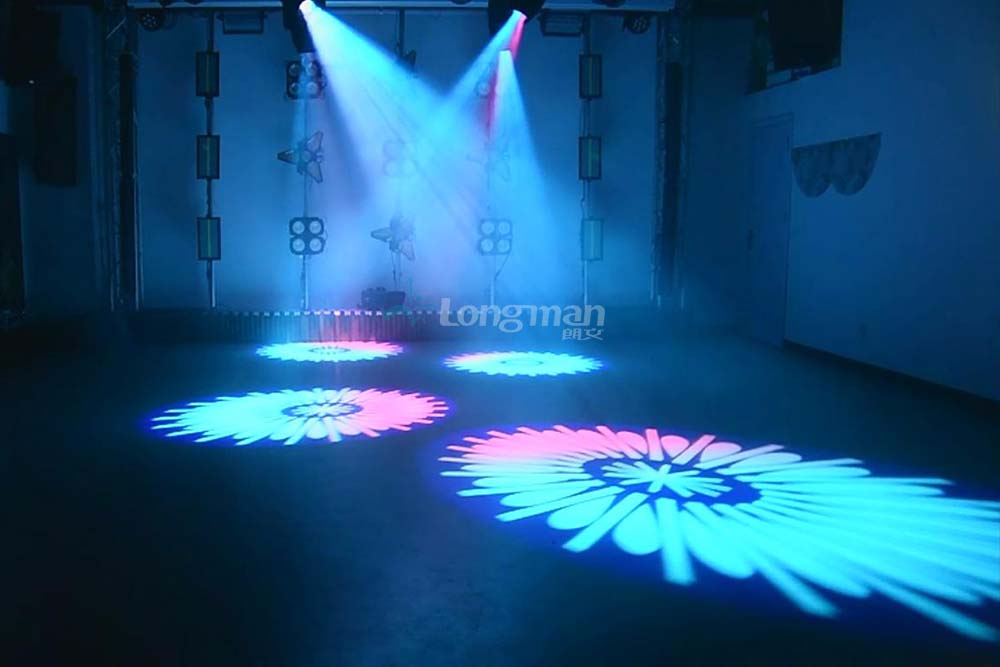

rotating gobo wheel features seven high-definition gobos for stunning mid-air and surface projections.
Compact Size, Big Impact
Despite its small footprint, the Fugue HQ860 is one of the
lightest and most compact moving head LED profile lights in its class. This makes it perfect for rigging on trusses in live shows, events, studios, and touring applications where space and weight are critical.
Key Features at a Glance:
- 400W white LED engine (15, 000+ lumens)
- Beam/Spot/Wash hybrid (BSW) effects
- Zoom range: 4°–35° with high optical precision
- CMY color mixing + linear CTO
- 7 rotating HD gobos, 8-color wheel
- Compact & lightweight body for flexible rigging
- Super-fast pan/tilt movement
- Consistent color and brightness with LM-Bright technology
- Low noise operation for broadcast and quiet venues
Built for Today’s Stage Demands
The Fugue HQ860 is not just another moving head beam light—it’s a complete solution for lighting designers seeking versatility, power, and reliability in a single fixture. Whether used for tight beam effects, rich spot projections, or full-stage washes, this
moving beam spot wash BSW light delivers excellence in every aspect.
Longman continues to push boundaries with cutting-edge LED lighting tools, and the
HQ860 series stands as a benchmark for the future of entertainment lighting.
