Application Concept

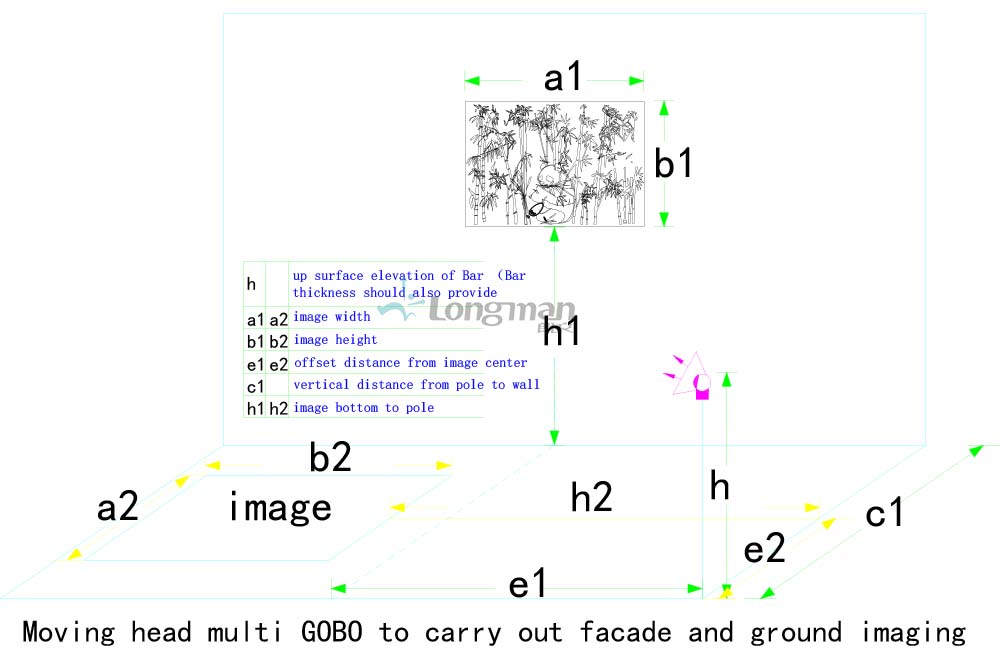

this product is rectify imaging business machine，could cover many positions as scale relationship require；
multi simple images on different position outdoor，compatible to ground，walls，sculptures etc。
with 15mm imaging area to offer 159 thousand pixels for round image，101 thousand pixels for rectangle image
imaging position，size，direction recover，comprehensive accuracy less 0.7deg
General Information
Pan：540° rotation，tilt：270°rotation
fixed wheel image with pre-calculated rectify including all XYZ slope
Design Standard：RDM and WH/T 32—2008 DMX512-A
Control interface：DMX，22 or 26 Chanels
Program ：on display program optional
Light Technical
Luminous Flux（pure white output）12000lm（+10%，-0%）
Original Correlated Color Temperature (Nom >8500K
Luminous Efficacy (rated) (Nom) >24lm/w white output
Color rendering index (CRI) >70
Optical type：linear imaging technology, rectify and blend imaging
fixed wheel position，6.5-29 deg zoomable
minimum6.5 deg（throw ratio 0.113），intensity 1.4 million cd
maximum 29 deg（throw ratio 0.517），intensity 72 thousand cd
rotate wheel position，7.7-30 deg zoomable
minimum 7.7 deg（throw ratio 0.135），intensity 0.96 million cd
maximum 30deg（throw ratio 0.536），intensity 58 thousand cd
with frosted color rendering function；
with 1 center multi facets prism and 1 line multi facets prism
Color wheel ：13 pcs of color and empty
fixed wheel position：：12pcs＋and empty，could be square GOBO
rotate wheel：7pcs＋and empty
optional CMY or CTO（with extra price）
available documents：IES，Ltd
Operating and Electrical
Input Voltage AC110V-240V/50-60HZ
Rated Power 500W，+/-10%
Power Factor (Fraction) >0.9
Initial Performance (IEC Compliant)

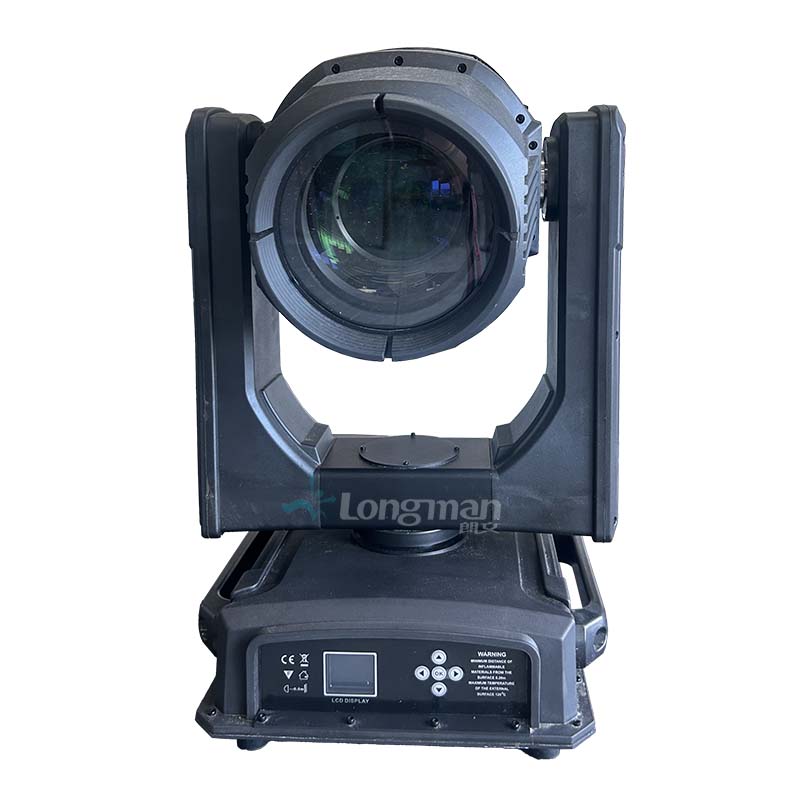

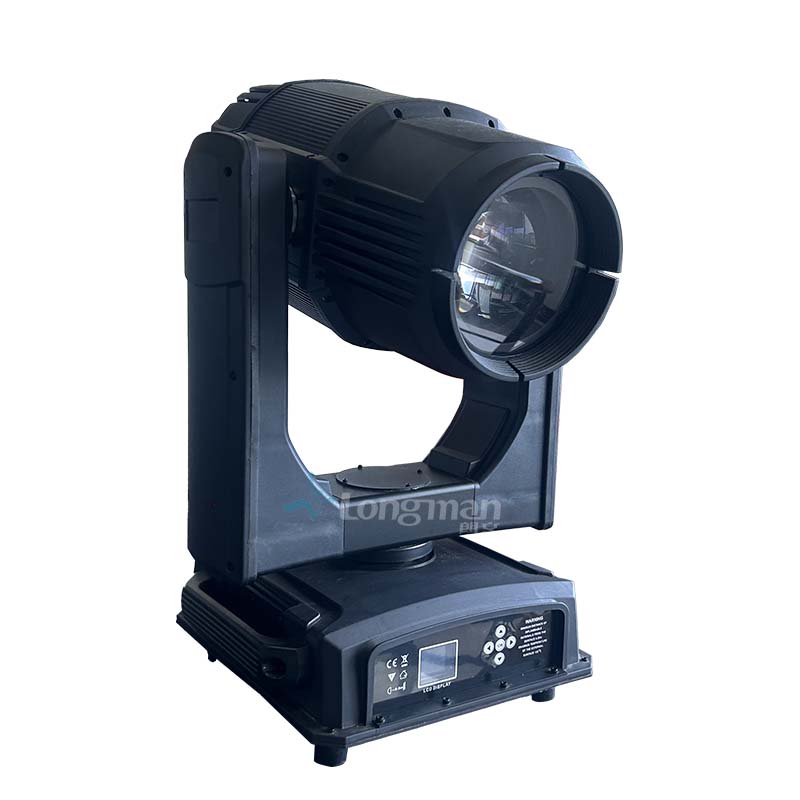

Mechanical and Housing
Housing Material Aluminum，K9 Glass and anti UV Nylon
Housing Color ：common Gray or black
inner GOBO position with extra fans cooling

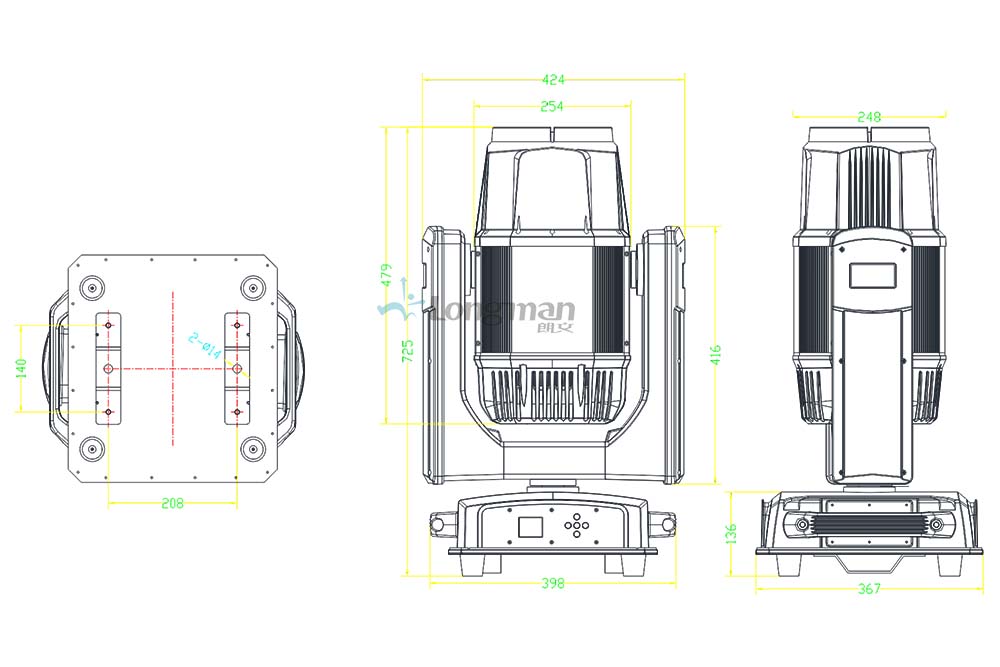

available dimensional drawing with obj，dwg
Net weight：27Kg
Size：424*367*725mm
Optional recommend flight case 92*47*90cm（with extra price）
Approval and Application

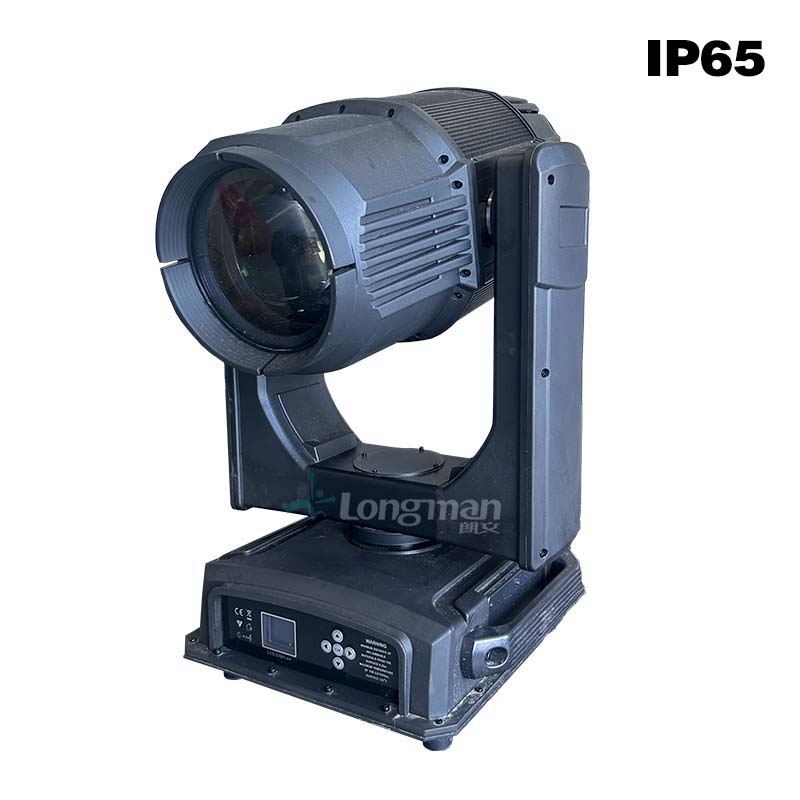

Ingress protection code IP65 [Dust penetration-protected, jet-proof]
Protection class IEC ： Safety class I
CE mark Chinese GB7000，UL1573，EN55015 etc
Connection：Screw connection block 3-pole Cable
Ambient temperature range -20 to +45 °C
