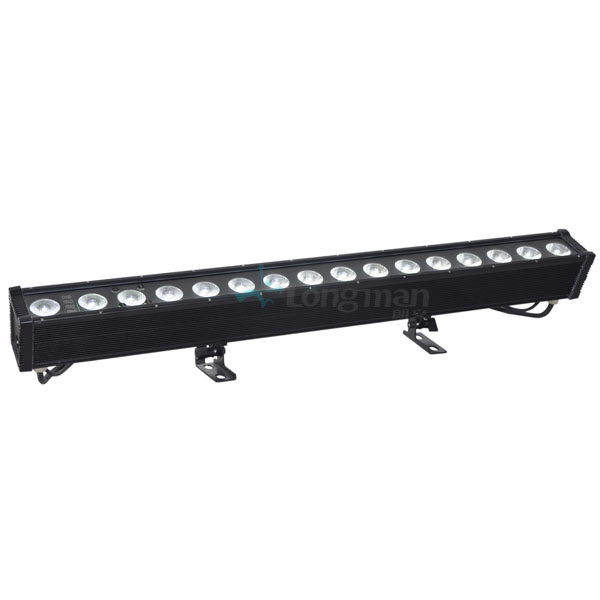

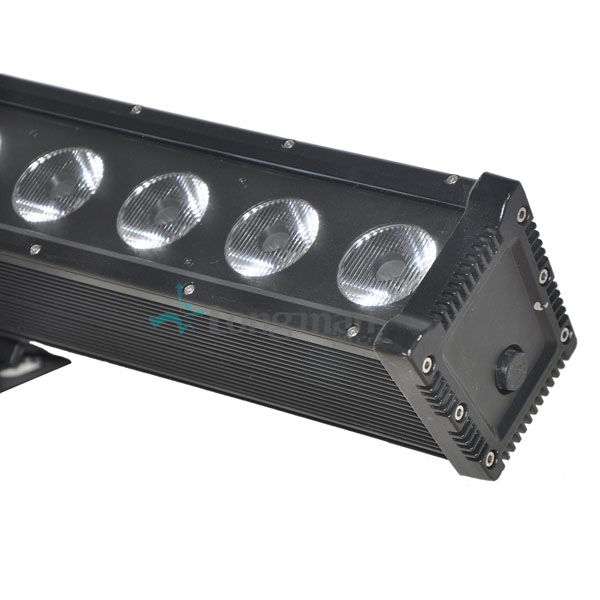

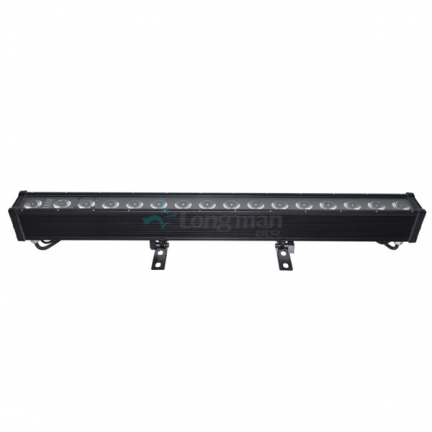

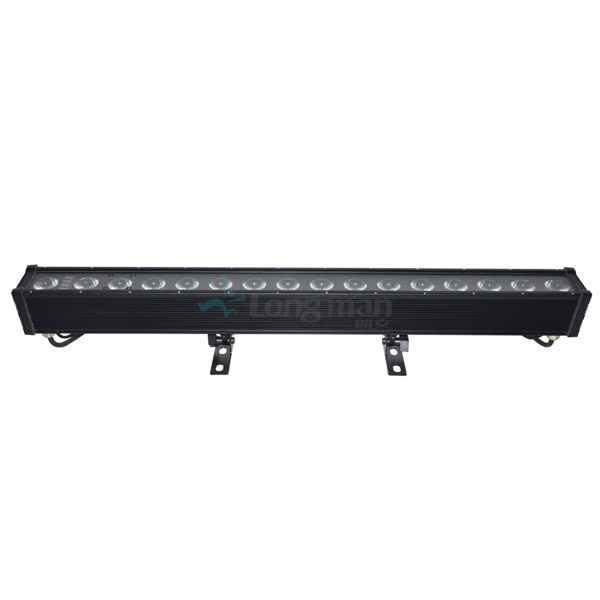

Vpower L800-touch display LED wall wash lighting

Brief description：
1.16pcs 15W RGBW LED
2.7670 Lumens output
3.Glass surface to accomodate display board，less water leakage risk

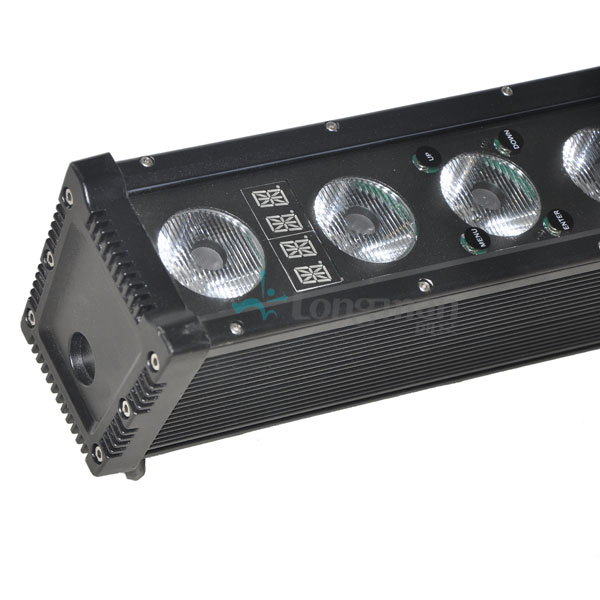

4.Touch LED display

Size and Weight: 999*95*184mm/6.5KG

Inquiry

Specification

Features:

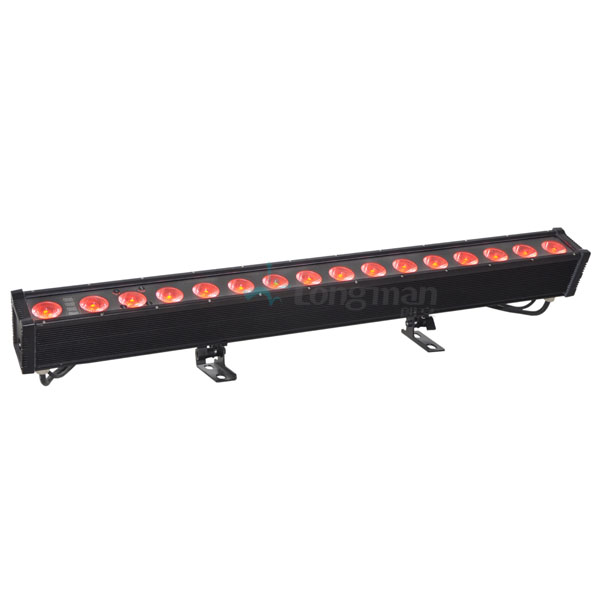

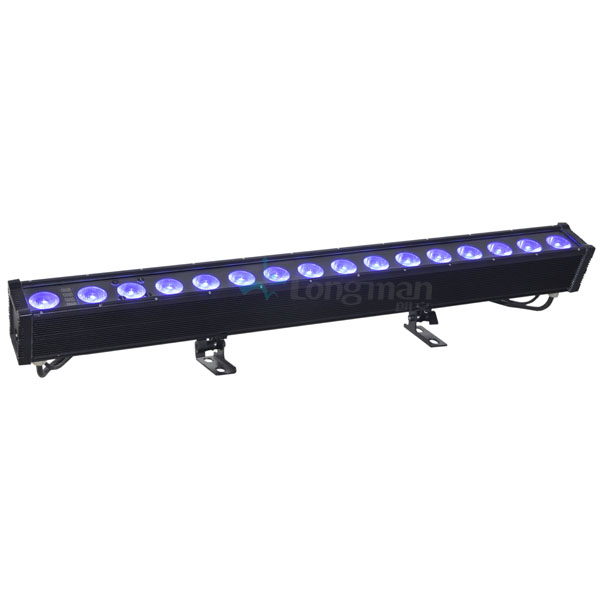

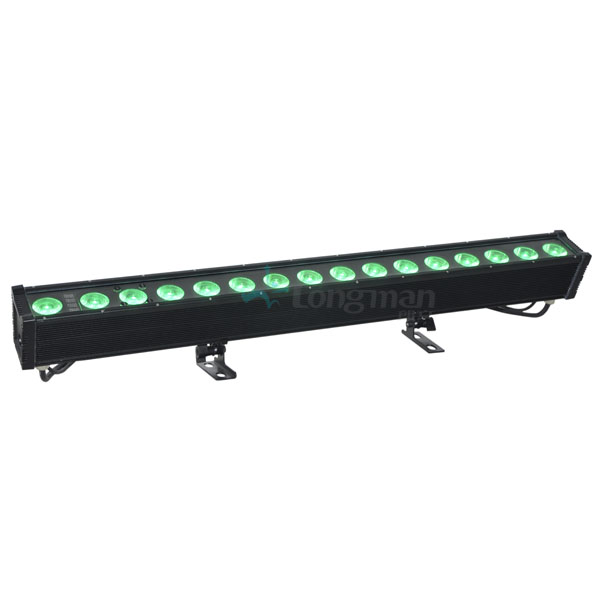

1. RGBW Color mixing to achieve even color and tunable white.
2. 50mm Diameter LED, Expert optical solution.
3. 7670Lumens Output, output 90% Lumens within 10% Intensity.
4. Glass surface to accomodate display board，less water leakage risk.
5. Touch LED display, no easy broken buttons, 2 minutes no operation no display
6. LED Display board to shows DMX condiction, assure an easier cable testing.
7. Innner Glass surface is processed as condensation-free, also with waterproof air valve to balance pressure.
8. Use SMT and low temperature reflow soldering tech to make sure heat conduct and heat sink.

Specifications:

Voltage input	AC 90-240V 47-63Hz，PF>0.9
Voltage output	DC24V，SMPS longevity 15000Hours
Rated power	200W（Typ.175W@220V 50Hz），Flash Rate Endurance>12Hz Full/void load
Luminaire Efficiency	16pcs 15W 1000mA Driving, Full on 7670Lumens, Effiacy >41.5lm/W
Color Eveness	Performance Class, Standard deviation of Chromaticity SDC<0.005, Ra>90，R9>50
LED Color	Red625nm，Green525nm，Blue460nm，White6000K
Field Angle(10%)	65X15°, max intensity 32243Cd Full on
Control Habit	Variable Channel options，32 bit dimming, smooth in low DMX Value dimming, no vision shock
Control mode	Meet E1.11 - 2004 USITT DMX512-A/Master could set Color and beam angle on display board
Dimming Curve	Dim0-4 Curve optional, PWM>1500Hz, video flicker free
Display	Touch operation, LED display show DMX situation and aotu turn off when no operation
Housing material	AL6063 For Lampbody, ADC12 for Sidecover，standard Matte balck, could customized matt silver
Cooling Method	Neutral Heatsink, Thermal protection：NTC overheat protection
Soukect	IP67 Power connector 3C*2.5mm2 cable(VDE, CCC Etc), Signal with IP65 3XLR, Both daisy chain
Soldering technology	180℃Reflow Soldering, makesure 15000 hours Longevity for SMPS and mainboard
Accessories	Power adpator Cable as stadard, Frosted piece, Hook, Safty Cable available
Safty	Class II, Flame Rating V-1, Protect Rated IP65
Operate temperature	-20~+55℃，Light board peak temperature 80℃, intelligent control
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Weight	6.5KG，with 180Deg. Rotatable supporting bracket
Size	LWH=99995184mm(Vertical shine up)
