Parco Zoom Penta A- Indoor led zoom par can light

Features:
1. RGBAW Color mixing to achieve even color and tunable white, to opimize Ra and R9.
2. Patent new lamp body, Amitaion of pumkin design, apears nature and sincere.
3. Step moto DMX control linear Zooming，field Angle 8-52°, suitable for all kinds of height install.
4. 3340Lumens Output, output 90% Lumens within 10% Intensity at 52°.
5. Touch LED display, no easy broken buttons, 2 minutes no operation no display
6. LED Display board to shows DMX condiction, offer 2 versions 2.4GHz Wireless DMX.
7. Back cover with holes to have better ventilation for heatsink
8. Use SMT and low temperature reflow soldering tech to make sure heat conduct and heat sink.


---

Specification:

Power input	AC 90-240V 47-63Hz，PF>0.9
Output	DC24V，SMPS longevity 15000Hours
Rated Power	120W（Typ.96W@220V 50Hz），Flash Rate Endurance>12Hz Full/void load
Luminaire Efficiency	36pcs3W 700mA Driving, Full on 3340Lumens, Effiacy >35.2lm/W
Color Eveness	Performance Class, Standard deviation of Chromaticity SDC<0.005, Ra>90，R9>80
Field Angle(10%)	Min8 °, Max52°, Step Moto Zooming, max intensity81500Cd
LED Color	Red625nm(8PCS)，Green525nm(10PCS)，Blue460nm(6PCS)，Amber595nm(6pcs), White6000K(6PCS)
Wireless Details	2.4GHz，Could choose W-DMX and LM-DMXA0 on display board
Control mode	Meet E1.11 - 2004 USITT DMX512-A/Master could set Color and beam angle on display board
Control signal	DMX，32 bit Dim 4 square law dimming, smooth in low DMX Value dimming, no vision shock
Dimming Curve	Dim0-4 Curve optional, PWM>1500Hz, video flicker free
Display	Touch operation, LED display show DMX situation and aotu turn off when no operation
Housing material	Die cast ADC12，standard Matte balck, could customized Pumkin color
PWM frequency	>600Hz, Flash Rate Endurance Full Load:>12Hz Full load/void load flash
Beam Angles Optional	8°, 15°, 18°, 45*15°Etc
Housing material	Die cast aluminum

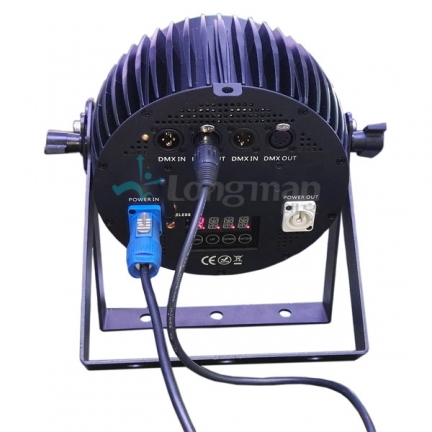

Soukect	Power compatible with PowerCON Blue and white, Signal with both 3XLR and 5XLR daisy chain
Cooling Method	Natural Heasink, Thermal protection：NTC overheat protection
Safty	Class II, Flame Rating V-1, Protect Rated IP32
Soldering technology	180℃Reflow Soldering, makesure 15000 hours Longevity for SMPS and mainboard
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Accessories	Power adpator Cable as stadard, Barndoor, Hook, Safty Cable available
Size	270*166*284mm
Weight	5.6KG，with double yokes 3mm thick supporting bracket
Operating temperature	-20~+55℃，Light board peak temperature 80℃, intelligent control
