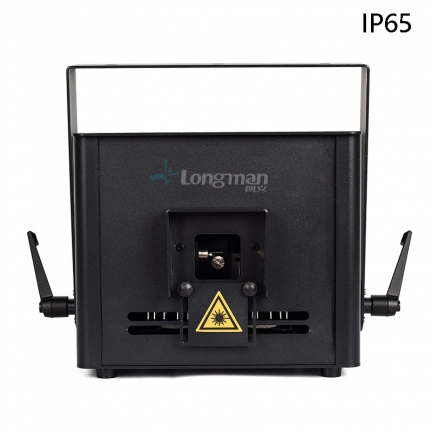

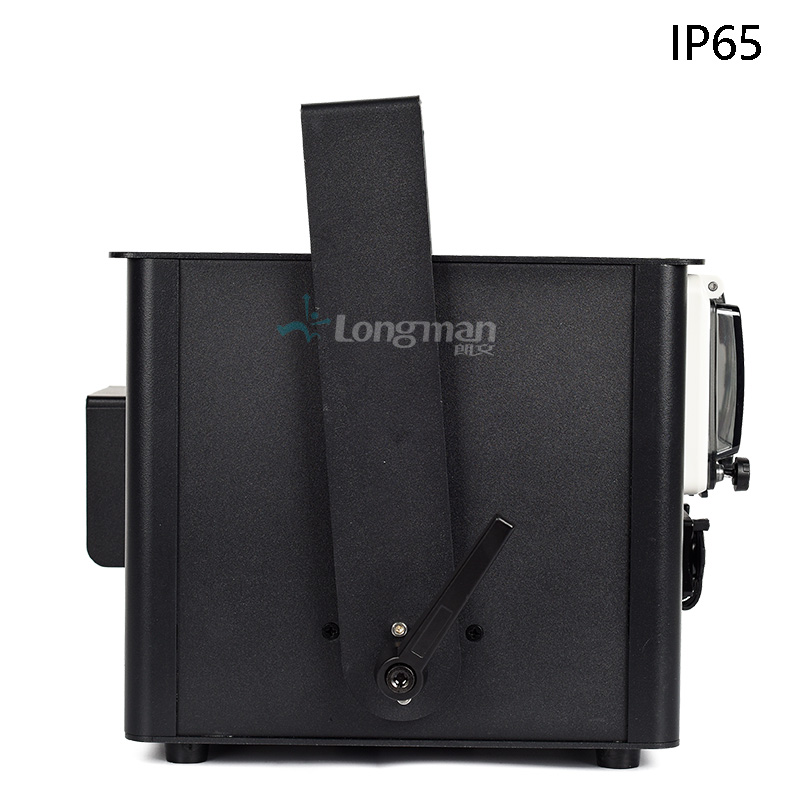

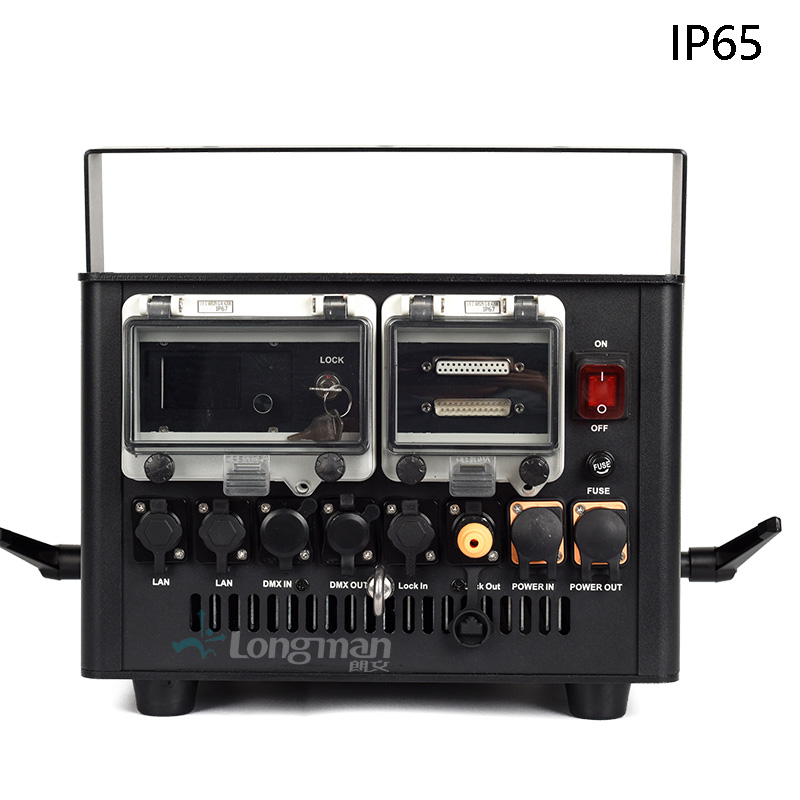

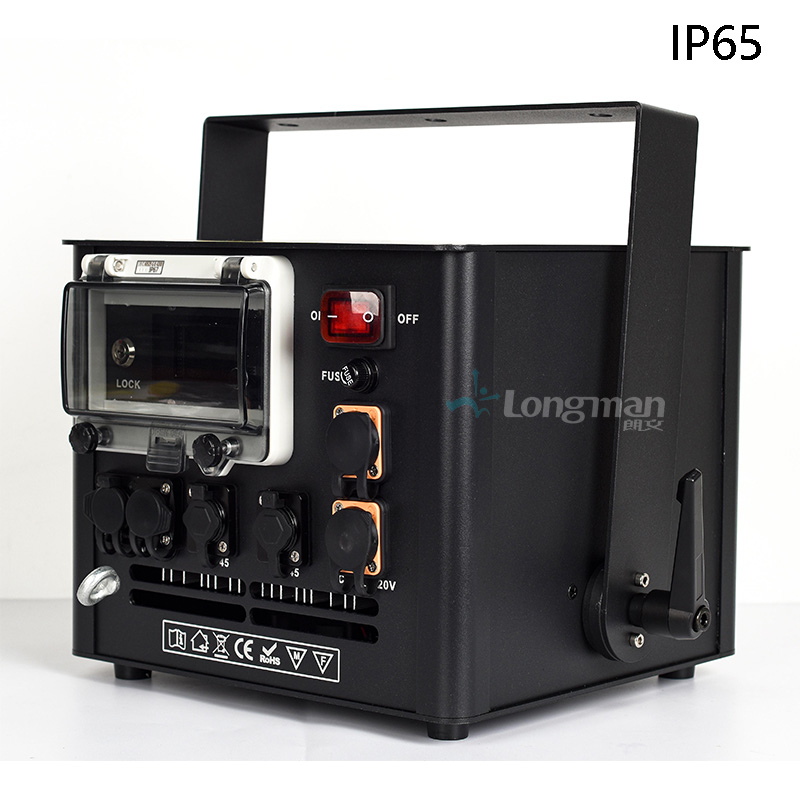

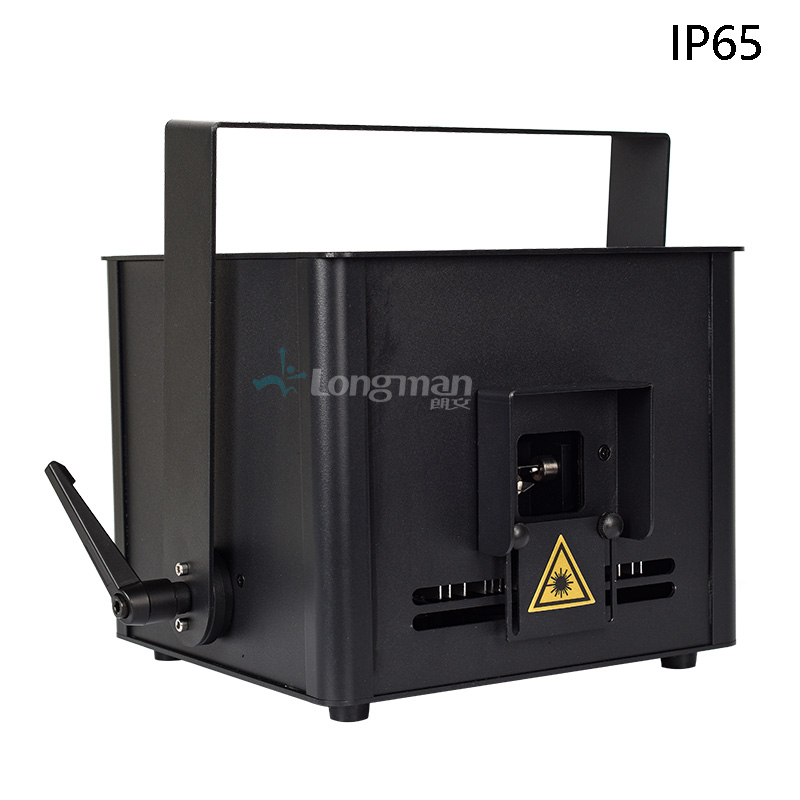

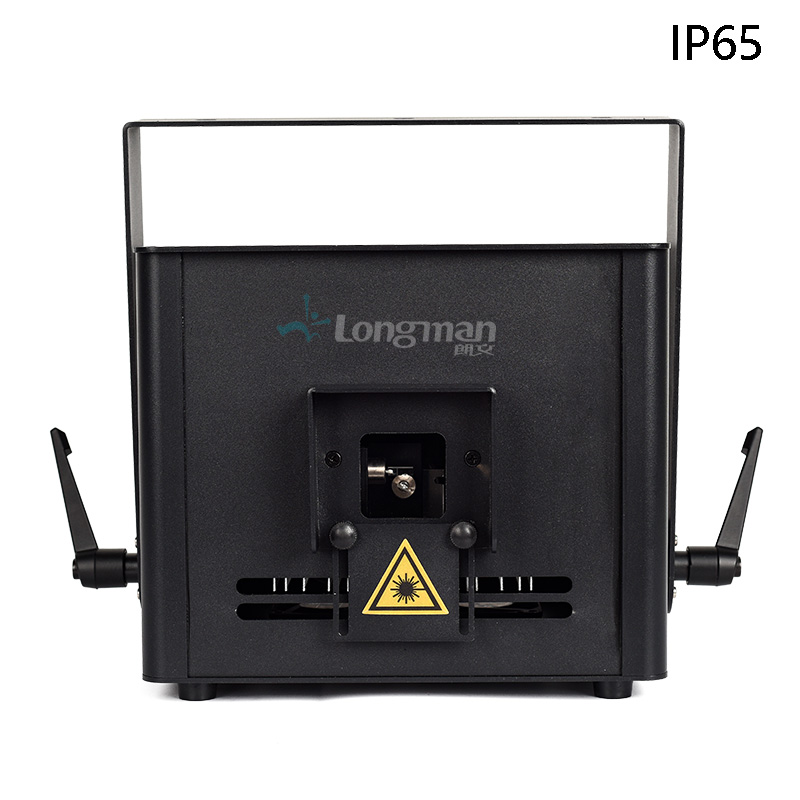

virtuoso Ap21







Model and Laser Spec: Laser Color, Wavelength/Power
RGB20W: Red 638nm/5W + Green 520nm/8W + Blue 445nm/8W (Dimmable Brightness)
Output Colors:
True Color, Red, Green, Blue, Yellow, Cyan, Purple, White

Scanner:
Galvo Speed: 40Kpps
Scanning Angle: 60°

Working Modes:
ILDA, LAN, Pangolin FB4

Ingress Protection Rating: IP65
Input Voltage: AC100~240V/50~60Hz
Rated Power: 200W
Fuse: 3A

Fixture Dimension: 45cm (Length) × 40.5cm (Width) × 33cm (Height)
Net Weight: 21.4kg
Flight Case Dimension: 50cm (Length) × 46cm (Width) × 48cm (Height)
Gross Weight: 34kg

Shipping list includes the following items (Note: flight cases extra).
La lista de envío incluye los siguientes artículos (Nota: flight cases no incluidos,  costo adicional).
A lista de embarque inclui os seguintes itens (Obs.: flight cases cobrados à parte).
