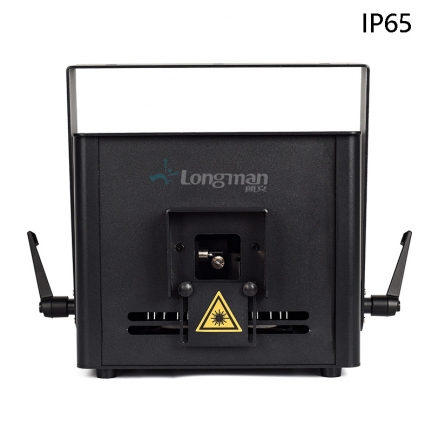

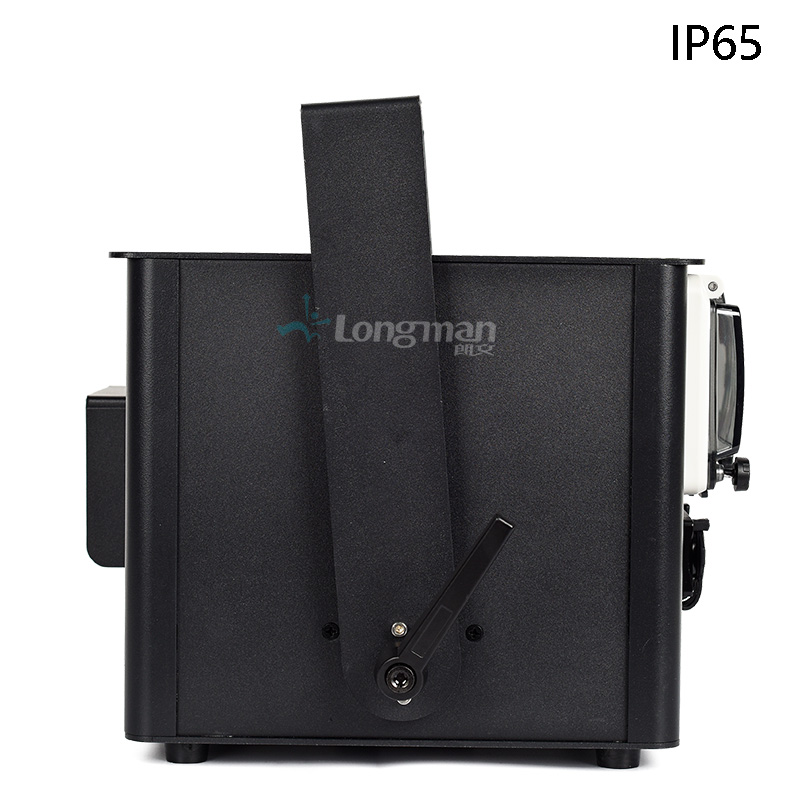

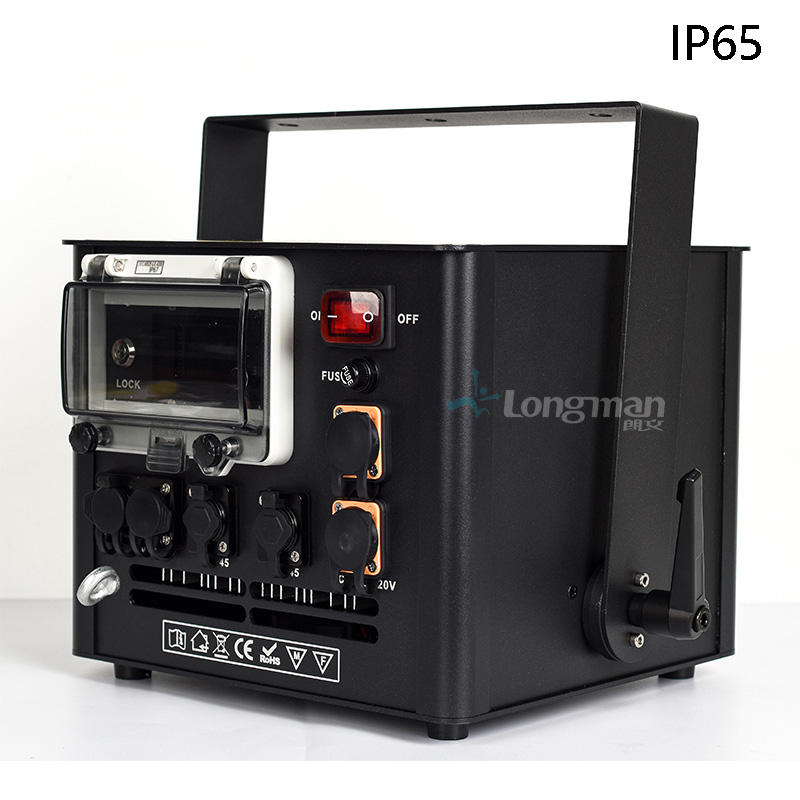

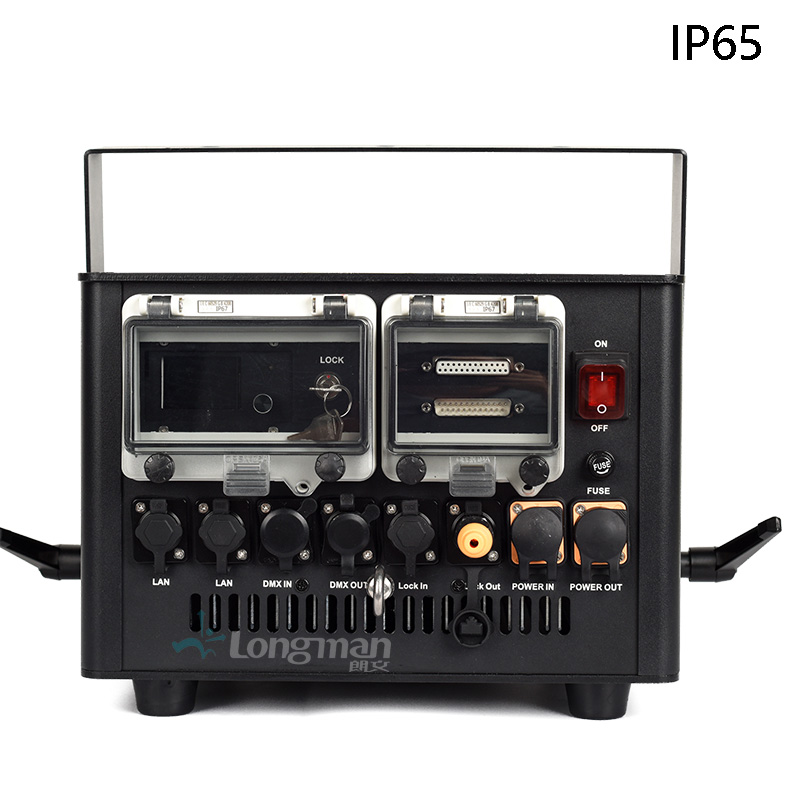

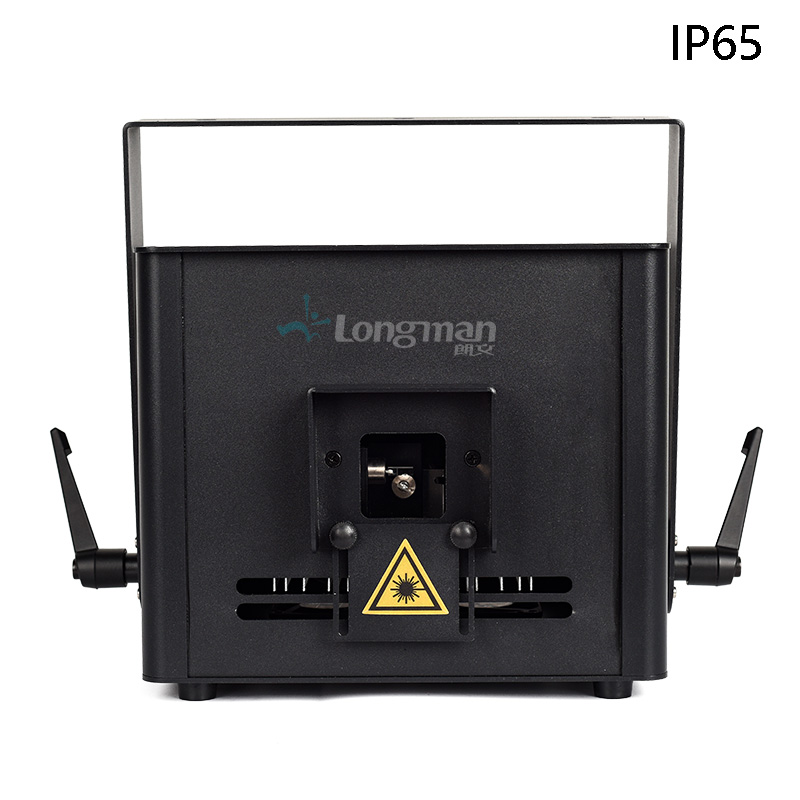

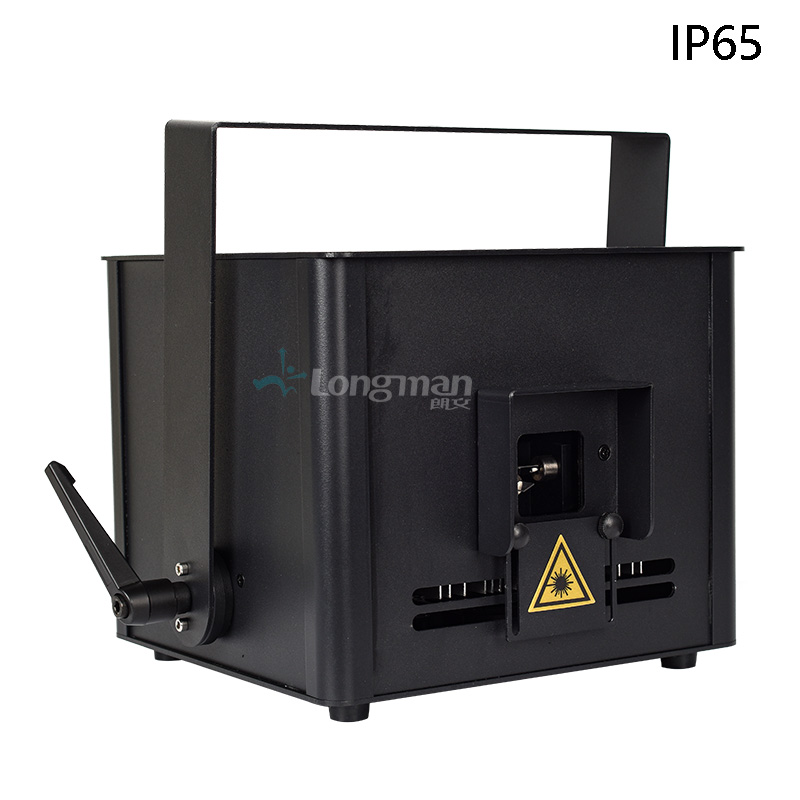

virtuoso Ap30







Model, Laser Color, Wavelength / Power
RGB 30W
Red: 638 nm / 8W + Green: 520 nm / 10W + Blue: 445 nm / 12W (Brightness Adjustable)
Output Colors:
True Color, Red, Green, Blue, Yellow, Cyan, Purple, White
Scanner
Galvo Speed: 30Kpps
Scanning Angle: 60°
Working Modes
ILDA, LAN, Pangolin FB4
Ingress Protection Rating: IP65
Input Voltage: AC 100~240V / 50~60Hz
Rated Power: 350W
Fuse: 6A
Fixture Dimensions: L 45 × W 40.5 × H 33 cm
Net Weight: 21.4 kg
Flight Case Dimensions: L 50 × W 46 × H 48 cm
Gross Weight: 34 kg

Shipping list includes the following items (Note: flight cases extra).
La lista de envío incluye los siguientes artículos (Nota: flight cases no incluidos,  costo adicional).
A lista de embarque inclui os seguintes itens (Obs.: flight cases cobrados à parte).
