In contemporary landscape design, lighting transcends mere illumination; it serves as a dynamic medium to enhance aesthetics, functionality, and ambiance. Integrating image projection techniques, such as gobo projectors and image projection lights, has revolutionized how outdoor spaces are experienced after dusk.
Gobo Projectors: Crafting Visual Narratives
Gobo projectors utilize stencils—known as gobos—to project patterns or images onto surfaces. This technique allows for the customization of lighting effects, making it ideal for events, branding, and architectural features. The future of gobo light technology is marked by innovations such as LED advancements, high-resolution imaging, interactive capabilities, and 3D projection mapping, all contributing to more dynamic and immersive lighting designs.

Image Projection Lights: Enhancing Architectural Design
Image projection lights offer a sophisticated method to display images or patterns on building facades, interiors, and landscapes. By integrating these lights into architectural designs, spaces can be transformed into canvases for artistic expression, storytelling, and branding. This approach not only enhances visual appeal but also adds depth and context to architectural elements.
Innovations Shaping the Future
The integration of 3D projection mapping is revolutionizing architectural lighting. This technology allows for the projection of images onto three-dimensional surfaces, creating the illusion of movement and transformation. When combined with gobo projectors, designers can craft complex, animated visuals that adapt to the contours of buildings, offering a new dimension to lighting design.

Sustainability and Efficiency
As sustainability becomes a priority, the lighting industry is focusing on energy-efficient solutions. LED technology, for instance, offers lower energy consumption and longer lifespans compared to traditional lighting, making it a preferred choice for modern architectural lighting projects.


Below are detailed examples of these lighting solutions, highlighting their specifications and performance.
Gobo Projectors
Gobo projectors utilize stencils (gobos) to project patterns or images onto surfaces, adding dynamic elements to landscapes. Here are some notable examples:

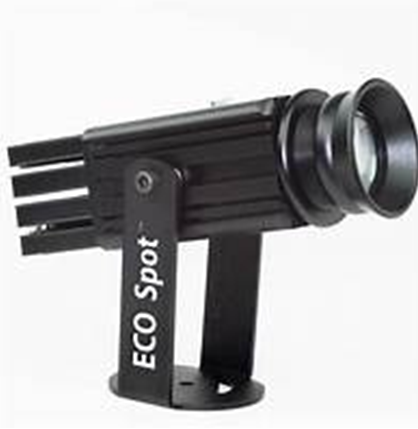

ECO Spot C20PC
A compact 20W LED gobo projector offering bright, crisp projections. It features interchangeable projection lenses and a drop-in gobo holder for easy changes. Dimensions: 2.75” x 3” base; 8-10” length (depending on lens); 5.5” height (including yoke). Weight: 2.4 lbs. Projection distance: up to 80 ft. Gobo size: E-Size ONLY (OD 37.5mm, ID 25mm). Price: $198.00.
gobosource.com

Springtree Elite60
A 60W gobo projector with rotating capability, ideal for logo projections. It delivers clear, crisp visuals and is suitable for various outdoor events. Features: Rotating gobo holder, adjustable focus, and IP65 rating for outdoor use. Dimensions: 8.5” x 5.5” x 5.5”. Weight: 6.5 lbs. Projection distance: up to 100 ft. Gobo size: E-Size.
springtree.net

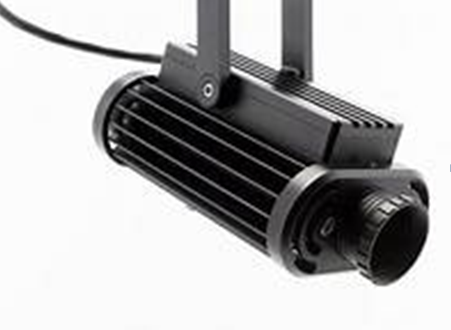

WE-EF FLC210 LED Gobo Projector
A high-performance LED gobo projector designed for architectural applications. It features a spherical and aspherical, double flat convex lens system for precise imaging. Gobo size: T (OD 46.6mm). Dimensions: 7.9” x 7.9” x 7.9”. Weight: 11 lbs. Projection distance: up to 150 ft. IP65 rating for outdoor use.
we-ef.com


Image Projection Lights
Image projection lights project images or patterns onto surfaces, enhancing architectural features and landscapes. Here are some examples:
Rosco Image Spot LED Projector
A versatile 40W LED projector providing bright imaging up to 40 ft away. It features crystal-clear optics and an IP65 rating for both indoor and outdoor use. Dimensions: 5.5” x 5.5” x 5.5”. Weight: 4.5 lbs. Projection distance: up to 40 ft. Lens options: very narrow, narrow, medium, and wide.

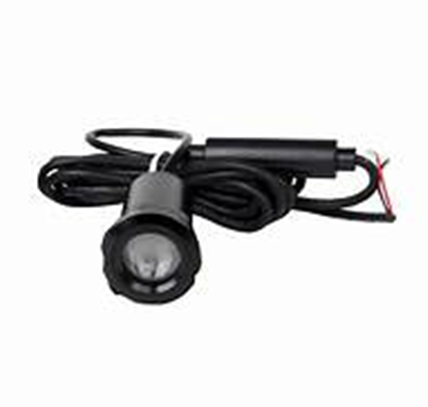

ITC Beam LED Image Projection Light
A compact 2.7W LED image projection light designed for marine applications. It features an aluminum housing and operates on 12-24V DC. Dimensions: 1.5” x 1.5” x 1.5”. Weight: 0.5 lbs. Projection distance: up to 10 ft. IP67 rating for waterproof use.
itc-us.com

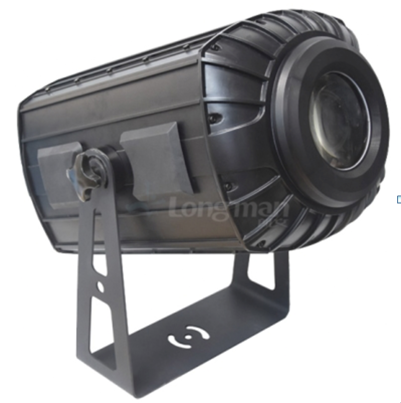

Longman image projection, model Mood-board 800A, with zoom in & out function.
Super bright image light with over 20000 lumens, zoom angle is from 10 degree to 38 degree， with waterproof IP 65.
Longmanlight


Chauvet DJ Gobo Projectors
A range of gobo projectors offering various features and specifications. Models include battery-powered options, DMX control, and wireless DMX capabilities. Dimensions and weights vary by model. Projection distances range from 10 ft to over 100 ft. Lens options include fixed and zoom lenses.


Considerations for Selection
When choosing a projector for landscape design, consider the following factors:

• Brightness (Lumens): Higher lumens indicate brighter projections. For instance, a 100W light bulb emits approximately 1, 600 lumens.

viewsonic.com

• Projection Distance: Ensure the projector's throw distance aligns with your design requirements.
• Lens Options: Interchangeable lenses offer flexibility in projection size and focus.
• Durability and Weather Resistance: IP65 or higher ratings are suitable for outdoor installations.
• Power Source: Consider whether the projector operates on AC or DC power, and its energy consumption.

By carefully selecting the appropriate projector based on these specifications, designers can effectively integrate image projection into landscape projects, enhancing visual appeal and functionality.
