Input Voltage: AC100~240V/50~60Hz
Rated Power: 250W
Fuse: 6A

Red: 638nm/3W; Green: 520nm/3W; Blue: 445nm/4W
Scanning Speed: 20Kpps

Output Colors:
Red, Green, Blue, Yellow, Cyan, Purple, White, True Color (255255255=16, 581, 375 colors)

Galvo Speed: 20Kpps
Scanning Angle: 60°

Working Modes:
Stand-alone, SD Card Playback, DMX Console, Master-slave Synchronization, Computer Software Control

DMX Channels: 34 Channels

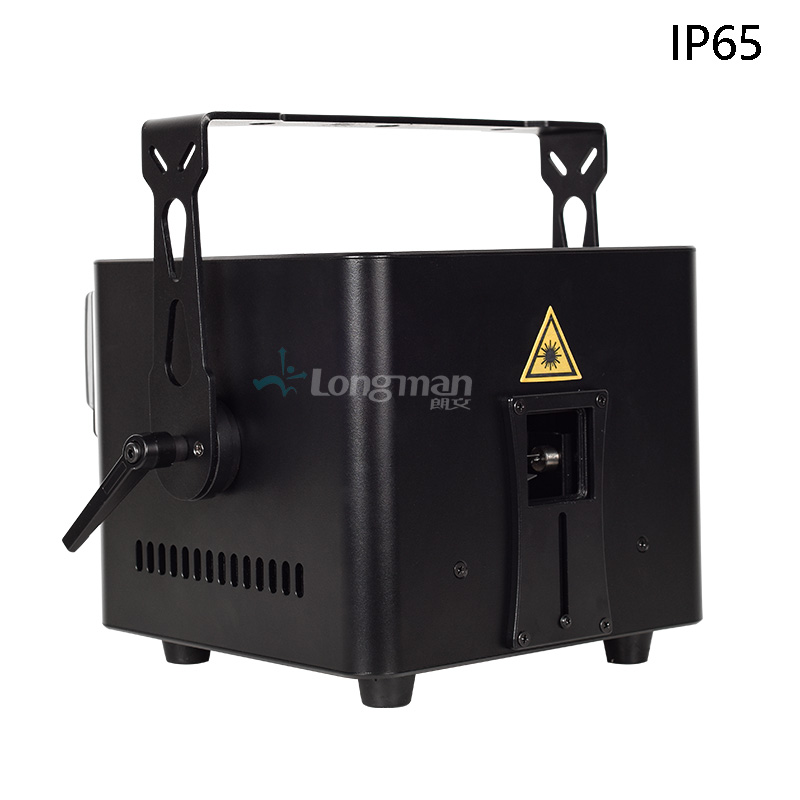

Ingress Protection Rating: IP65

Built-in Programs:
Geometric Patterns: 255
Animated Patterns: 255
Sound-activated Program Duration: 30 minutes
Stand-alone Program Duration: 30 minutes

Memory Card Capacity: 1~8GB
Supported Animations: 255

Fixture Dimension: 350mm (Length) × 210mm (Width) × 200mm (Height)

Shipping list includes the following items (Note: flight cases extra).
La lista de envío incluye los siguientes artículos (Nota: flight cases no incluidos,  costo adicional).
A lista de embarque inclui os seguintes itens (Obs.: flight cases cobrados à parte).
