Brief description：
Power Supply:AC 100-240V,50/60Hz
·Power consumption:600W
·Light Source:High Brightness 400W White LED
·LED life expectancy: ≥20000 Hours
·Color Temperature:7500K
·Color Wheel:linear CMY color mixing，Variable CTO: 3200K-6800K，
·Rotating gobo wheel:7
| Product technical specification (shaking head lamp series) | |||||
| Lamp specification | parameter | ||||

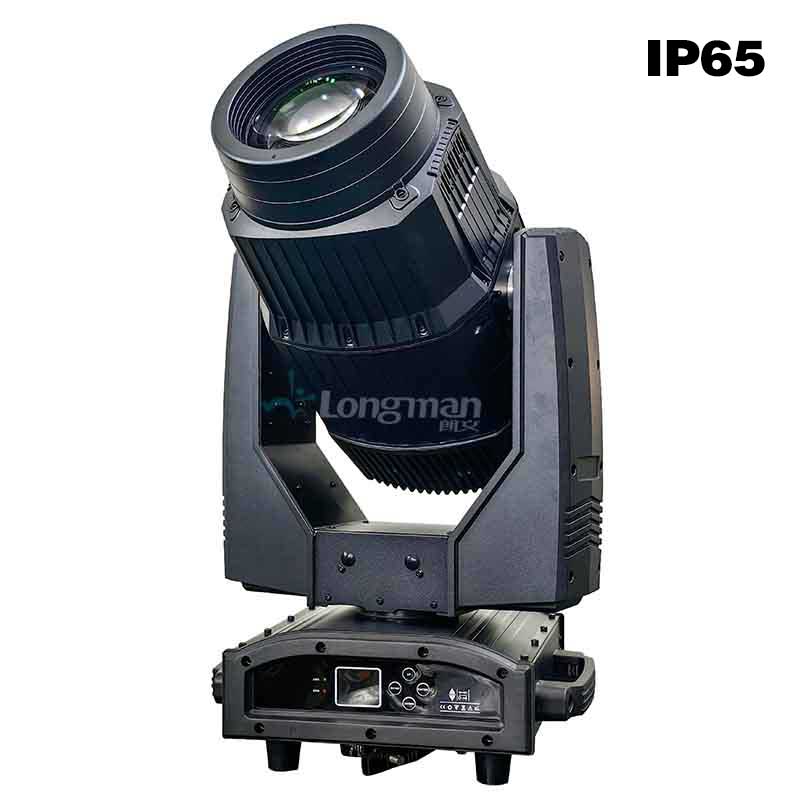

| Product name | LED 400W BSWF 4in1 with CMY+CTO IP65 | Product model | Foresight 600IP | ·Power Supply:AC 100-240V, 50/60Hz ·Power consumption:600W ·Light Source:High Brightness 400W White LED ·LED life expectancy: ≥20000 Hours ·Color Temperature:7500K ·Color Wheel:linear CMY color mixing，Variable CTO: 3200K-6800K， ·Rotating gobo wheel:7 interchangeable gobos+open, gobo shake (adjustable rotating speed and direction) ·Animation wheel:Water ripple wheel ·Prism:3-facet prism, adjustable rotating speed and both directions; ·Framing shutters: 4x fast and smooth framing shutters, each individually controllable; framing module can be rotated at 90°; ·Zoom: electronic linear zoom 4°-35° ·Iris: 5%-100% linear adjustment ·Strobe: 1-25Hz/s, adjustable speed ·Dimmer: 0-100% linear electronic dimmer ·Frost: 0-100% linear frost ·Movement:Pan: 540°, 16 Bit movement resolution Tilt: 270°, 16 Bit movement resolution Automatically accurate positioning ·Control mode:DMX512, RDM, Master/Slave, Auto ·DMX Channel:30/43 CH ·Protection Rating: IP65 ·Product Size:360x320x690mm, N.W.:29kg ·Carton Size:690x600x485mm, G.W.:33kg |
|
| Lamp color | Black | ||||
| Net weight | 29kg | Gross weight | 33kg | ||

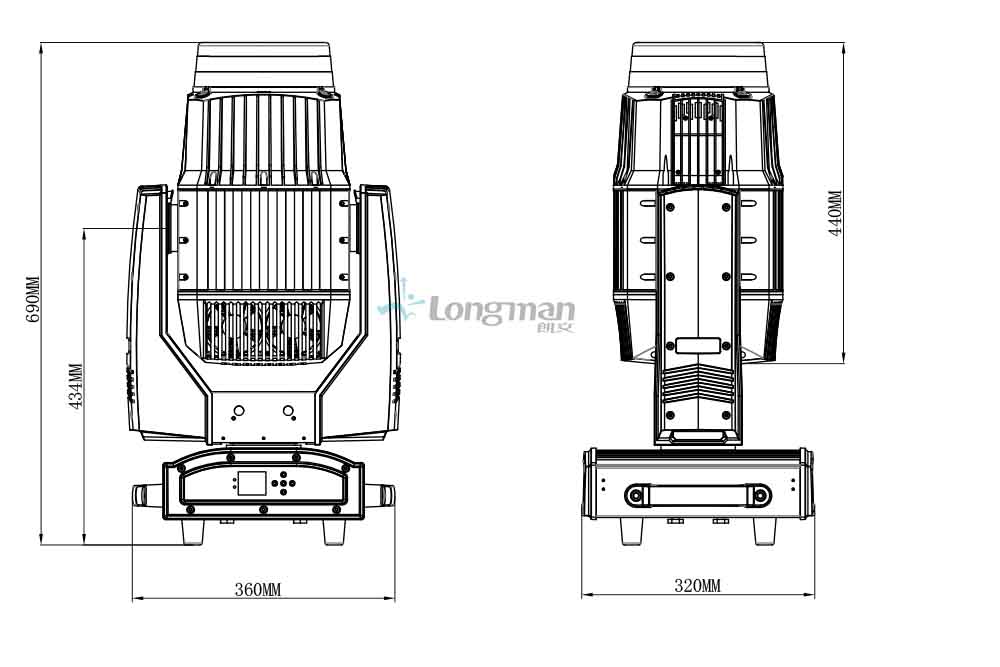

| Product size | 360x320x690mm | Package size | 690x600x485mm | ||

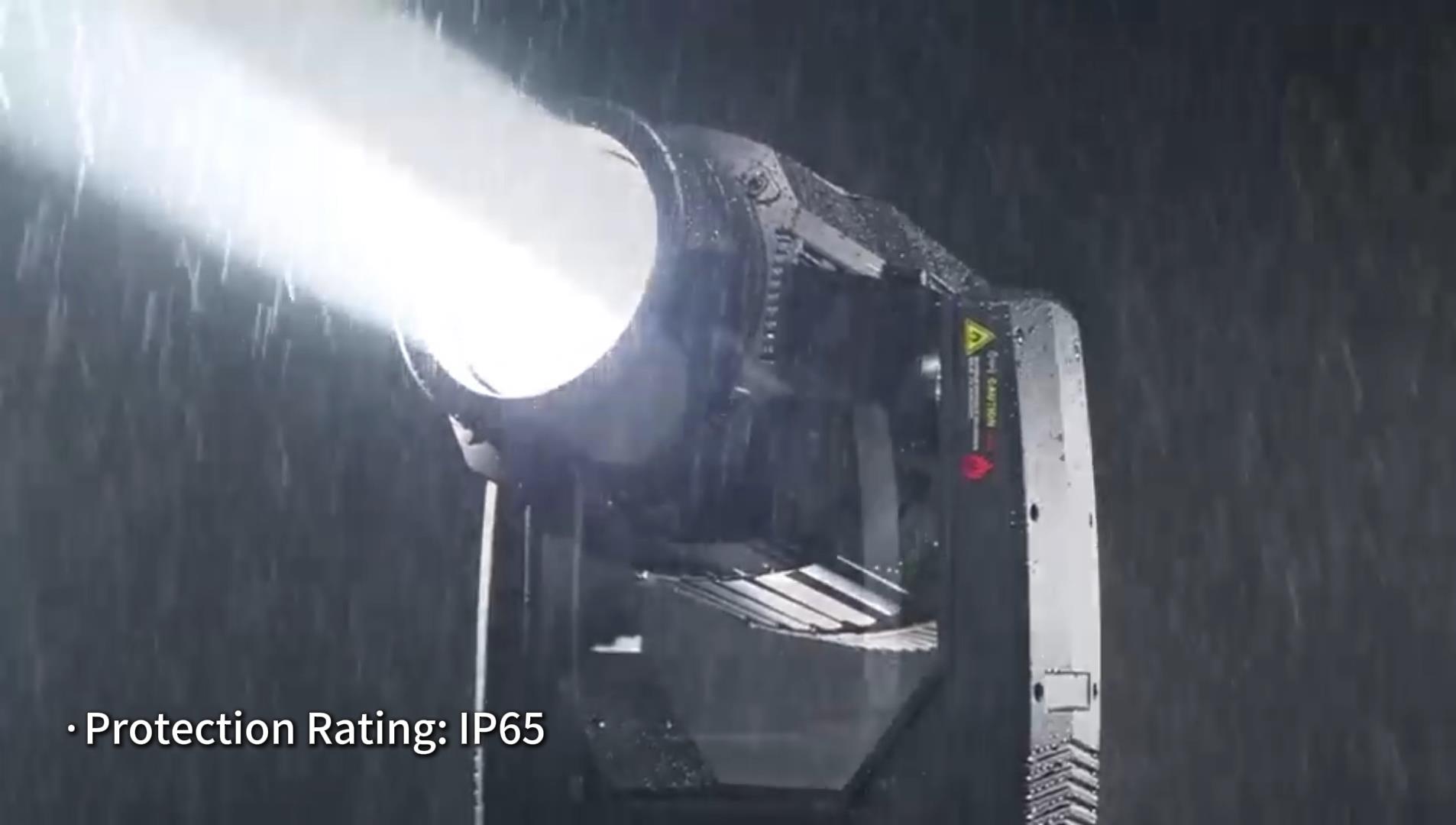

| Protection Rating | IP65 | Lamp material | Aluminum alloy, high temperature and ultraviolet resistant engineering plastics | ||
| Optical system | Effect system | ||||
| Light source | High Brightness 400W White LED | Color wheel | linear CMY color mixing，Variable CTO: 3200K-6800K; | ||

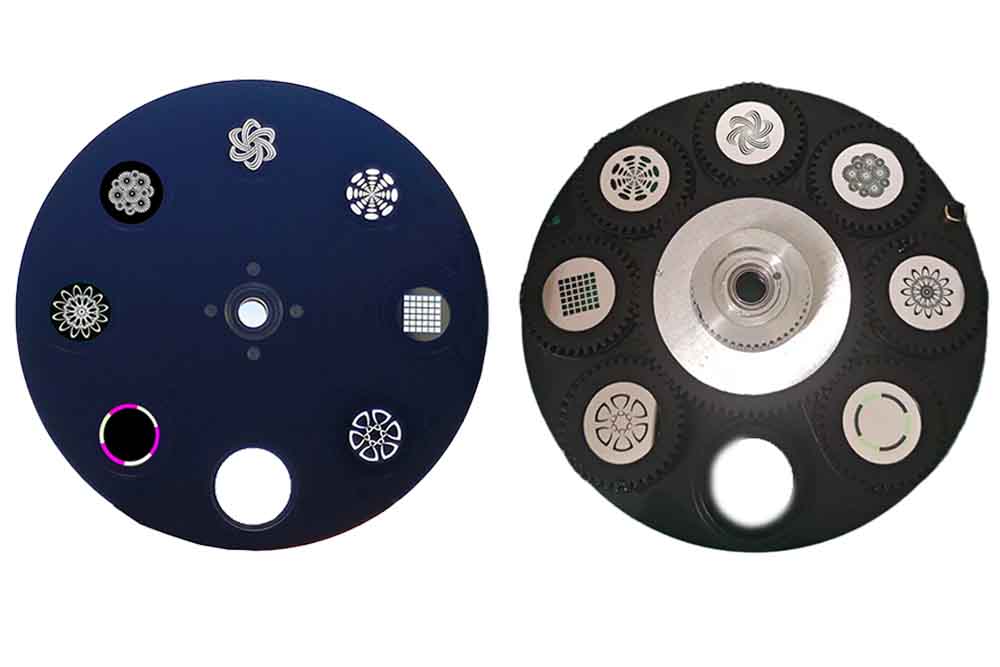

| Light source life | ≥20000 Hours | Gobo wheel | Rotating gobo wheel:7 interchangeable gobos+open, gobo shake(adjustable rotating speed and direction) Animation wheel:Water ripple wheel |
||
| Zoom | electronic linear zoom 4°-35° | Framing shutters | 4x fast and smooth framing shutters, each individually controllable; framing module can be rotated at 90°; | ||
| Diameter of lens | 132mm | Prism | 3-facet prism, adjustable rotating speed and both directions; | ||
| Color temperature | 7500K | Frost | 0-100% linear frost | ||
| Iris | 5%-100% linear adjustment | Strobe | 1-25Hz/s, adjustable speed | ||
| Dimmer | 0-100% linear electronic dimmer | Animation wheel | Water ripple wheel | ||
| Electrical connection | Control system | ||||
| Input voltage | AC 100V-240V, 50/60Hz | Movement | Pan: 540°, 16 Bit movement resolution;Tilt: 270°, 16 Bit movement resolution; Automatically accurate positioning |
||
| Whole lamp power | 600W | Communication design | DMX wired / wireless transmission, convenient and fast software upgrade through DMX data cable. | ||
| Signal connection | 3Core IP65 XLR I / O | Heat dissipation system | Copper tube + fan heat dissipation structure and temperature intelligent monitoring technology are adopted to automatically adjust the heat dissipation system and effectively control the lamp temperature. | ||

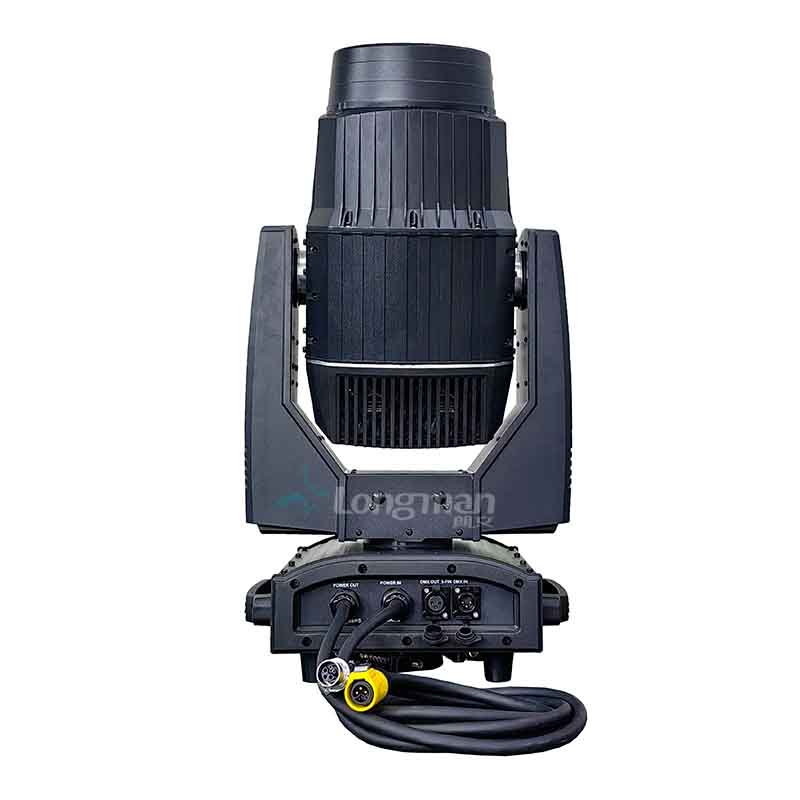

| Power connection | IP65 power head input | Control mode | DMX512, RDM, Sound, Master/Slave, Auto | ||

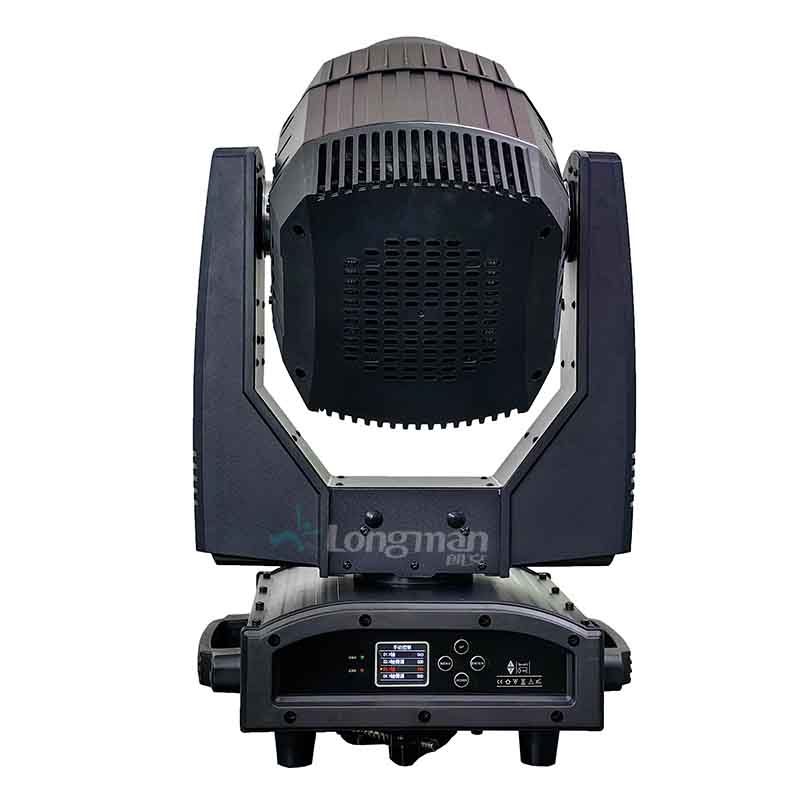

| Display | Lamps and lanterns can be queried, and the service time of bulbs is convenient for maintenance | Channel mode | 30/43CH | ||
 |
 |
 |
 |
