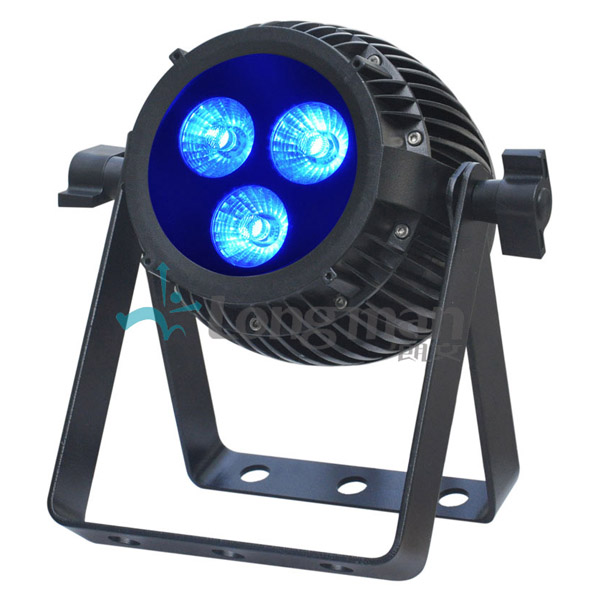

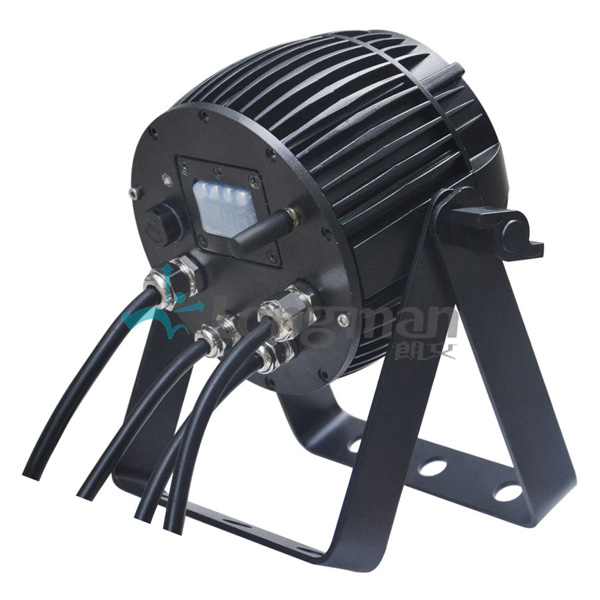

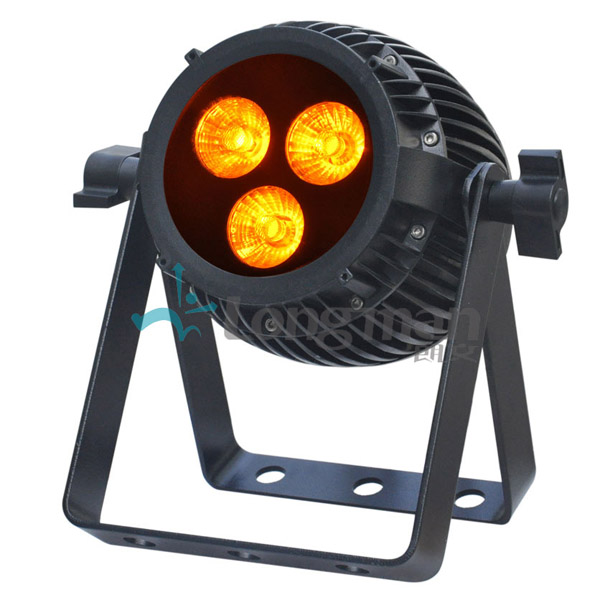

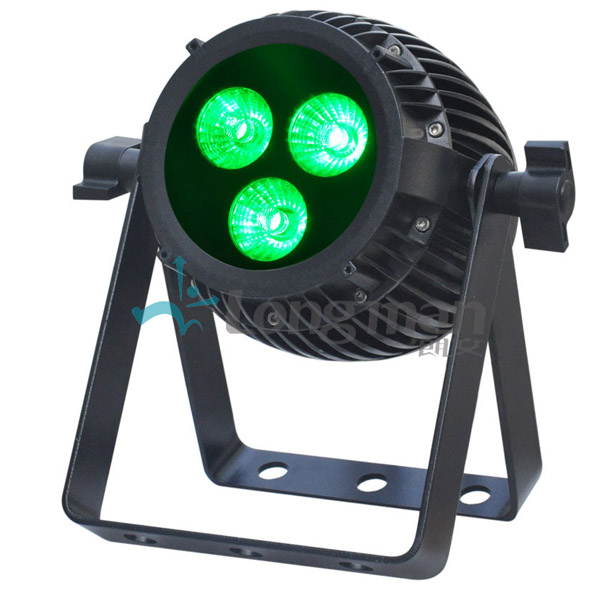

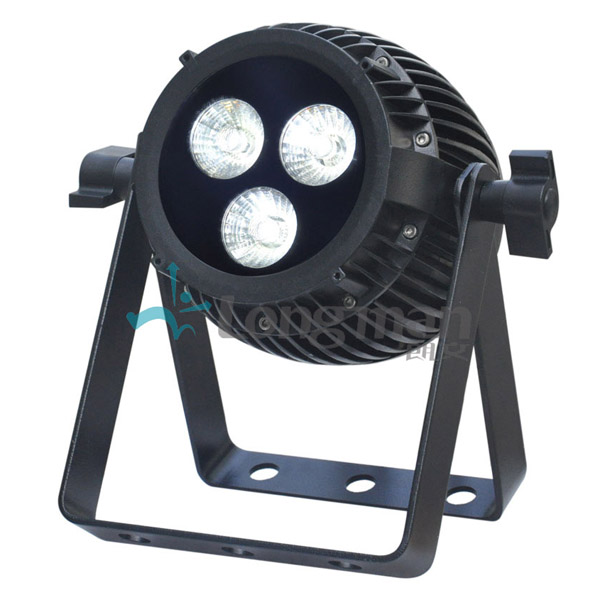

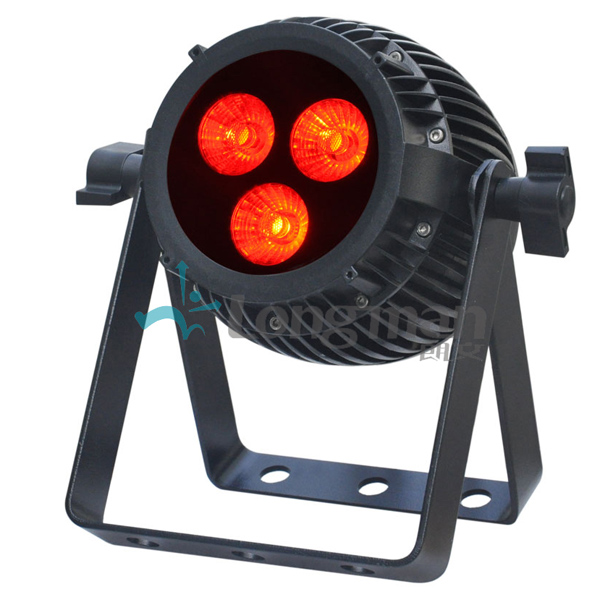

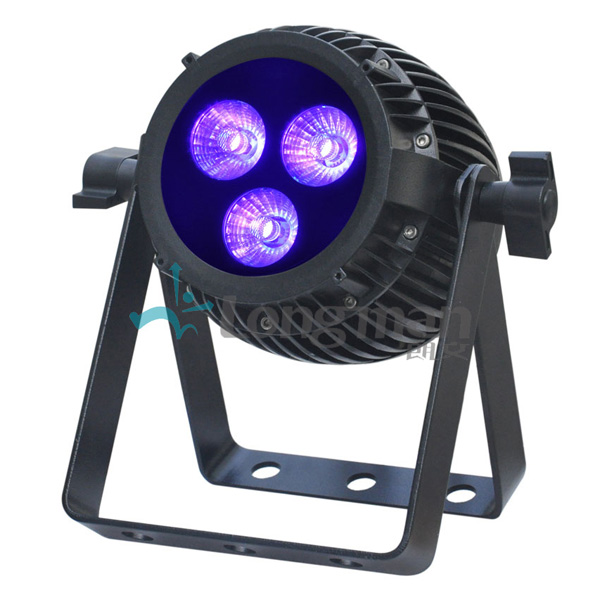

Bowerbird X3 RGBAW+UV oudoor stage light

Brief description：
1. 3PCS 14W Full RGBAWUV LED bulbs
2. 1220 lumens output
3. New appearance design patent, design idea is from Bowerbird
4. Wireless DMX solution and full chromaticity

Size: 103*181*207mm
Weight: 1KG, with 2mm thick double bracket

Inquiry

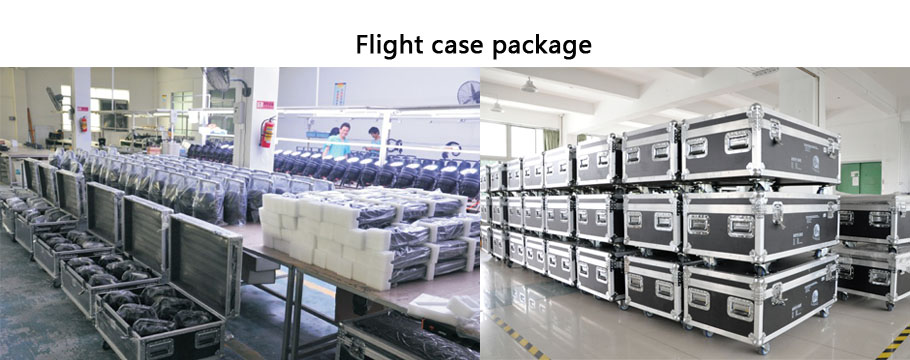

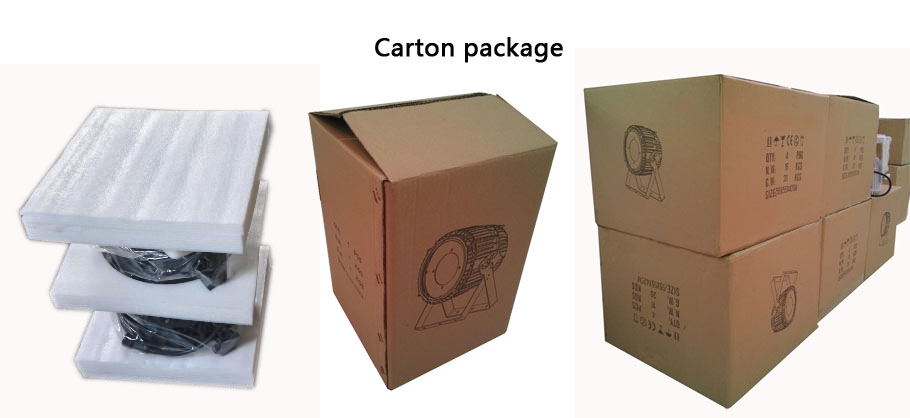

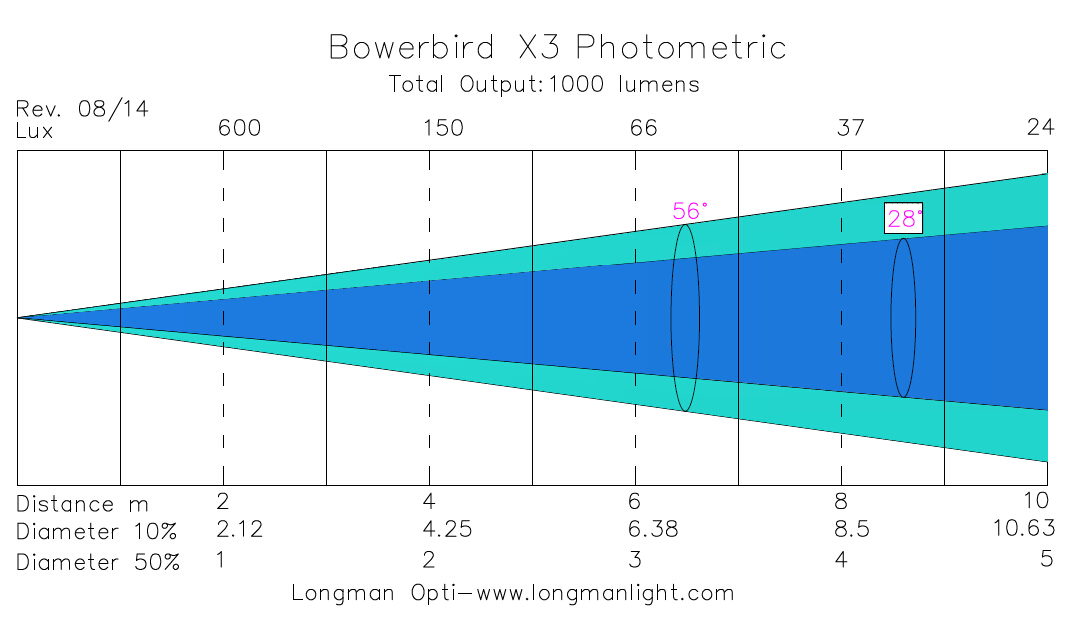

Pictures and video Specification Photometric Key part and Packaging

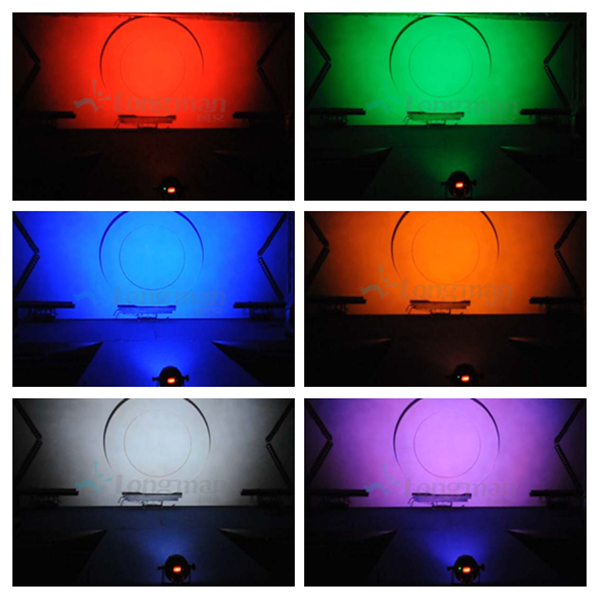

Bowerbird X3-outdoor LED par can stage effect

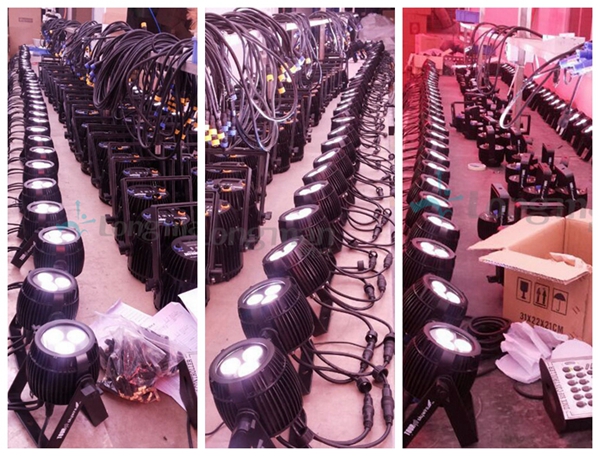

Bowerbird X3-outdoor LED par can production lines

Features:

Lamp appearance design idea is inspired by bowerbird, one beautiful bird.
Almost 1000 colorful lumens output, various light distribution as choices.
Good color mixing, SDC<0.005, stable color among all fixtures.
Whole lamp body fully used as heat sink, support heat dissipation 30W at 30℃ rise, with NTC overheat protection.
LED display could show DMX signal status, if no operations in 2 minutes, the screen would turn off.
RF-ID 7 independent wireless DMX universe to be used.
5 dimming curve including Dim4 theatre standard strict smooth dimming.
With waterproof air vent to balance pressure, get rid of moisture on internal side of glass.

Specification:

Voltage Input	AC220V 47-63Hz, PF>0.95, could be customized for DC24V
Rated Power	40W (32W 220V full load)
Luminaire Efficiency	41lm/W, 3PCS 14W Full RGBAWUV 500mA current, 1220 lumens
LED Color	R=625nm, G=525nm, B=460nm, A=590nm, W=6500K, UV=390nm，offer multi-Color mixing，SDC<0.005
Field Angle(10%)	standard 51°(4280 Cd on axis with LMTXL43HY), optional 37°
Control Signal	Meet E1.11 - 2004 USITT DMX512-A standard, able for PWM dimming constant voltage input
DMX Channels	LM-DMXA0 2.4GHz wireless, compatible with PAD PEN, 6CH, 7CH, 8CH, 10CH, 11CH
Dimming Curve	32 bit linear dimming, PWM>600Hz, flicker free
Housing Material	ADC12 die cast aluminum, matte black, support other colors and barn door
Safety	Appliance Class II, 3*1 mm VDE cable for electric power input, shielded cable for signal, both are daisy chain, flammability rating UL 94 V-1, IP code is IP65
Operate Temperature	-20~+45℃, board peak temperature 30℃
Certificates	Product passes CE, RoHS
Weight	1KG, with 2mm thick double bracket
Size	103181207 mm
