Parco Sharpy- IP65 osram ostar rgbw led Par Can

Brief description：
1. Osram Ostar 7 PCS 15W 4-in-1 FULL RGBW
2. 5760 lumens output
3. New lamp housing, pumpkin sharp design
4. 8 degree narrow beam

Size: 270*166*284 mm
Weight: 5.2kg

Inquiry

Pictures and video Specification Photometric User's document

Features:

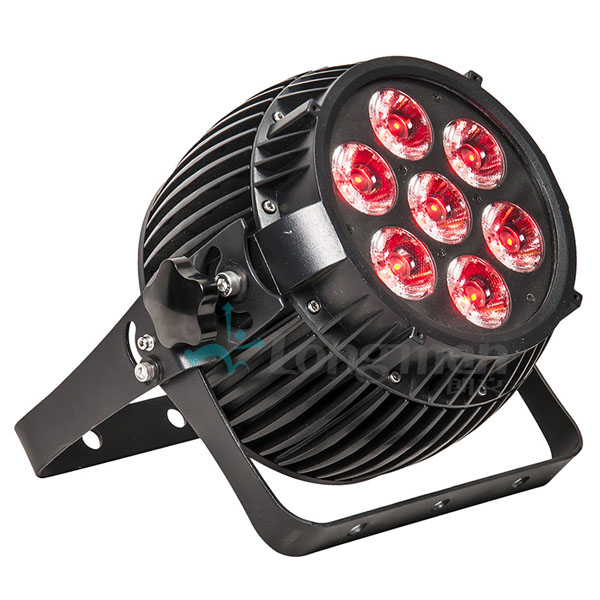

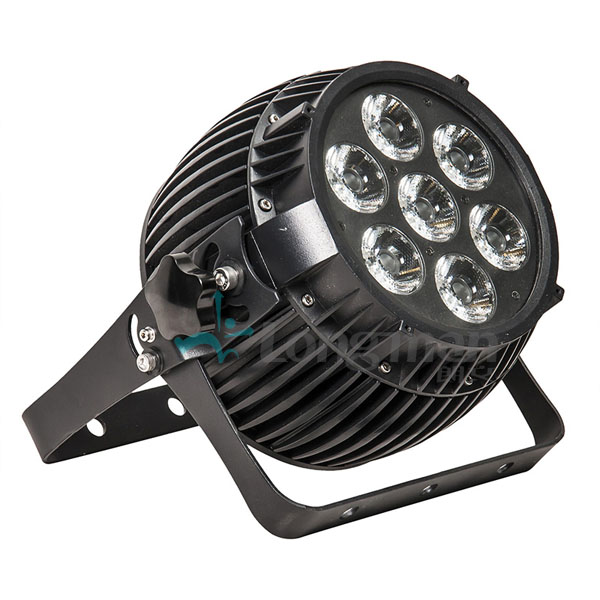

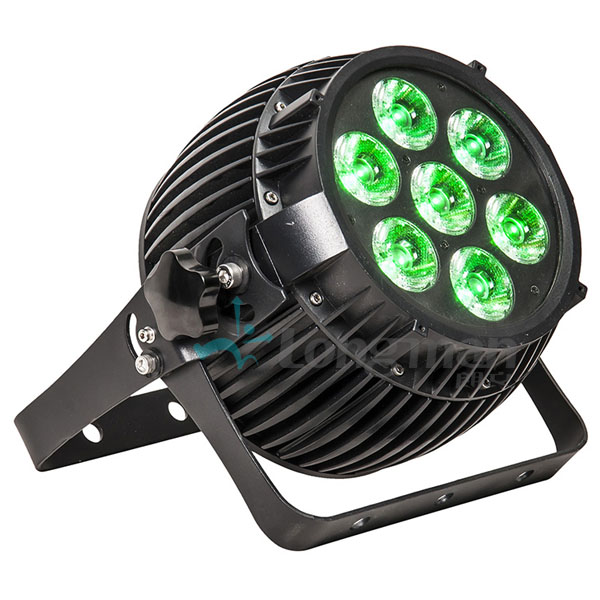

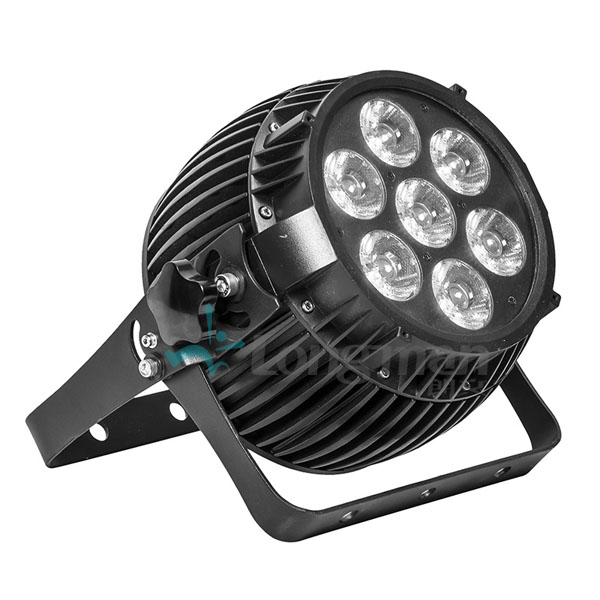

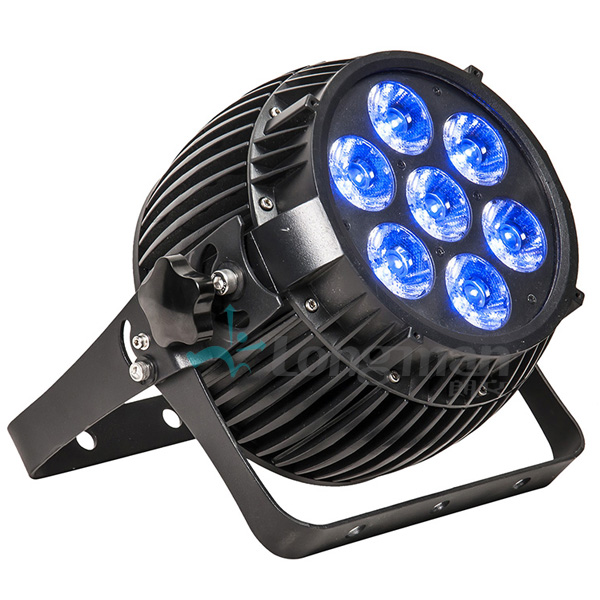

IP65 osram ostar rgbw led Par Can

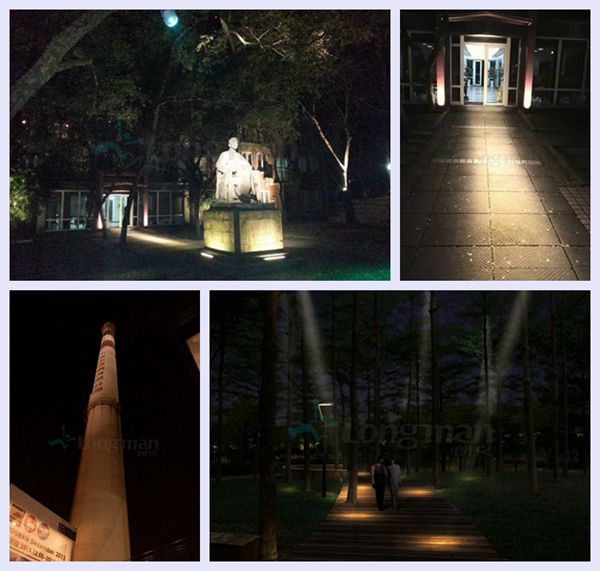

Outputs almost 6000 lumens full load, narrow beam suitable for stage, studio room, architecture.
Field angle (10% intensity) 18 degree, great color rendering.
New lamp housing of own design patent, pumpkin design appearance, expressing nature sense.
Whole fixture housing is fully used as heat sink, support 120 W heat dissipation with 35℃ temperature rise, built-in high temperature protection.

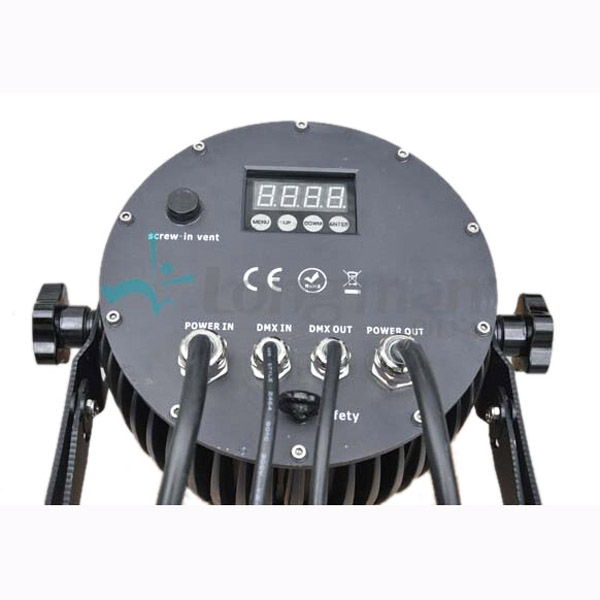

LED touch screen instead of easy broken buttons, if no operations during 2 minutes, the screen will turn off automatically.
LED display screen automatically shows DMX signal, offering dimming curve square law from DIM0 to DIM4.
No moisture on the lens because of air valve.

Specification:

Power input	AC 100-240VAC, 47-63 Hz
Output	28V DC, power factor>0.7
Rated Power	120W, typical consumption 106W/220V
Light Source	Osram Ostar 7 PCS 15W 4-in-1 FULL RGBW LED
Light Output	5760 lumens, luminaire efficiency 54.3 lm/W
Peak Intensity	236700 Cd
LED Color	R=625nm, G=525nm, B=465nm, A=590nm, White=6000K
Color rendering Index	Ra>90, R9>50
Color mixing index	Standard deviation of chromaticity SDC<0.005
Control signal	Meet E1.11 - 2004 USITT DMX512-A, 32 bit precise dimming, smooth in low DMX value dimming, no vision shock
Channels	3CH, 4CH, 5CH, 8CH, 9CH
Display	Touch operation, LED display show DMX status and auto turn off when no operations
Dimming	with Dim0-Dim4 5 dimming curve, smooth dimming
PWM frequency	>600Hz, flash rate endurance full load>12Hz full load/void load flash
Beam Angles Optional	8°, 15°, 18°, 45*15°, etc
Housing material	Die cast aluminum
Protection Rated	IP65
Cooling Method	Neutral heat dissipation, thermal protection, NTC overheat protection
Connectors and Cables	IP67 Male/Female for fixed application, IP65 Blue/Yellow connector without cables for rental
Soldering technology	180ºC reflow soldering, 15000 hours longevity for SMPS and main board
Housing color	Standard matte black, could customized pumpkin color
Accessories	Barn door, hook, safe cable, signal extension cable, power extension cable
Size	270166284 mm
Weight	5.2 Kg, with double yoke
Operating temperature	-20ºC - +55ºC
