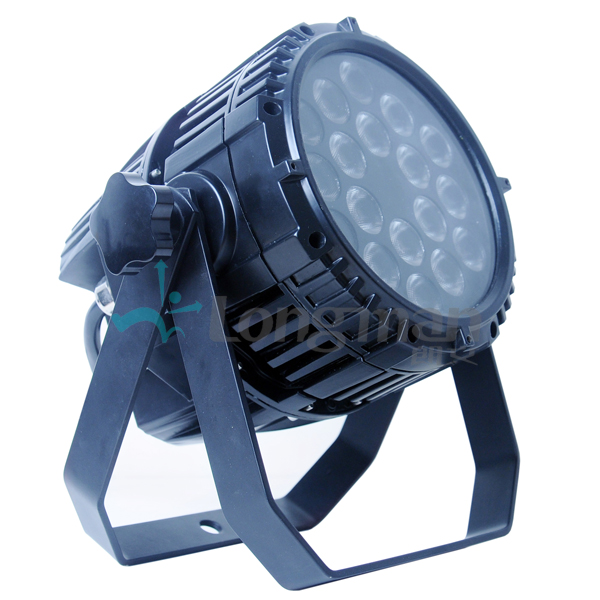

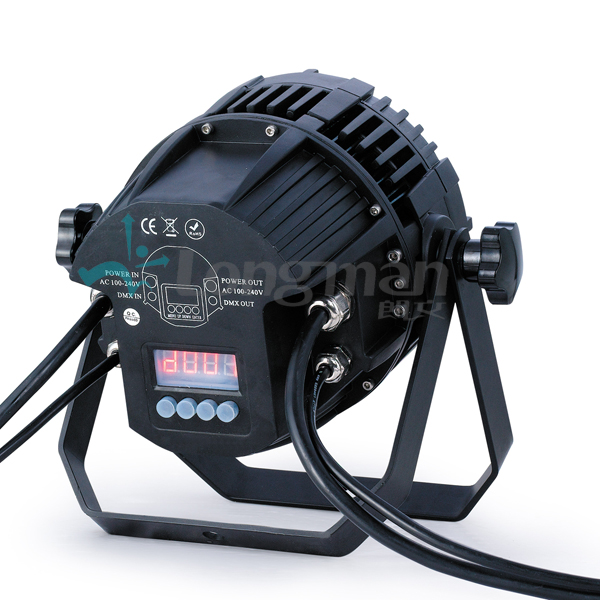

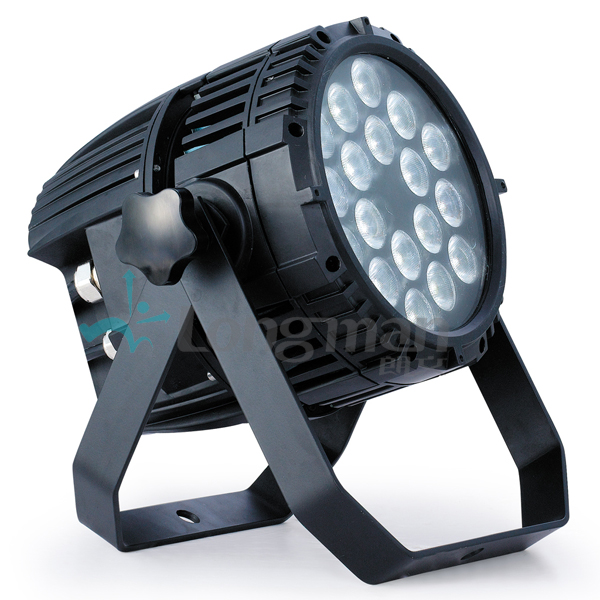

Parco Resun 400 Outdoor Stage Lighting

Brief description：
1. 18pcs 5W ACW LED
2. 6000 lumens Output
3. Independent circuit driving, each 550mA
4. Dim 4 Square law dimming from 0 to 100%

Size: 30*32*39 cm
Weight: 4.7KG

Inquiry

Pictures and video Specification Photometric

Features:

Reliable lighting instrument for multiple rental, performing better at landscape installation, could be customized to white lamp body.
6000 lumens output with multi-CCT to achieve metal-halide light rendering, 90% lumens within 10% intensity field angle.
DMX512 signal control, 4 buttons address setting for LED screen.
Dim 4 square law dimming for 0-100%, video flicker free, with strobe/gradual change/color change inbuilt programs.
Independent circuit driving, each 550mA, even ampere distribute.
NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high.
Field Angle standard 30°, could choose other angles, frosted piece and 60*1° optical filter piece.
Strong die cast body, more than 15000 hours longevity for SMPS and main board.
With waterproof air valve to balance pressure, get rid of moisture on glass.

Specification:

Voltage Input	AC 90-240V 47-63Hz, PF>0.9
Voltage Output	24V, SMPS longevity 15000 hours
Rated Power	92W(@220V 50Hz)
Luminaire Efficiency	>0.9, luminaire efficacy >66 lm/W
LED Lumens	18pcs*5W Full ACW LED, amber 1300lm, cold white 2600lm, warm white 2100lm, ACW mixing 6000lm
LED CCT	Amber=590nm, C=8000K, W=3300K, offer multi-CCT combination 1700-6500K, SDC<0.005, ACW=3010K, Ra>95

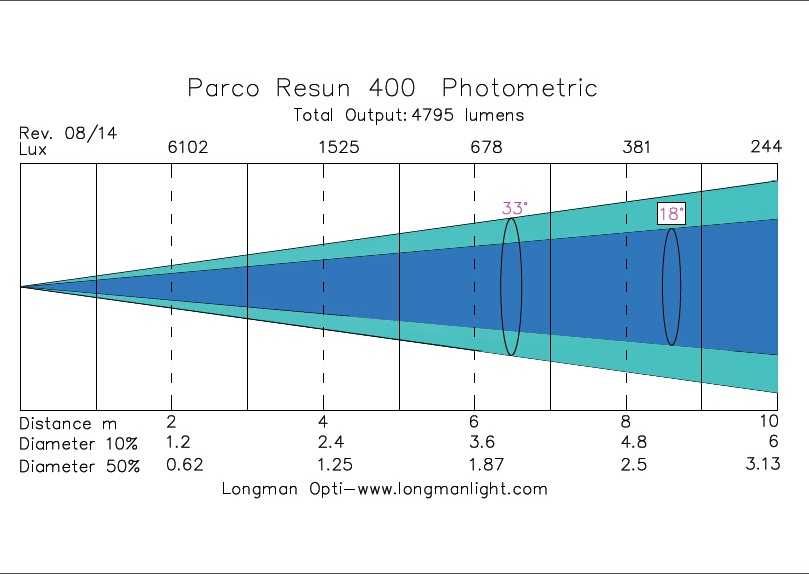

Field Angle(10%)	standard 30 °(12000Cd/Klm), 45°, 60°, 60*1°
Control Signal	DMX512, 32 bit dim 4 square law dimming, PWM>400 Hz, smooth dimming, no vision shock and flicker free
Control Mode	DMX1990/DMX512A/stand alone/master and slave
Chanel Option	3/4/5/6/8 CH all inside menu
Housing Material	Die cast aluminum ADC12, standard matte black, customized glossy white painting, barn door available
Safety	Appliance Class II, 3C 2.5mm2 VDE cable, flammability rating UL 94 V-1
Protection Rating	IP65
Operate Temperature	-20~+45℃, light board peak temperature 80℃
Certificate	Product pass CE, RoHS, SMPS pass CQC or UL60950, UL8750
Weight	4.7Kg, with two yokes 3mm thick supporting brackets
Size	303239 cm
