parco zoom 1215- Ostar LED linear beam zoom light

Brief description：
1.12PCS 15W Ostar RGBW LED
2.5360Lumens output
3.light beam shape between hexagon and round
4.Wide zoom range,9~89° DMX zoom,qualified for all stages rendering and rental service

size: 351*189*349mm
weight: 11.3KG

Inquiry

Pictures and video Specification

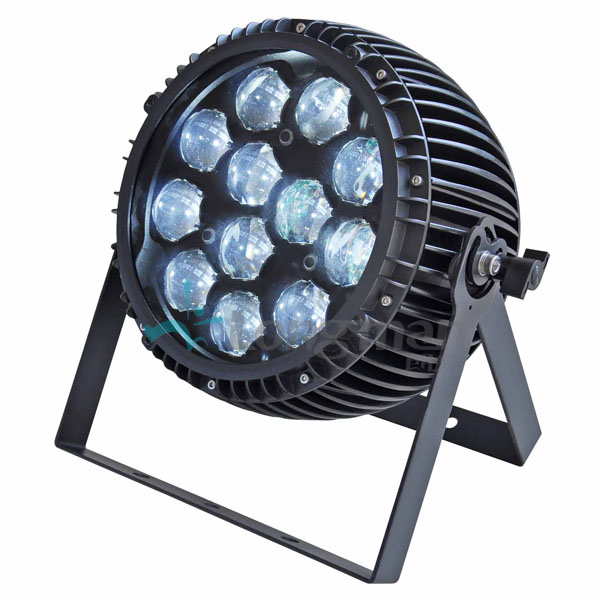

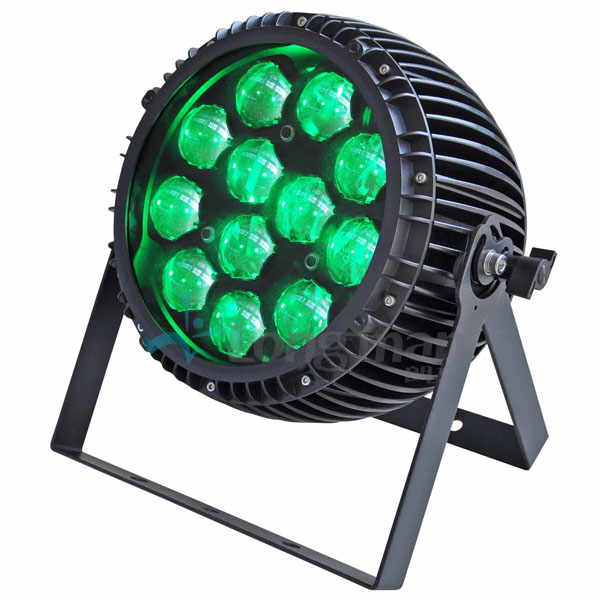

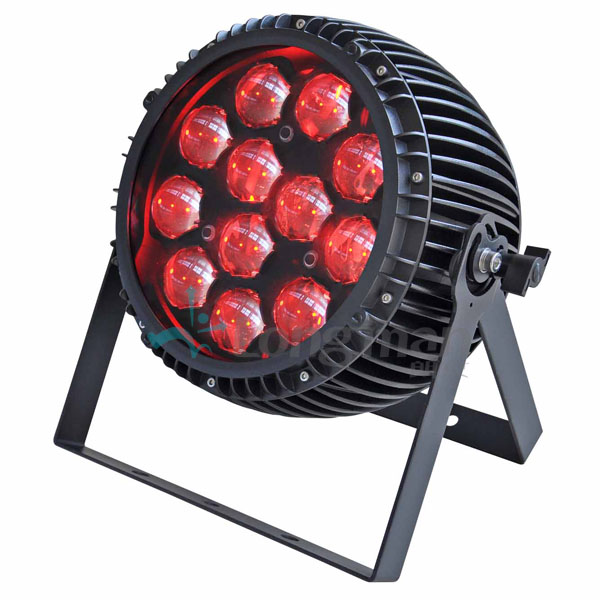

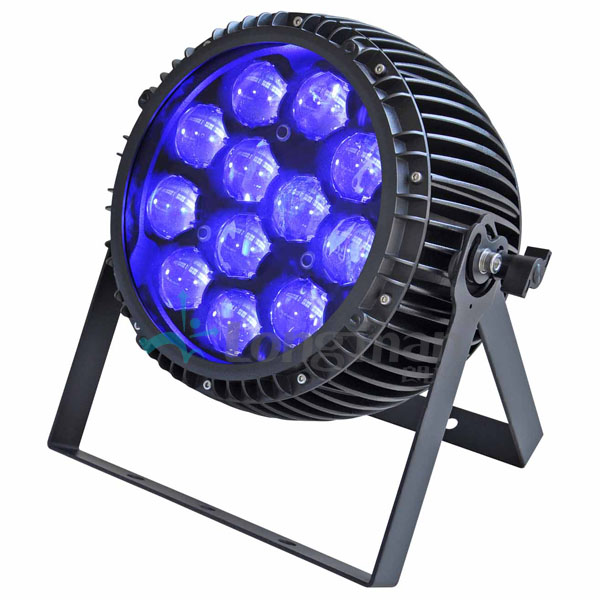

12PCS 15w Ostar LED light beam shape parco zoom light

Advantage:
Third generation optical desgin to have SMS technology and concaved lens zooming and still mix even
Wide zoom range, qualified for all stages rendering and rental service
Compatible with W-DMX and LM-DMXA1, choose on menu

Features:
1. light beam shape between hexagon and round, but even color mixing, SDC<0.005.
2. Linear Mechanical Focus, 9-89 degree zoomable, widely zoomable angle available
3. Linear dimming for 0-100%, PWM>1500Hz, flicker free.
4. Worldwide AC input, with Same Powcon Yellow/Black socket.
5. NTC function reduce the power output when LED working temperature is too high

Specification:

Power input	AC 100-240V 47-63Hz, PF>0.9
Output	DC24V, longevity 15000Hours
Rated Power	180W(171@220V 50Hz)
Luminaire Efficiency	>0.5, Light Effiacy >31.4lm/WLED
LED Lumens	12PCS Ostar LED, 1A driving, Full on Typ 5360Lumens(40Deg)

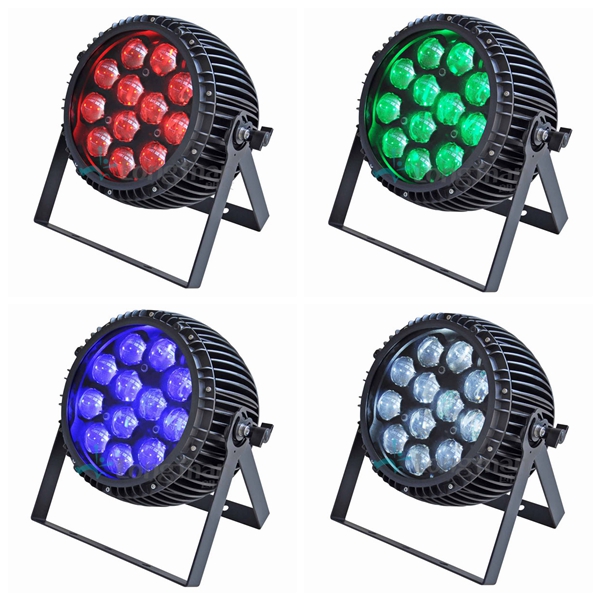

LED Color	R=625nm, G=525nm, B=460nm, W=6500K, good Color mixing, Standard Deveation of Chromaticity<0.005
Light Beam(10%)	9~89°mechanical zoomable, light beam shape between hexagon and round
Typical Intensity	9°(75040Cd), 89°(3752Cd)also beam between
DMX Channel	Standard 9CH, HSI and other optional on menu

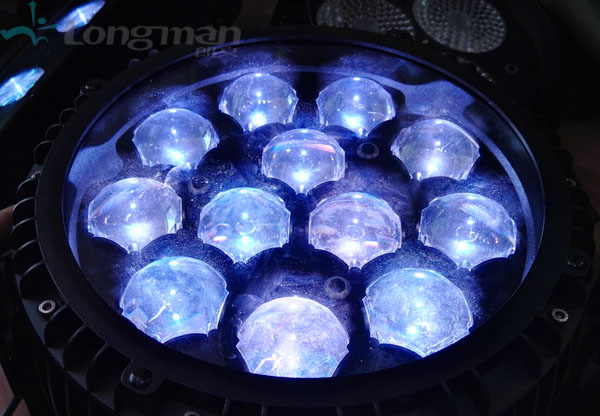

Zoom Moto	Designed with SMS technology and concaved lens, mechanical Linear zoom
Control signal	Meet E1.11 - 2004 USITT DMX512-A, Compatible with W-DMX and LM-DMXA1
Dimming Curve	with linear dimming curves, PWM>1500Hz, video flicker free
Display	LCD turn off back light after 2 minutes no operation
Housing material	ABS and QR235, standard Matte balck, with install bracket and fastdo screw
Strobe ability	could be 0-20 F.P.S with asynchronous stroboscopic effect

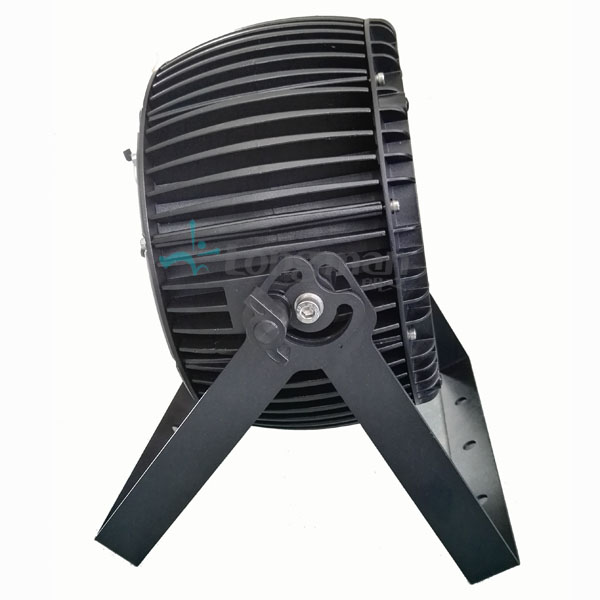

Heat sink	neutrally and Light board is protected not higher than 65ºC
Housing material	ABS and QR235, standard Matte balck, with install bracket and fastdo screw
Soldering technology	180ºCReflow Soldering, 15000 hours Longevity for MCU mainboard, Moto board

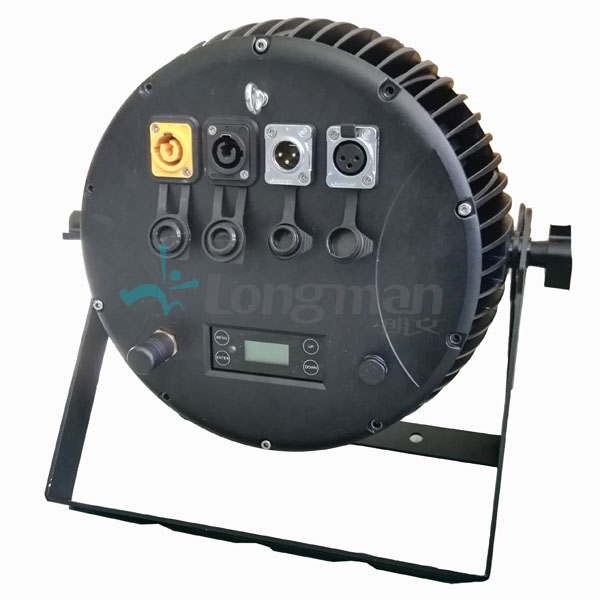

Conectors	Same Powercon Yellow/Black soucket, 3XLR/5XLR IP Rated base
Safty	Class II, Endure 5ms 1.5KV shock, Insulated Resistance＞２MΩ Flame Rating V-1, Protect Rated IP65
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Weight	11.3KG
size	351189349mm
Operating temperature	-20~+45ºC
