Parco B12- outdoor waterproof led par light

Brief description：
1. 12 PCS 5w of CREE XP-E2 or XPG LED bulbs
2. 4200 lumens output
3. New lamp body of pumpkin design
4. Beam Angle standard 3.6°

Size: 270*166*284 mm
weight: 5.2kg

Features:

Pumpkin appearance.
Touch LED display, can't affected by ultraviolet lights.
LED display show DMX status, 2 minutes no operation no display.
Cree XP-E2 or XPG LED, 4200 lumens output, could replace any 75 Watt traditional metal-halide lamp one by one.
Beam Angle standard 3.6°, could choose other angles, and also barn door.
Able to wash tall building like chimney by 63Lux at 100M on axis, also offer perfect light beam with fog machine.
Could make 2 mixing color to offer variable CCT.
Dim 4 Square law dimming for 0-100%, video flicker free.
NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high.
With waterproof air valve to balance pressure, no moisture on glass.

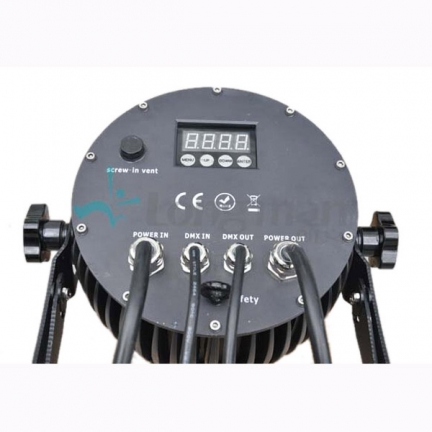

LED display board shows DMX signal for the convenience of installation and testing.

Specification:

Power Input	AC 100-240V, 47-63 Hz, output 48V DC, power factor>0.7
Rated Power	60W, typical consumption 45.6W/220V
Light Source	12 PCS of CREE XP-E2 or XPG LED, drive current for each chip 1000mA
Light Output	4200 lumens, luminaire efficiency 92.1 lm/W
Beam Angles(50%)	Standard 120*10°or 3.6°(peak intensity 652050 Cd)
LED Color	3000, 4000K, 5500K
Color Rendering Index	Ra>90, R9>50
Color Mixing Index	Standard deviation of Chromaticity SDC<0.005
Control Signal	Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit Arm MCU
Control	Master/Slave, Dim 4 smooth in low DMX value dimming, no vision shock
PWM Frequency	>400Hz flicker free, full load flash rate>12Hz, full load/void load flash
Housing Material	Die cast aluminum, protection rate IP65
Housing Color	Standard matte black or pumpkin color(PANTONE 150U)
Cooling Method	Natural cooling, thermal protection: NTC overheat protection balance at light board 80℃
Connectors and Cables	IP67 Male/Female connectors, IP65 Blue/Yellow connector without cables for rental
Safety	Appliance Class II, 3* 2.5mm 2 VDE cables, Flammability rating UL 94 V-1, IP code IP65
Accessories	Barn door, hook, safety cable, signal extension cable, power extension cable
Soldering Technology	180℃ reflow soldering, at least 15000 hours longevity for SMPS and main board
Size	LWH=270166284 mm
Weight	5.2 Kg, with two yokes
Operating Temperature	-20ºC - +55ºC
Certificates	Product passes CE, Rohs, SMPS pass CQC or UL60950, UL8750
