Lorentz Transform 19 Sharpy Beam Moving Head Light

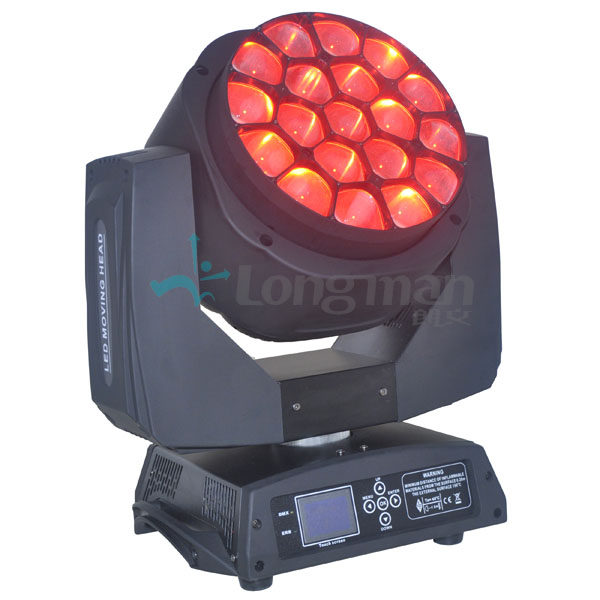

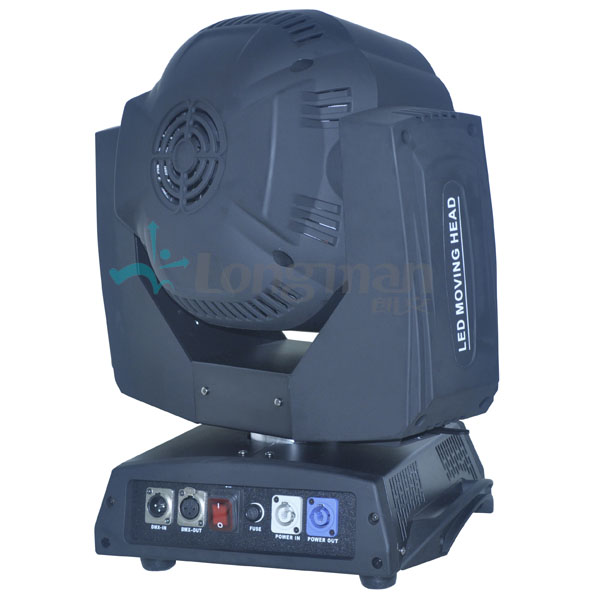

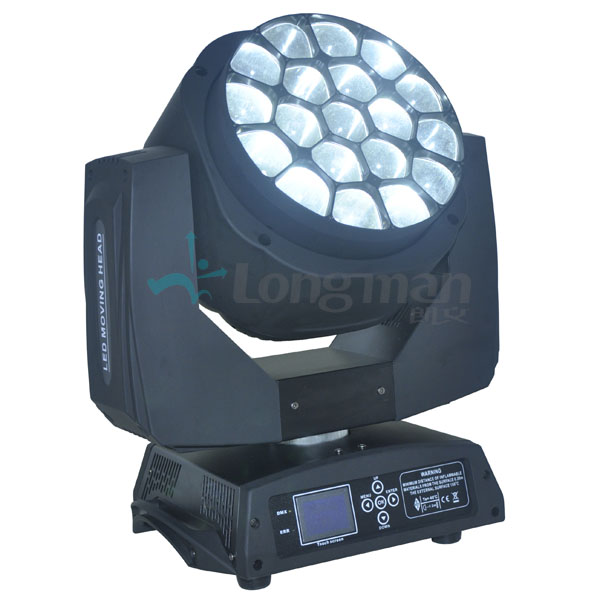

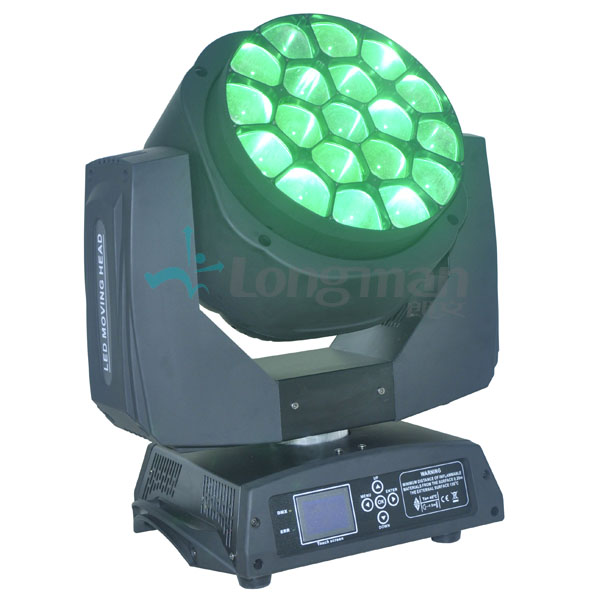

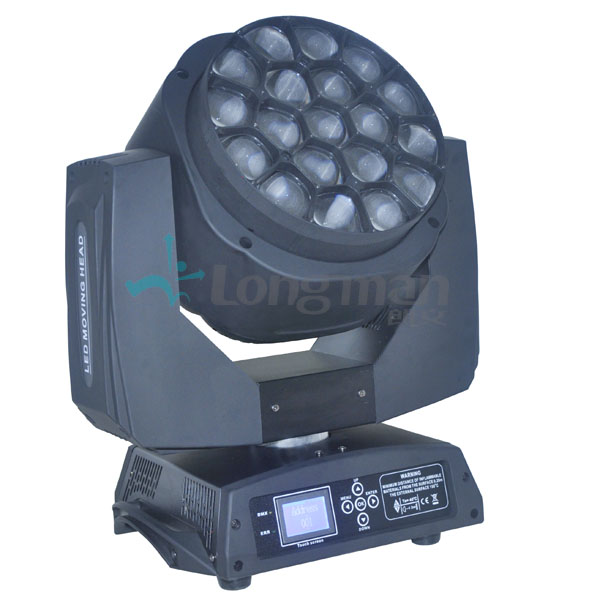

Lorentz Transform 19 Sharpy Beam Moving Head Light

Brief description:
Input Voltage: AC 100-240V 47-63Hz
Rated Power: 350W (316@220V 50Hz)
Light source: 19pcs 15W Ostar RGBW LED
Light Beam(1%): 8~56°mechanical zoomable
Control: DMX Standard 21CH, 35/78/92/97
IP rating: IP20

Features:
1.Wide range zoom from 8°-56° High efficiency optical system
2. Super bright light output Max 8980 lumens output
3. Multiple-effects, wash effect, beam effect, multiple-flower , Digital Wash-Beam Framing effect, Front Lens directional Rotatio

Inquiry
Lorentz Transform 19 moving head light effect
Lorentz Transform 19 moving head stage effects

Features:
  • 19 pcs 15W Ostar RGBW LED.
  • Light beam shape is between hexagon and round, even color mixing,  SDC<0.005.
  • Linear mechanical focus, 8-56 degree zoom, could also be flower sharp beam.
  • Field angle 8 degree, 8660 Lux at 10 meter, wider zoomable angle available.
  • Linear dimming from 0-100%, PWM>1500Hz, flicker free.
  • LCD display could be set upside down for the convenience of hanging.
  • Worldwide AC input, with Powercon blue/white socket.
  • NTC function reduce the power output when LED working temperature is too high.
  • Reset precisely to right position, multiple fixtures' synchronous working is fine.
Specification:
Input Voltage AC 100-240V 47-63Hz, power factor>0.7
Output Voltage DC 24V
Rated Power 350W (316@220V 50Hz)
Luminaire Efficiency >0.7, luminaire efficacy >32.3 lm/W LED
LED Lumens 19pcs 15W Ostar LED, 1A driving, 19 pixels, full load 8980 lumens.
LED Color R=625nm, G=525nm, B=460nm, W=6500K, good color mixing, standard deviation of chromaticity<0.005.
Light Beam(1%) 8~56°mechanical zoomable, light beam shape between hexagon and round
Typical Intensity 8°(866053Cd), 30°(60570Cd), 56°(22790Cd)
Control Signal Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit precise dimming, smooth in low DMX value dimming, no vision shock
DMX Channels Standard 21CH, 35/78/92/97 are on menu as options.
XY Moto Pan 540°, pan fine 2.1/255, tilt 270°, tilt fine 1.0/255
Zoom Motor Designed with SMS technology and concaved lens, mechanical Linear zoom
Infinite Motor Blossom light effect depend on infinite rotate motor to have 19 pcs independent light beam.
Dimming Linear dimming curves, PWM>1500Hz, video flicker free
Strobe Ability Could be 0-20 F.P.S with asynchronous stroboscopic effect
Display LCD could be set upside down, turn off light after 2 minutes if no operations
Heat Sink Use fan fins to conduct and cool heat, low noise fans
Housing Material ABS and QR235, standard matte black, with brackets and screws.
Soldering Technology 180℃ reflow soldering, 15000 hours longevity for MCU motherboard and motor board
Connectors Powercon blue socket and 10A fuse, 3XLR/5XLR.
Safety Appliance Class II, endure 5ms 1.5KV shock, insulated resistance > 2MΩ flammability rating UL 94 V-1, protect rating IP20.
Operate Temperature -20~+45℃, light board peak temperature 80℃ with NTC protection
Certificate Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Size 42*26*49 cm
Weight 15KG


Features:
• 19 pcs 15W Ostar RGBW LED, super led moving head light source.
• Light beam shape is between hexagon and round, even color mixing,   SDC<0.005.
• Linear mechanical focus, .wide range zoom from 8°-56° High efficiency optical system, could also be flower •sharp beam of professional lighting type.
• Field angle 8 degree, 8660 Lux at 10 meter, wider zoomable angle available.
• Linear dimming from 0-100%, PWM>1500Hz, flicker free.
• LCD display could be set upside down for the convenience of hanging.
• Worldwide AC input, with Powercon blue/white socket.
• NTC function reduce the power output when LED working temperature is too high.
• Reset precisely to right position, multiple fixtures' synchronous working is fine.
• Optical System: Boasts a unique optical system, ensuring precise stage light control and exceptional quality in every mode.


The Longman Lorentz Transform 19 is a cutting-edge LED entertainment luminaire that redefines versatility and performance in stage lighting. It is a high performance wash light, a breathtaking beam light, and a creator of completely new spectacular visual effects. Its unparalleled versatility makes it an extremely interesting creative tool for all lighting designers.

The Lorentz Transform 19 is first and foremost an excellent quality wash light. It is able to wash surfaces with colors at any distance, making the most of its light source. It is brighter than almost other LED stage wash lights with the same rated power, thanks to its special optical system with wonderful lumen/watt ratio, designed and built by Longman. The zoom ranges from 8° to 56° and it is therefore suitable both for environments with low ceilings (small theatres and TV studios, for example), where large angles are extremely useful, and for shows in arenas or large environments, where a tight zoom is perfect.


Application
The Lorentsz Transform 19 moving head light is ideal for:
• Concerts and Live Events: Delivering dynamic and immersive lighting experiences.
• Theaters: Providing versatile lighting solutions for stage productions.
• Events: Adding impactful visual elements to various events.
• Architectural Lighting: Creating unique and captivating lighting designs for architectural spaces.


In summary, the stage lighting Lorentsz Transform 19 stands at the forefront of LED luminaire technology, offering a perfect blend of innovation, versatility, and performance. With its advanced features and wide-ranging applications, it is a reliable choice for professionals seeking exceptional lighting solutions.

> Beam moving head Lorentz Transform 19-page Download
